Relays Usage
R7 Cooling Fan 2
R8 Windshield Wiper
R9 Air Pump
R10 Windshield Wiper High
R11 Air Conditioning
R12 Air Solenoid
Rear Underseat Fuse Block
The rear fuse block is located under the rear seat
on the driver’s side. The rear seat cushion
must be removed to access the rear fuse block.
Removing the Rear Seat Cushion
Notice: If you touch the exposed wires with
the metal on the seat cushion, you could cause
a short that could damage the battery and or
wires. Avoid contact between the rear seat and
the fuse center whenever you remove or
reinstall the rear seat. Do not remove covers
from any of the covered parts, and do not store
anything under the seats.
To remove the rear seat cushion, do the following:
1. Pull up on the front of the cushion to release
the front hooks.
2. Pull the cushion up and out toward the front
of the vehicle.

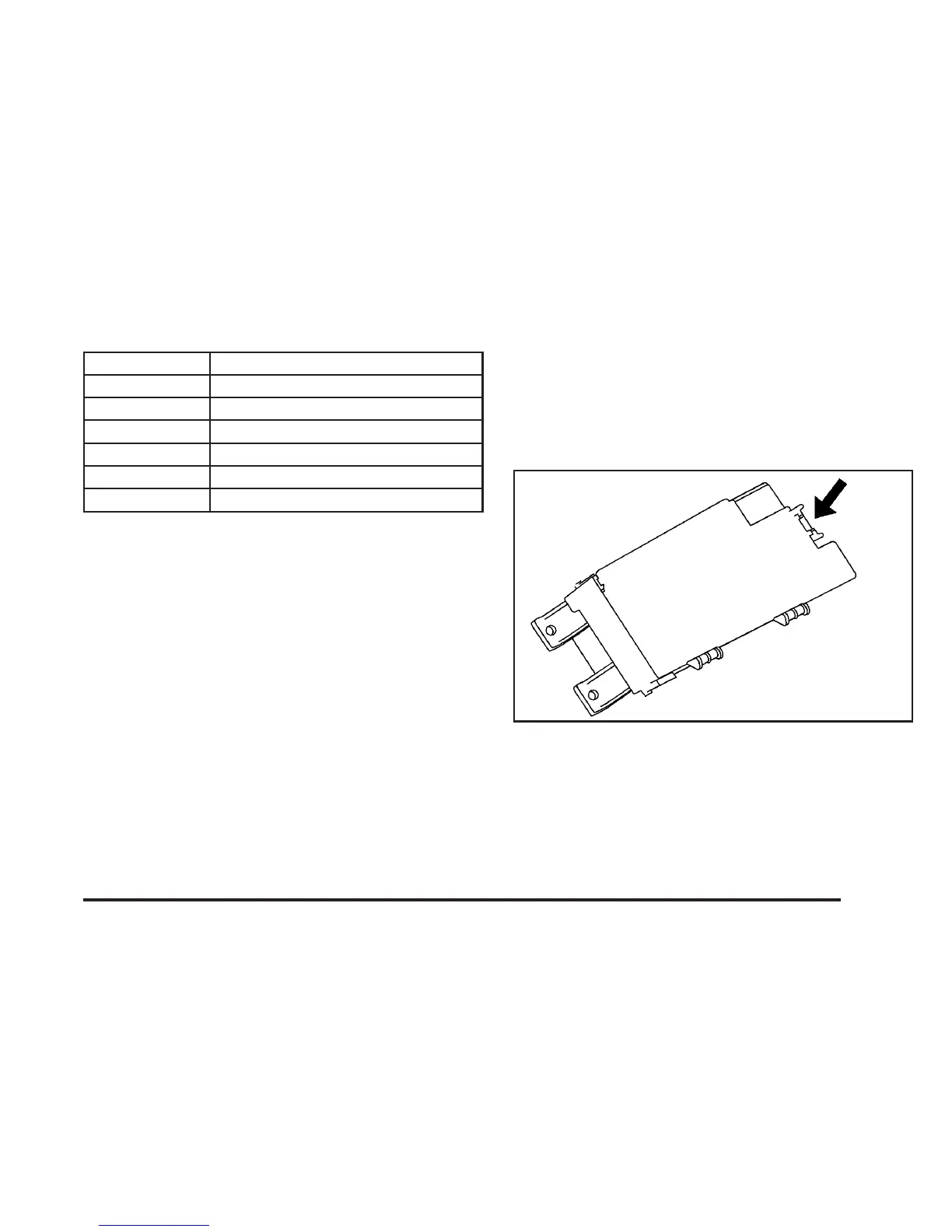

To access the fuse block, pull out and lift up on
the cover latch, located at the end of the fuse
block, near the battery cable.
447
