Vehicle Care 275
Number Usage
68 Rear seat
entertainment
display
69 RESS coolant pump
70 –
71 ABS valve
72 –
73 –
Instrument Panel Fuse
Block
The instrument panel fuse block is
behind the driver side instrument
panel storage compartment.

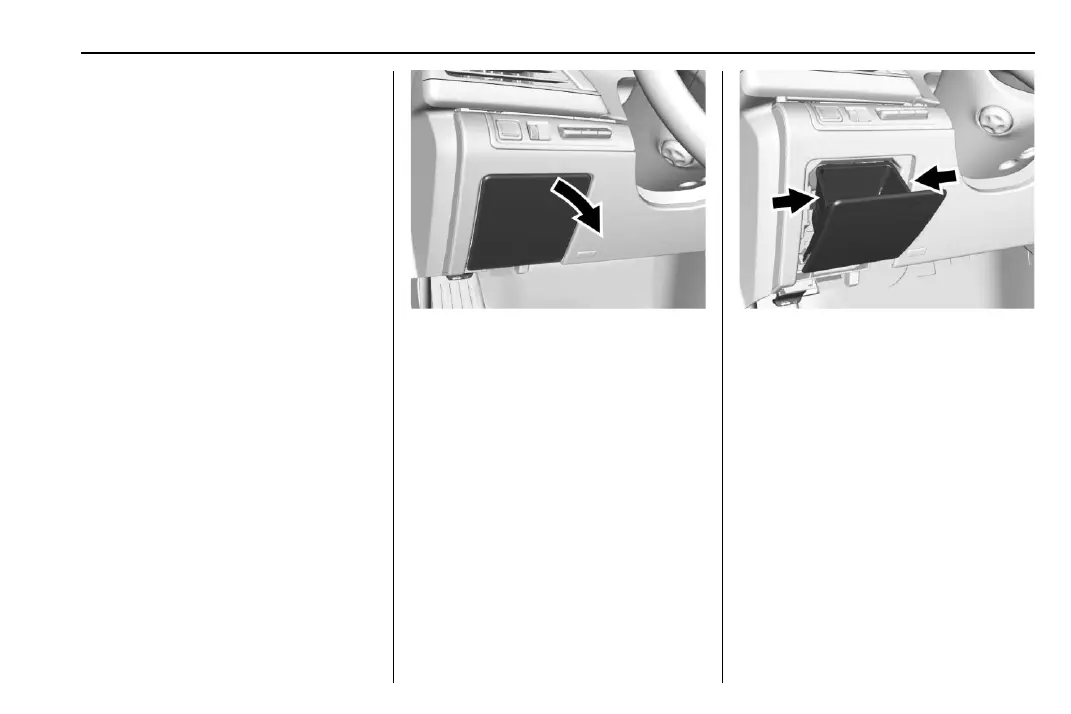

The storage compartment has a
press to open latch. To access the
fuses, open the compartment by
pressing and releasing near the top
center square.
Apply pressure to the two retaining
tabs on the sides of the
compartment, until the two retaining
tabs clear the sides of the
instrument panel. Allow the
compartment to move downward,
and out of the way.
To reinstall the compartment,
reverse the steps.
The vehicle may not be equipped
with all of the fuses and relays
shown.
