VEHICLE CARE 407

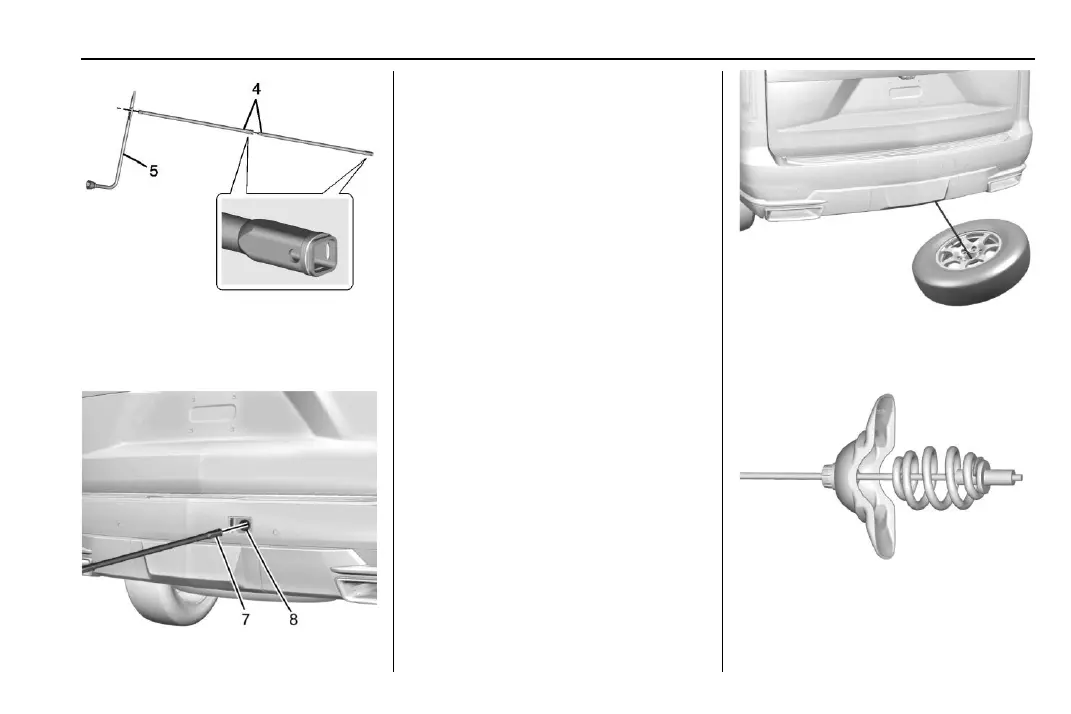

3. Assemble the jack handle
extensions (4) and wheel
wrench (5), as shown.
4. Insert the open end of the
extension (7) through the hole in
the rear bumper (8) (hoist shaft
access hole).
Be sure the hoist end of the
extension (7) connects to the hoist
shaft. The ribbed square end of the
extension is used to lower the
spare tire.
5. Turn the wheel wrench
counterclockwise to lower the
spare tire to the ground. Continue
to turn the wheel wrench until the
spare tire can be pulled out from
under the vehicle.
6. Pull the spare tire out from under
the vehicle.
7. Tilt the tire toward the vehicle with
some slack in the cable to access
the tire/wheel retainer.
Tilt the retainer and pull it and the
cable and spring through the
center of the wheel.
8. Put the spare tire near the flat tire.
