406 VEHICLE CARE

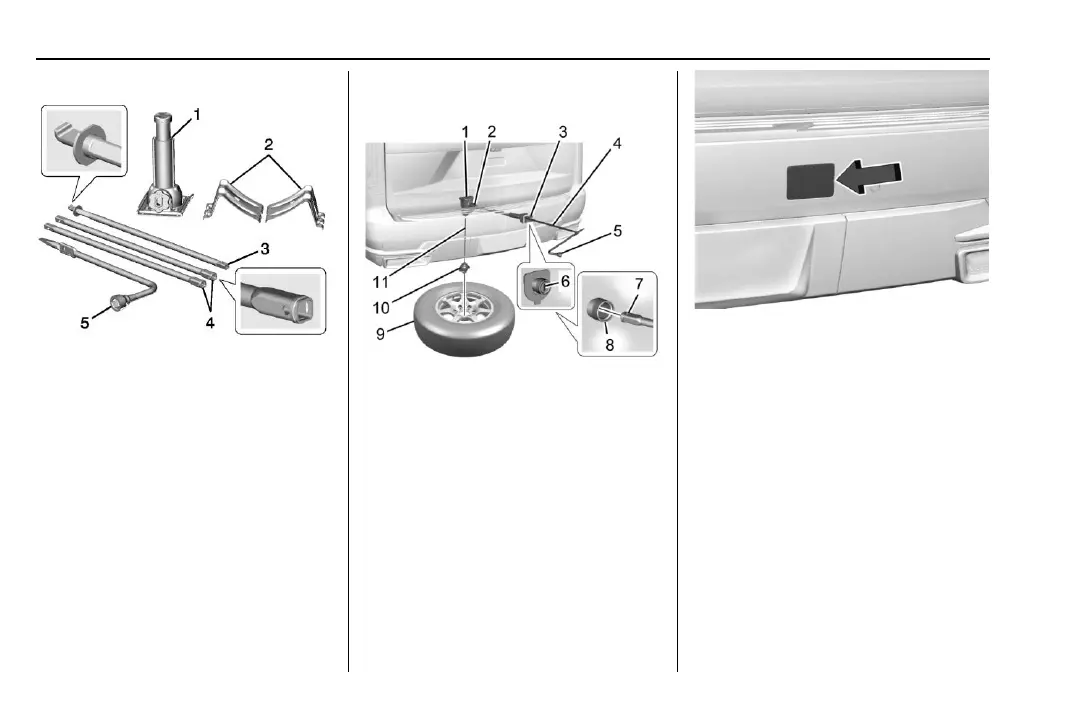

Use the following tools:
1. Jack
2. Wheel Blocks
3. Jack Handle
4. Jack Handle Extensions
5. Wheel Wrench
To access the spare tire, refer to the
following graphics and instructions:
1. Hoist Assembly
2. Hoist Shaft
3. Hoist Shaft Access Cover/Hole
4. Jack Handle Extension
5. Wheel Wrench
6. Spare Tire Lock
7. Hoist End of Extension Tool
8. Hoist Shaft Access Hole
9. Spare Tire (Valve Stem
Pointed Up)
10.Tire/Wheel Retainer
11.Hoist Cable
1. Open the hoist shaft access
cover (3) on the bumper to access
the spare tire lock (6).
2. To remove the spare tire lock (6),
insert the mechanical key, turn it
clockwise and then pull it
straight out.
