316 VEHICLE CARE

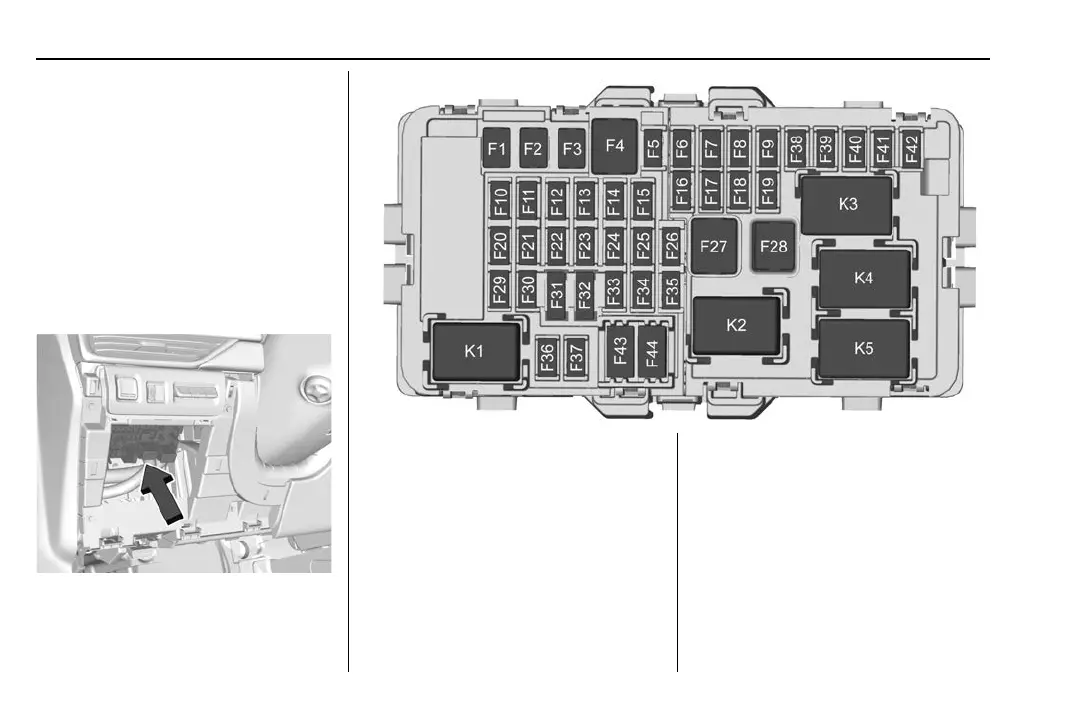

the door. To access the fuses, remove
the panel, starting at the top. Once
clips are disengaged, the tabs along
the bottom of the door can be
disengaged from the instrument panel
to remove the door.
To reinstall the door, place the bottom
tabs into the slots, and rotate the door
into position, engaging the clips.
The vehicle may not be equipped with
all of the fuses, relays, and features
shown.
Fuses Usage
F1 WNDW LT – Left Power
Window
F2 WNDW RT – Right Power
Window
F3 -
F4 DC-DC BAT 2/1 – Direct
Current to Direct Current
Converter 2
Fuses Usage
F5 APO CARGO – Auxiliary
Power Outlet – Cargo
F6 HTD SEAT BATT 1 –
Heated Seat Batter y 1
F7 HTD SEAT BATT 2 –
Heated Seat Batter y 2
