Cal-Royal CRCODE-204 - Mark and Drill Door; To Change Handing; Change Lever Handing

6605 Flotilla St., Commerce, CA 90040
Tel (323) 888-6601 Fax (323) 888-6699
www.cal-royal.com
To Change HandingTo C
h
ange Han
d
ing

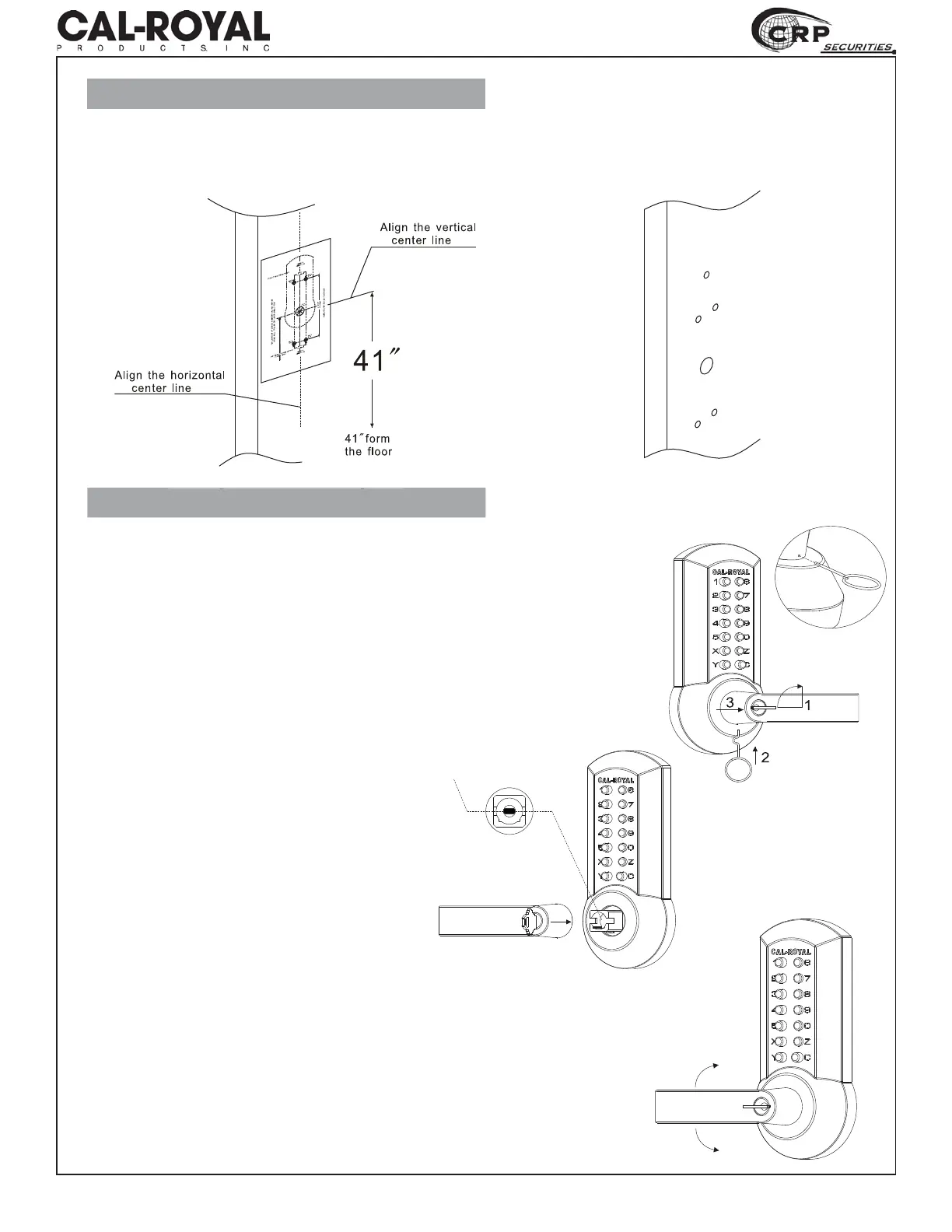

1. Attach TEMPLATE onto door and verify backset
and latchbolt center before marking and drilling
the holes on the door.
2. Drill holes on the door according
to the model you have.
OUTSIDE LOCK
(Lever shipped Right Handed)
1. Insert key and turn 90° clockwise.
2. Insert lever catch on the bottom
of the lever.
3. Pull lever off.
Mark and Drill Door
4. Fit lever to the desired opposite
left hand of the door.
5. Turn key 90° clockwise and push
lever until it clicks.
6. Make sure the outside lever is
secure and working smoothly.
7. Pull out key.
4
make sure this is
set horizontally
5
6
3
