Cal-Royal CRCODE-204 - Lock Installation; Install Outside Lock and Spindle; Install Inside Lock and Secure Assembly; Verify Lock Fitment and Operation

6605 Flotilla St., Commerce, CA 90040
Tel (323) 888-6601 Fax (323) 888-6699
www.cal-royal.com
Left hand Right hand
6

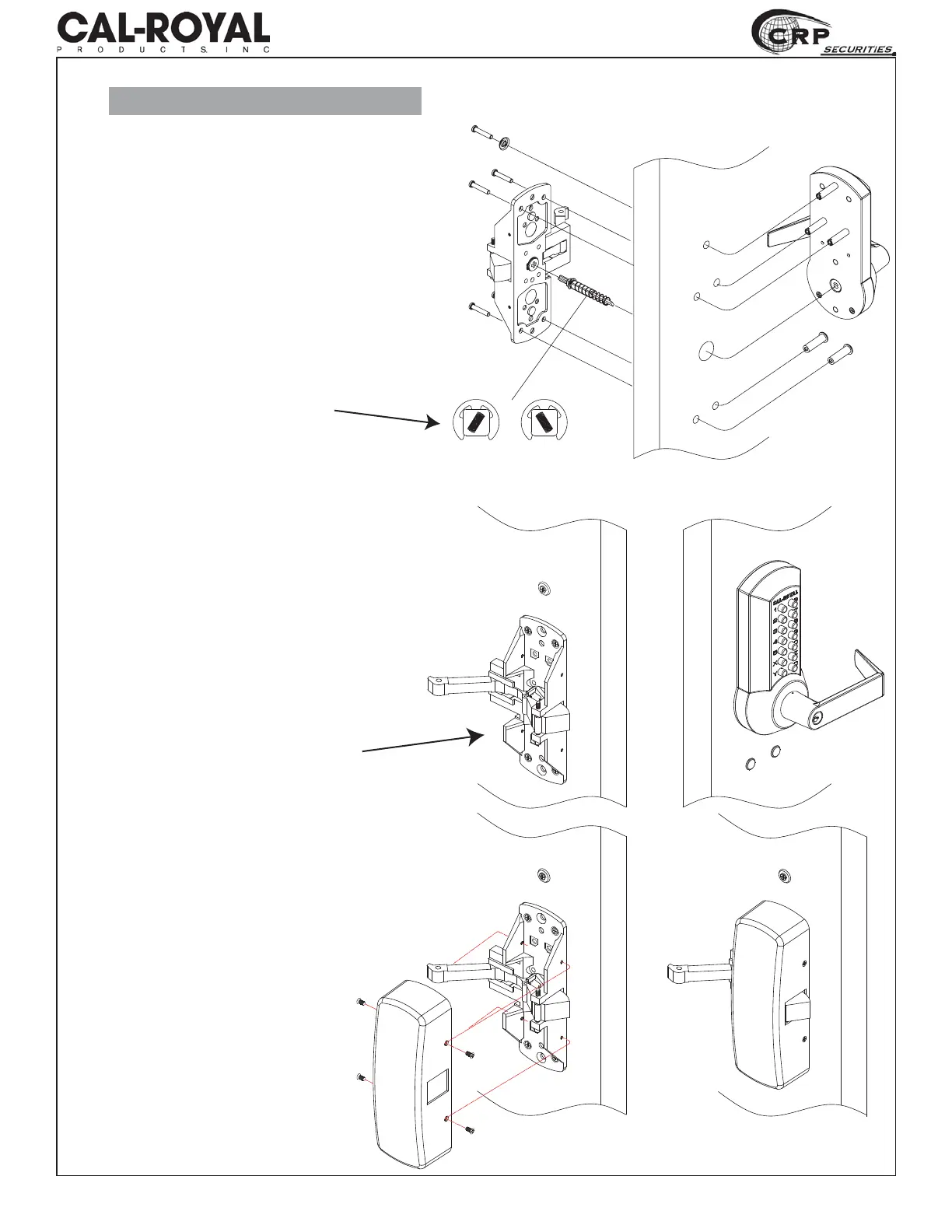

Lock Installation
1. Place outside lock on door and
align with drilled holes.
2. Fit the spindle into the exit
device spindle guide.
2.1 Position according to the
handing of the door. (refer
to the bottom left of the
illustration)
3. Place inside lock on door and
aligh with drilled holes.
4. Fix the locks using 5 of the
10-24 x 1-3/16 screws.
5. Check that the whole lock is
FRUUHFOW\¿WWHGDVVKRZQRQWKH
right image. Enter code to check
if it is correct.
6. Fix inside cover with 4 screws.
