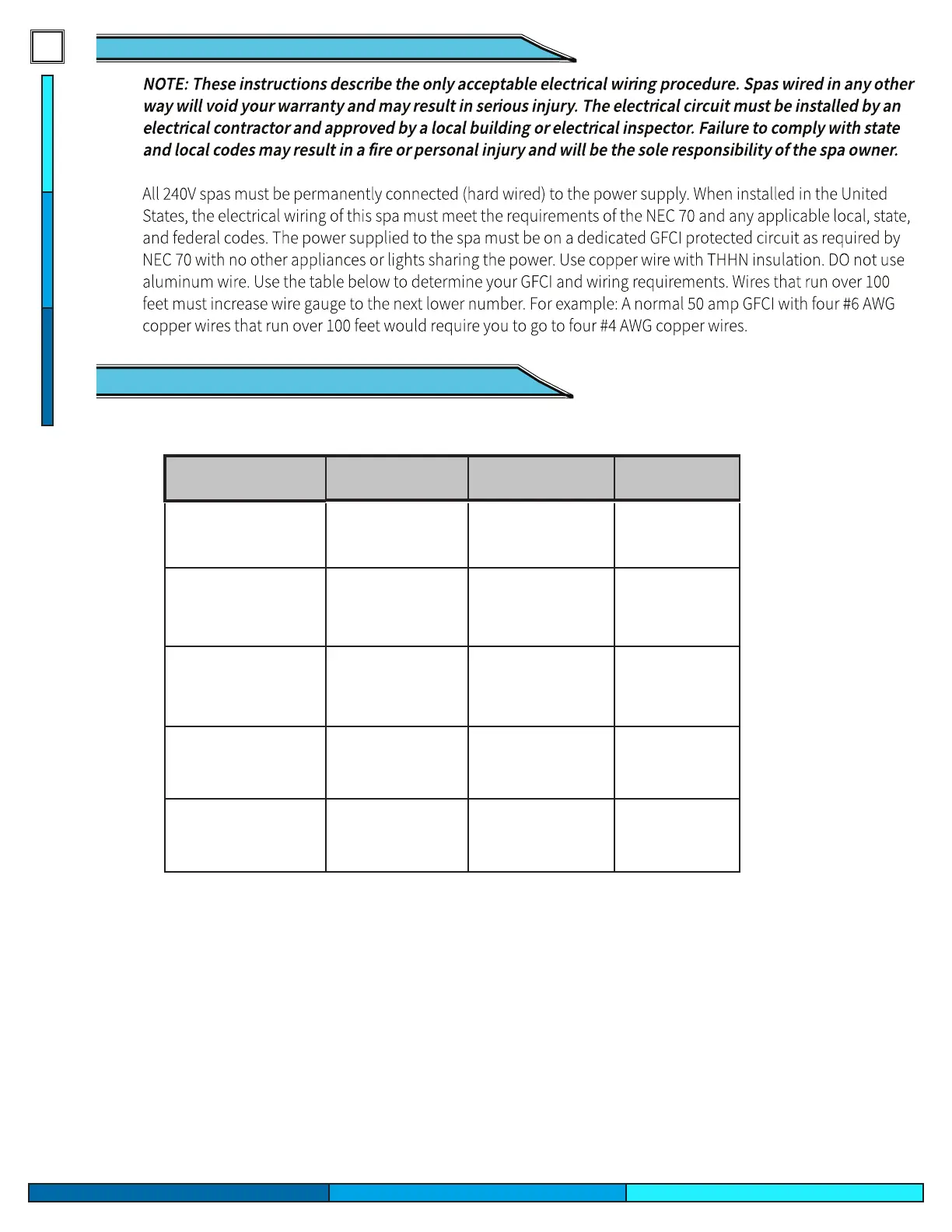

Cal Spas SWIM - 240 Volt Electrical Specifications; Wiring Specifications and GFCI Requirement

8
8
*Optional 5.5 KW auxiliary heater will require one additional 40 amps GFCI breaker with three #6
AWG copper wires
F-1325 / F-1325X
BP501X One 50 Amp GFCI
Breaker
Four #6 AWG Cop-
per Wires
See Page 10
for reference only
F-1655 / F-1655X
BP20X One 60 Amp GFCI
Breaker
Four #6 AWG Cop-
per Wires
See Page 10
for reference only
F-1437 / F-1437X
BP501X One 50 Amp GFCI
Breaker
Four #6 AWG Cop-
per Wires
See Page 10
for reference only
F-1868DZ
BP20X
Service # 1 Swim Side
One 60 Amp GFCI
Breaker
Four #6 AWG Cop-
per Wires
See Page 10
for reference only
F-1868DZ
BP501G1
Service # 2 Spa Side
110V 15 Amp
Plug & Play
Cord with15 Amp
GFCI Provided
See Page 10
for reference only
Spa Model
Control System
GFCI Breaker
Wires Required
Wiring Diagram
240 Volt Electrical Specifications240 Volt Electrical Specifications
Wiring Specifications and GFCI RequirementWiring Specifications and GFCI Requirement
