OTP (factory set configuration)
Description size (bytes) default
Cal Id 2 0xca1a (** to be confirmed by

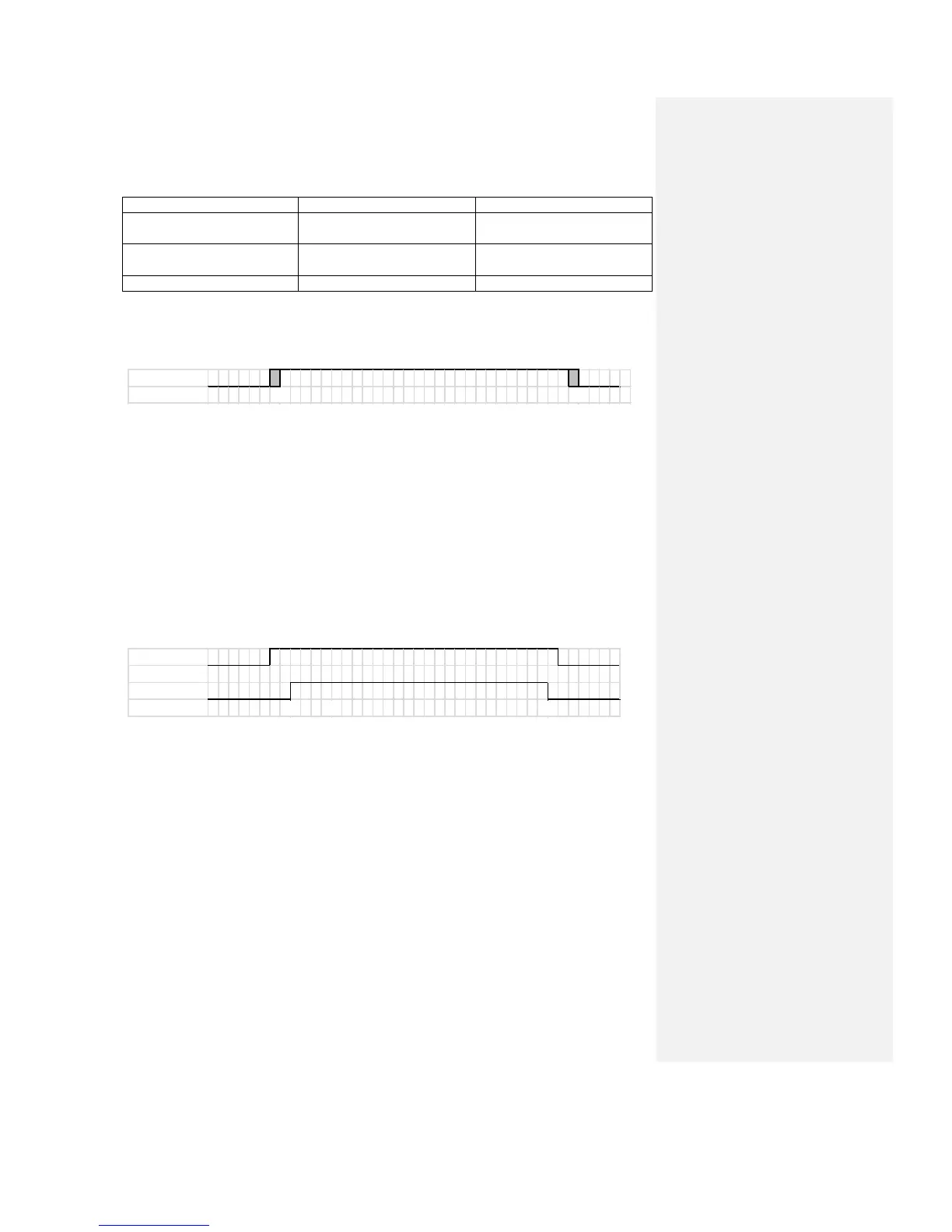

Keyfob button timing diagrams for common scenarios.
Short press showing de-bouncing other buttons not pressed.
0) Button is pushed at time zero.
a) After de-bouncing button is determined as pressed but no message is generated.
b) After ‘short press minimum time’ a short press event is generated and if configured a
message is broadcast with button state 0b00000010 and reason code 0b00010001.
c) After ‘short press repeat time’ a short press repeat event is generated and if configured a
message is generated with button state 0b00000010 and reason code 0b00010001.
d) After Button is released and de-bounced a button release event is generated and if
configured a message is generated with button state 0b00000000 and reason code
0b00110001
0) Button 1 is pushed
a) Button 2 is pushed before ‘short press minimum time’ for button 1. Because button 2 is
pushed before ‘short press minimum time’ Buttons 1 and 2 are now considered as grouped
for the purposes of the reason code.
b) Short press minimum time elapses on both button 1 and 2 if configured a message is
broadcast with button state 0b00010010 and a reason code of 0b00010011
c) The short press repeat time passes for buttons 1 and 2; if configured a message is generated
with button state 0b00001010 and a reason code of 0b00010011.
d) button 2 is released if configured a message is generated with button state 0b00000010 and
reason code 0b00110010
e) Button 1 is released if configured a message is generated with button state 0b00000000 and
reason code 0b00110001
