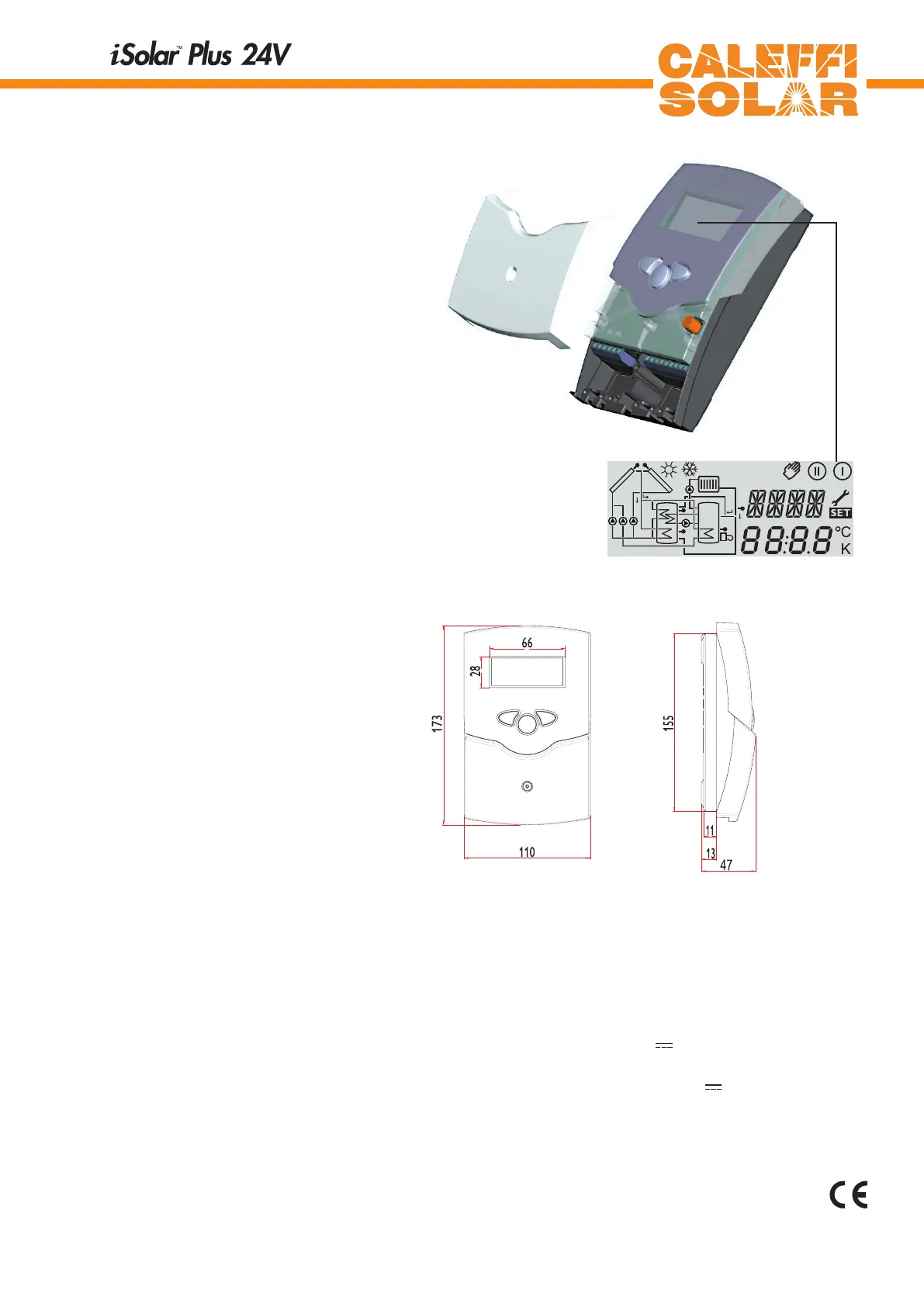

Caleffi solar iSolar Plus 24V - Technical Data and Overview of Functions

© Caleffi 08301_iSolar Plus 24V.monus.indd
3 |
!



• System-monitoring-display
• Upto4temperaturesensors
Pt1000
• 9basicsystemsselectable
• Heatbalancing
• VBus
®
• Functioncontrol
• Thermostatfunction
(time controlled)
• Parameterisationandcontrol
of the system by ServiceCenter;
Software is possible
• User-friendlyoperationbysimple
handling
• Housinginoutstandingdesign
and compact dimensions, easy to
install
Technical data
Housing:
plastic, PC-ABS and PMMA
Protection type: IP 20 / DIN 40050
Ambient temp.: 32 ... 104 °F
Size: 172 x 110 x 46 mm
Mounting: wall mounting, mounting
into patch-panels is possible
Display: System screen for system
visualisation, 16-segment display, 7-seg-
ment display, 8 symbols for system
status and operating control lamp
Operation: by 3 pushbuttons in the
front of the housing
Functions: Differential temperature
controller with optional add-on system
functions. Func ti on con trol according
to BAW-standards, operating hours
counter for solar pump, tube collector
special function, thermostat function
and heat quantity balancing.
Inputs:
for 4 temperature sensors Pt1000
Outputs: 2 electromechanical relays
Bus:VBus
®
Power supply:
24V
Total power supply:
2 (1) A 24 V
Scope of delivery:
1 x iSolar Plus 24V
1 x accessory bag
1 x spare fuse T4A
2 x screws and dowels
4 x strain relief and screws
Additionally enclosed in the full kit:
2 x sensor FKP6
2 x sensor FRP6
