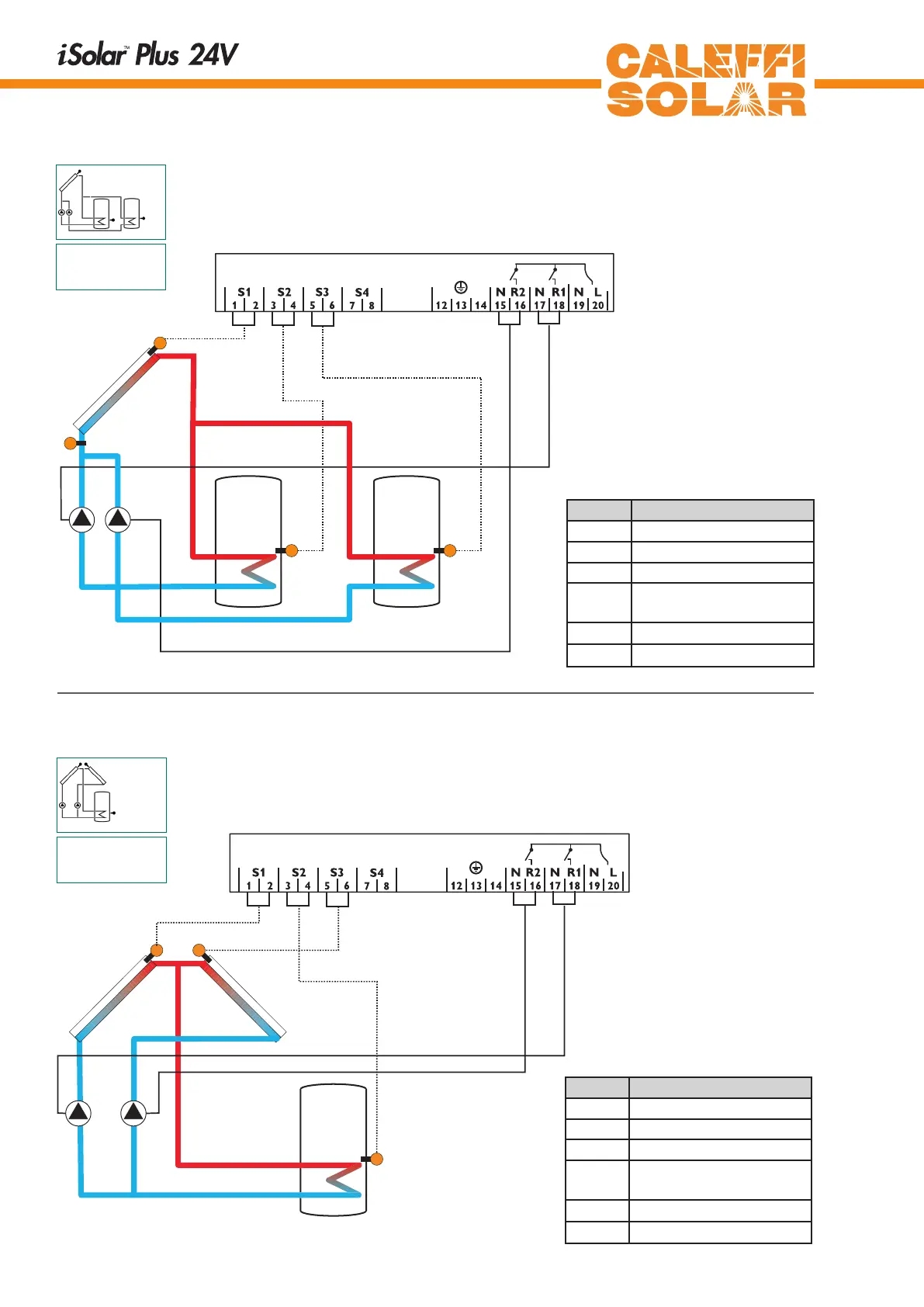

Caleffi solar iSolar Plus 24V - 2-Tank-Solar System Pump Logic; Solar System with 2 Collectors

© Caleffi 08301_iSolar Plus 24V.monus.indd
| 8
1.2.7Allocation of clamps for system 7 Solarsystemwitheast-westcollectors, 1 tank,
3 sensors and 2 solar pumps.
R1
R2
S1
S2
S3
Arr 7
S1
S2
S3
R1
R2
1.2.6 Allocation of clamps for system 6
2-tank-solarsystemwithpumplogic with 2 tanks, 3
sensors and 2 solar pumps.
Arr 6
Tank 1 Tank 2
S4
Symbol Specification
S1 Collector sensor
S2 Tank sensor 1
S3 Tank sensor 2
S4 Measuring sensor
(optinal)
R1 Solar pump 1
R2 Solar pump 2
Symbol Specification
S1 Collector sensor
S2 Tank sensor 1
S3 Collector sensor 2
S4 Measuring sensor
(optinal)
R1 Solar pump collector 1
R2 Solar pump collector 2
