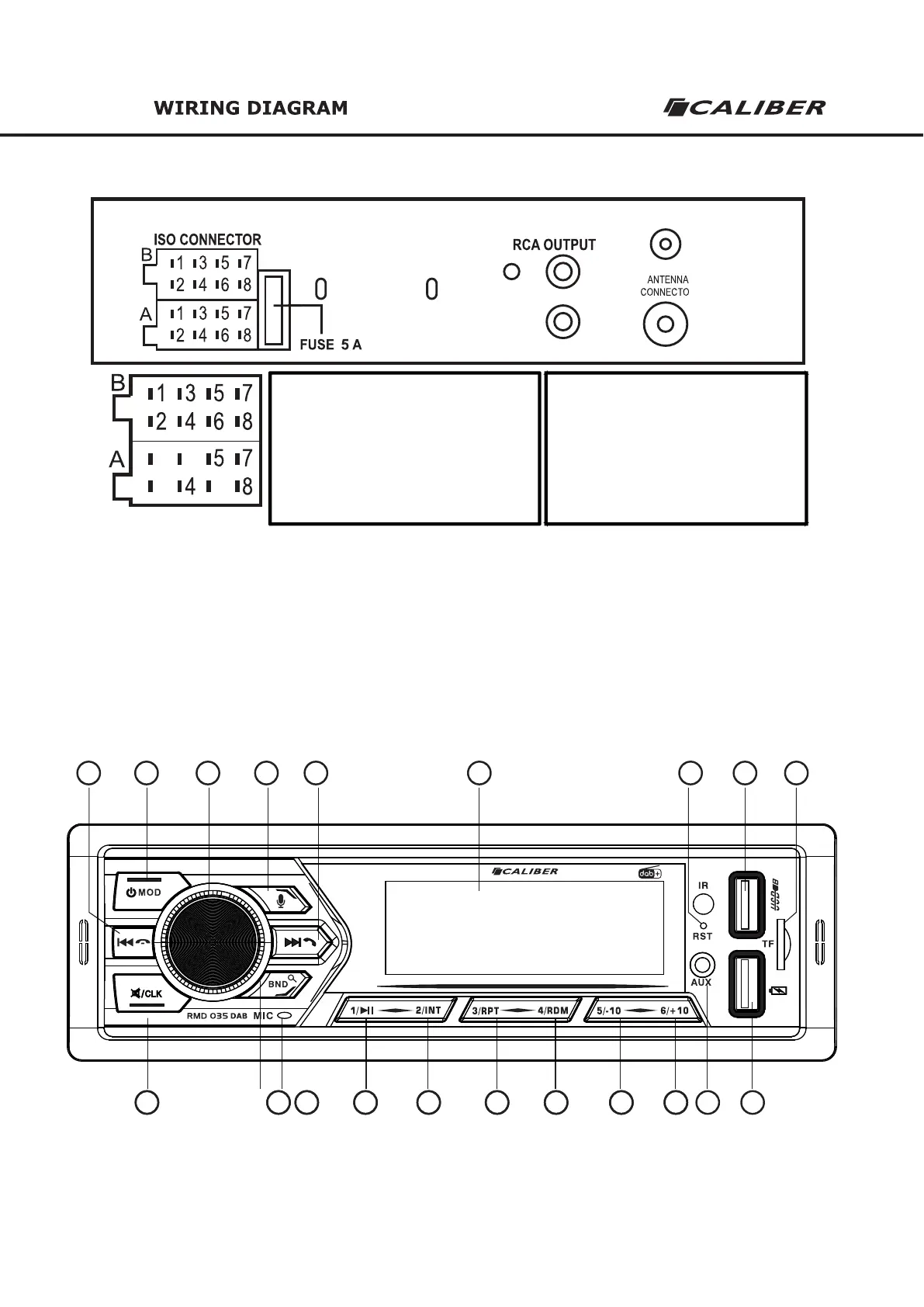

Panel Layout
B1 :Purple Rear right speaker+
B2 :Purple-Black Rear right speaker-
B3 :Grey Front right speaker+
B4 :Grey-Black Front right speaker-
B5 :White Front left speaker+
B6 :White-Black Front left speaker-
B7 :Green Rear left speaker+
B8 :Green-Black Rear left speaker
A4 :Yellow Battery +
A5 :Blue Antenna out
A7 :Red ACC (Connect to ignition switch)
A8 :Black GND (Connect to battery-)
1．Left RCA output (white)
2．Right RCA output (red)
3
4
．
．FM
Antenna
Antenna
(DIN)
(DIN)
1
2
4
3
DAB
1 2 43 5 6 7 8 9
10111213141516171819
20
RMD
