CALIENT S Series Repair And Diagnostics Field Guide

S320 OCS Repair and Diagnostics Field Guide
Doc. Part No. 460163-00
May 5, 2015
Rev. B1
Page 17 of 22
3.7.1 Removing the Fan Filter
The following procedure describes how to properly remove the fan filter from its housing in the
S320 chassis:

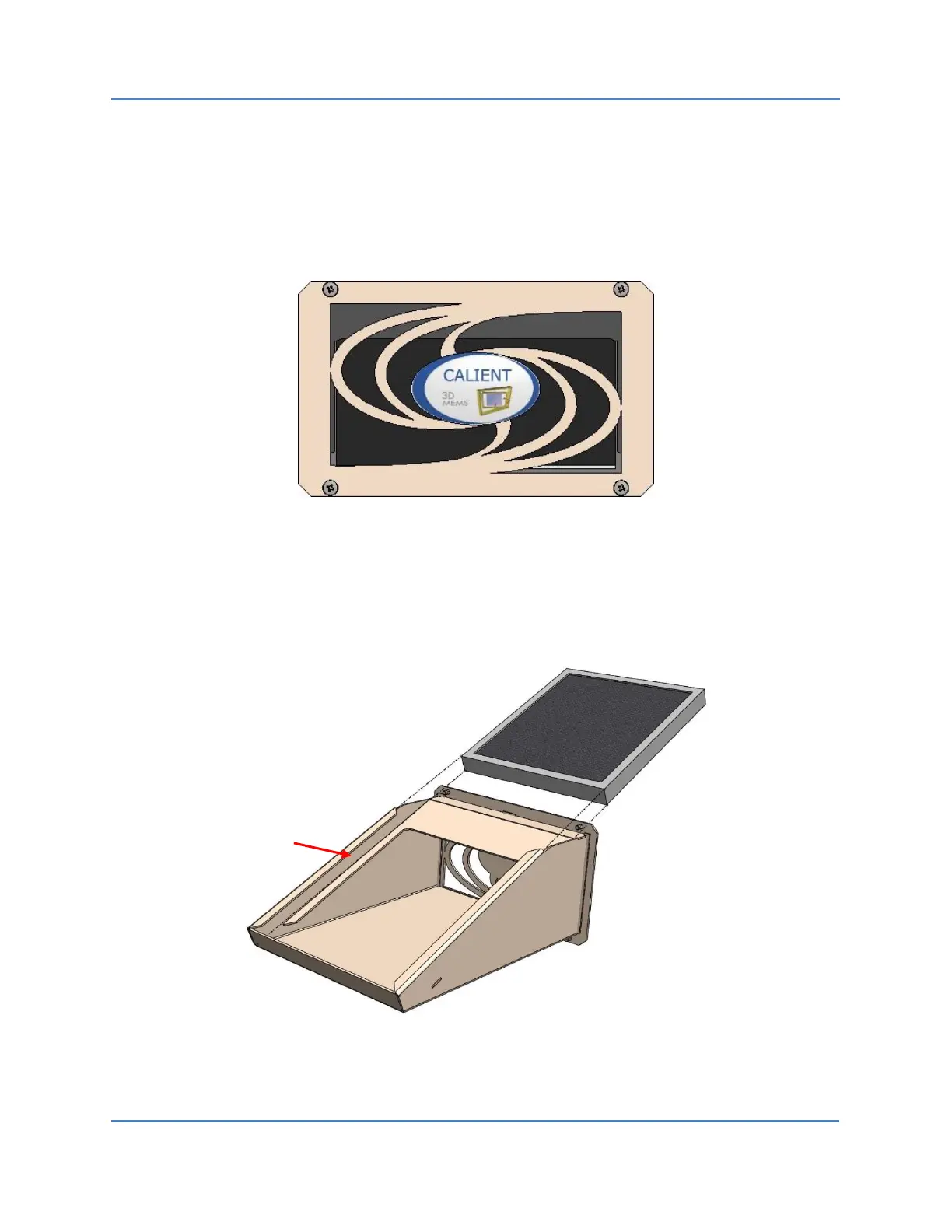

1. Remove each of the four screws from the faceplate of the fan filter housing (Figure 4).
Figure 4 – Fan Filter Faceplate
2. Gently pull the filter housing from the chassis.
3. Remove the filter by sliding it up and away from the housing (Figure 5).
Figure 5 – Fan Filter Removal and Installation
Slot
FRONT
REAR
