VENT & OVERFLOW
The vent / overfl ow pipe must be extended and laid with a
continuous
fall,
discharging to a safe and visible point. The pipe should not be
directly connected to a closed waste, as taste problems may occur and
should never be allowed to become blocked or restricted.15mm copper or
‘Speedfi t’ pipe should be used. The drip tray kit provided with the counter
top models allow the option of plumbing the overfl ow pipe to discharge
into the drip tray and then plumbing the drip tray to a safe and visible
point of discharge. If the machine is operated without the overfi ll pipe
being extended as advised, any subsequent damage incurred will be the
responsibility of the installer.

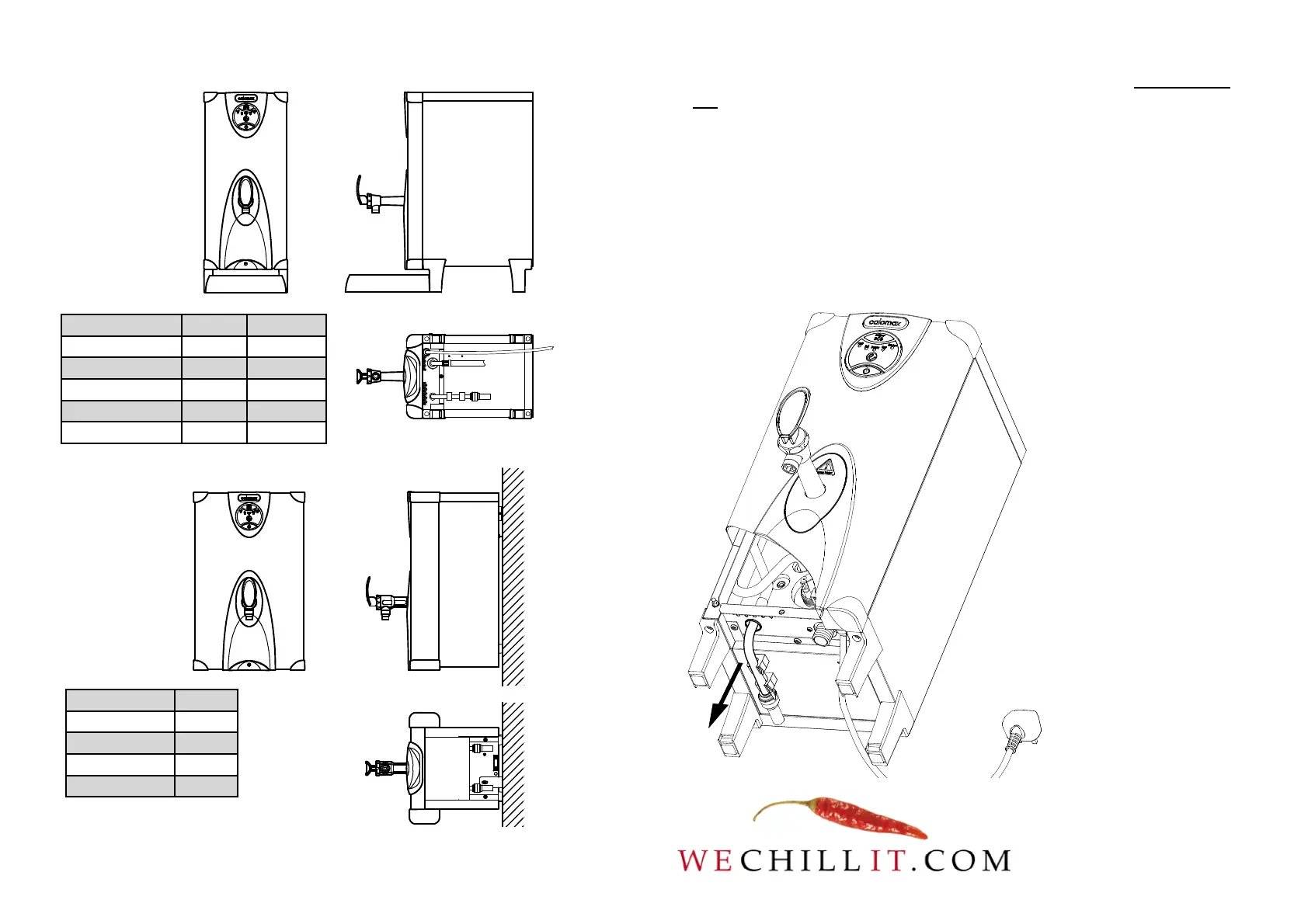

DIMENSIONS AND WEIGHTS
3C5 3C10
Height 570mm 570mm
Depth 260mm 355mm
Width 240mm 240mm
Drip tray clearance 175mm 175mm
Working weight 21 Kg 30.5 Kg
3W5
Height 510mm
Depth 250mm
Width 315mm
Working weight 21 Kg
If the boiler is required to
drip or overfl ow into the
drip tray, the confi guration
of pipework may be altered
as follows. Remove the
machine front panel and
unclip the pipework elbow.
Carefully pull the elbow
in the direction of the
arrow, out of the silicone
connecting tube on the
end of the main water pipe.
The silicone connecting
tube will now direct water
into the drip tray.
