Place the tower on the floor against the
wall.

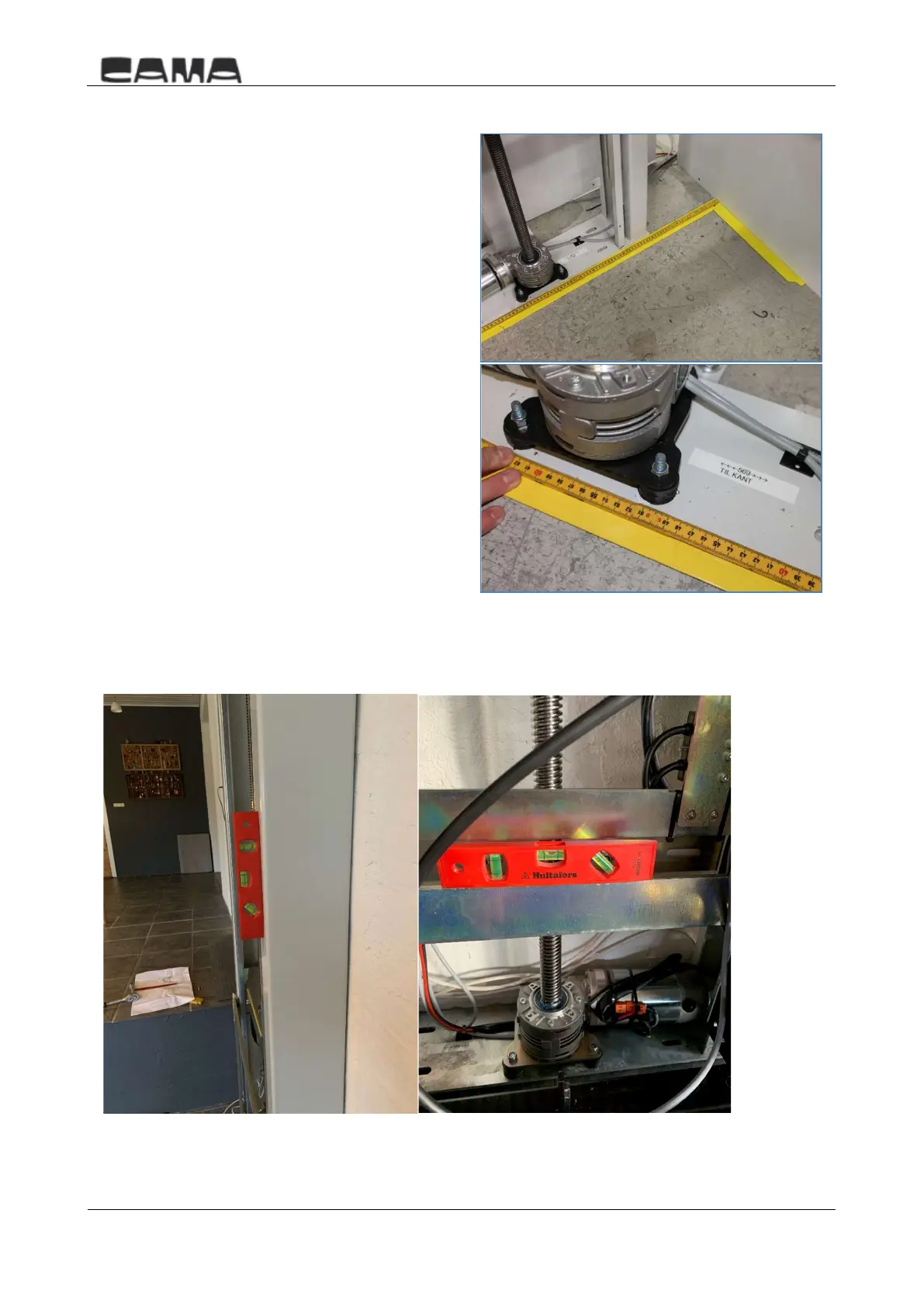

Adjust the tower to be perpendicular to
the wall of the landing. (see fig. 3)
The distance between the centre of the
tower and the landing wall is given on the
installation drawing. You will also find the
distance labelled on the bottom face of
the tower.
The centre of the tower is clearly marked
with a “V” in the baseplate next to the
label (see fig. 3).
Make sure the tower is in level (see fig. 4).
