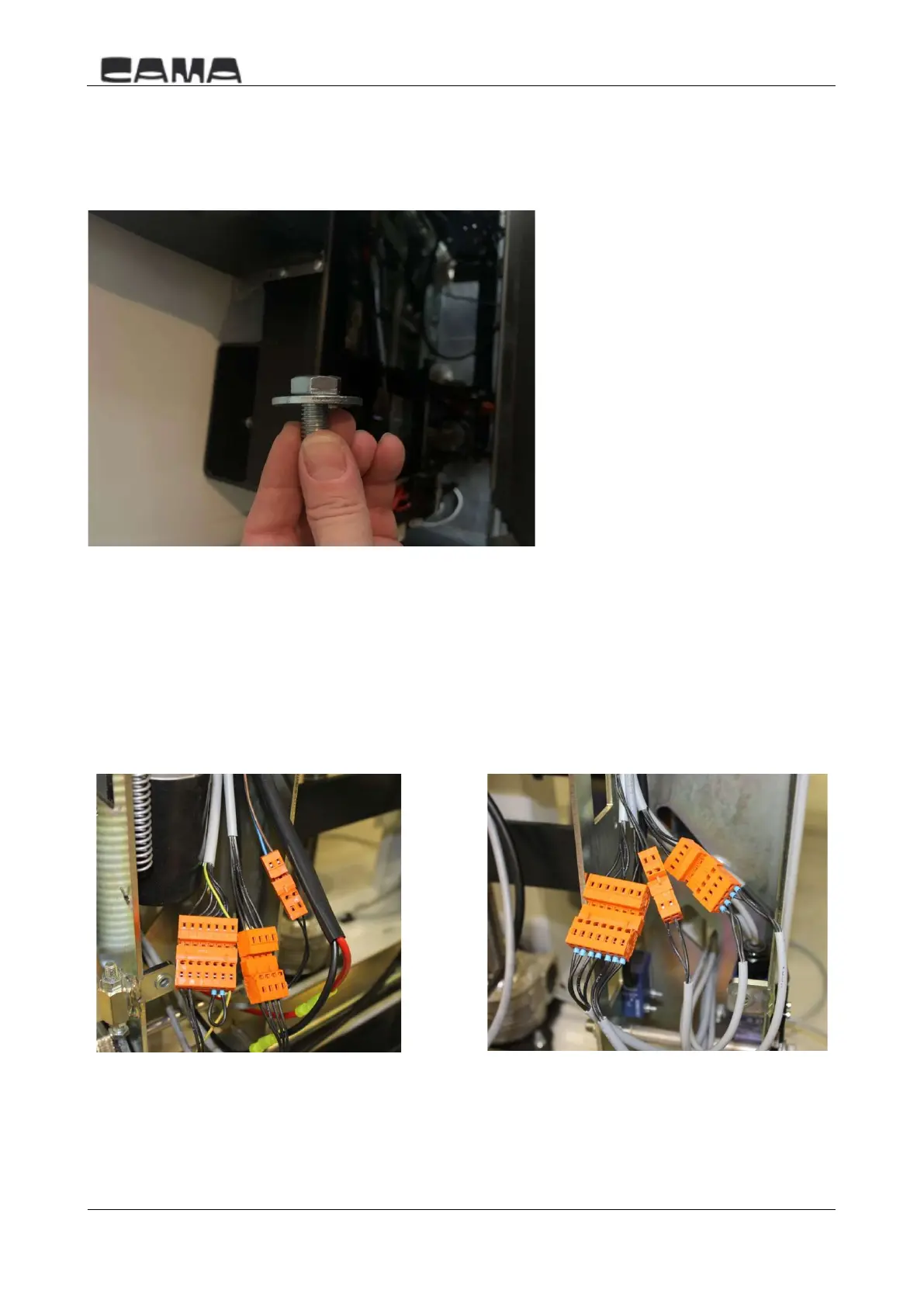

Position the back frame to the mounting holes of the carriage.
Fasten the back frame using the four screws and washers.
Fig. 7
4.2 Connect the electrical
Leave the lift carriage and back frame in the lower position of the tower. Place the
platform on the floor in front of the back frame.
Pull the cables and mount the connectors as shown below.
Fig.
8
left
Fig.
8
right
