PMP 400/430 and PTP 200/230 Series Configuration and User Guide
pmp-0042 (March 2014) Page 22 of 98
4940APC
4.9 GHz OFDM Connectorized
AP – No antenna
DES
Requires CMM4
w/56 VDC supply
4941APC
4.9 GHz OFDM Connectorized
AP – No antenna
AES
Requires CMM4
w/56 VDC supply

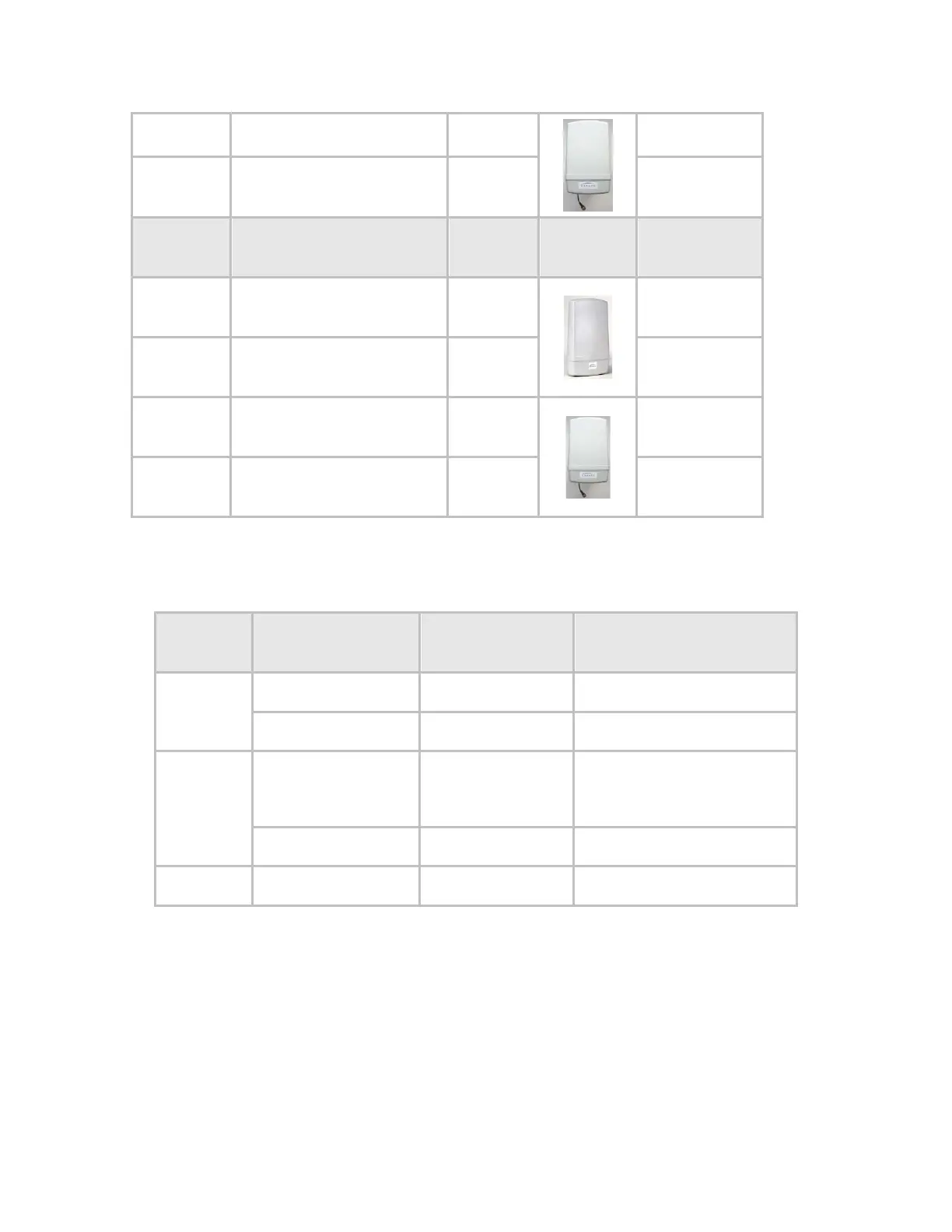

PTP 49200
Model
Number
4.9 GHz OFDM Backhaul (BH)
Description
Encryption Picture
Power 56 VDC
CMM Type
4940BH 4.9 GHz OFDM BH DES
Wall type 56VDC
supply or CMM4
w/56 VDC supply
4941BH 4.9 GHz OFDM BH AES
Wall type 56VDC
supply or CMM4
w/56 VDC supply
4940BHC
4.9 GHz OFDM Connectorized
BH – No antenna
DES
Wall type 56VDC
supply or CMM4
w/56 VDC supply
4941BHC
4.9 GHz OFDM Connectorized
BH – No antenna
AES
Wall type 56VDC
supply or CMM4
w/56 VDC supply
A Cluster Management Module (CMM4) provides GPS synchronization and power to the PMP 400/430 and
PTP 200/230 series of products: Table 6 details the power requirements of the APs and BHs.
Table 6: CMM4 56VDC and 30 VDC Operation
Frequency PMP Series Access
Point (AP)
PTP 230 Series
Backhaul (BH)
Canopy Custom Power over
Ethernet (PoE)
5.8 GHz
PMP 430 Series – CAP
58430
56 VDC - power on pins 7 and 8
and return on pins 4 and 5
PTP 230 Series –
PTP 58230
30 VDC - power on pins 7 and 8
and return on pins 4 and 5
5.4 GHz PMP 400 Series – CAP
54400
PTP 200 Series –
PTP 54200
PTP 230 Series –
PTP 54230
30 VDC - power on pins 7 and 8
and return on pins 4 and 5
PMP 430 Series – CAP
54430
56 VDC - power on pins 7 and 8
and return on pins 4 and 5
4.9 GHz PMP 400 Series – CAP
49400
PTP 200 Series –
PTP 49200
56 VDC - Power on pins 5 & 8,
return on pins 4 & 7
The CMM4 can be configured with either or both a 56VDC and a 30VDC external power supply as shown in
Figure 10 and Figure 11. The CMM4 must be used for 56 VDC operations which are required for the PMP
430 5.4 and 5.8 GHz AP, and PMP 400 4.9-GHz AP. The CMMmicro only supports 30 VDC operations.
