LOUDSPEAKERS
Check the impedance of your speakers. You can use types with an impedance of 8
Ohms.
The red coloured speaker terminals are positive (+) and the black speaker terminals
are negative (-). Make sure correct polarity is maintained at each speaker connector
or the sound can become weak and “phasey” with little bass.
USING BARE WIRE CONNECTIONS
Prepare the speaker cords for connection by stripping o approximately 10mm (3/8”)
or less of the outer insulation. More than 10mm could cause a short circuit. Twist
the wires tightly together so there are no loose ends. Unscrew the speaker terminal,
insert the speaker cable, tighten the terminal and secure the cable.
Note: All connections are made using standard loudspeaker cable.
Right
speaker
AXA25
AXC CD player
Left
speaker
Connections
ower A
Power Ratin
: 220–230V A
~ 50
60H
ax Power
onsum
tion: 180W
B 5
m
4
ec
ut
esi
ned & En
ineered in Great Britain
ssembled in
hina
Lef
Louds
eake
Ri
h
ouds
eake
Le
ou
spea
e
t
ou
spea
e
25
ntegrated Amplifier
Power A
esigned & Engineered in Great Britain
ssembled in
hina
ower
at
ng
100–240V A
~ 50
60H
Rated Power Consum
tion: 15
Line Out
u
AXC25
ompact Disc Player
1
2
m
e
ance 8 o
ms
USING BANANA PLUGS
We recommend using Banana plugs with our units to establish a secure connection
and ensure there are no loose strands of wire that may cause unwanted noise or
interference.
Once you have stripped the outer insulation of the cable and twisted the wires as
indicated above, securely connect these to your banana plugs, remove the dust cap
from the end of the speaker terminal and push the plug in as far as possible without
applying excessive force.
BASIC CONNECTION

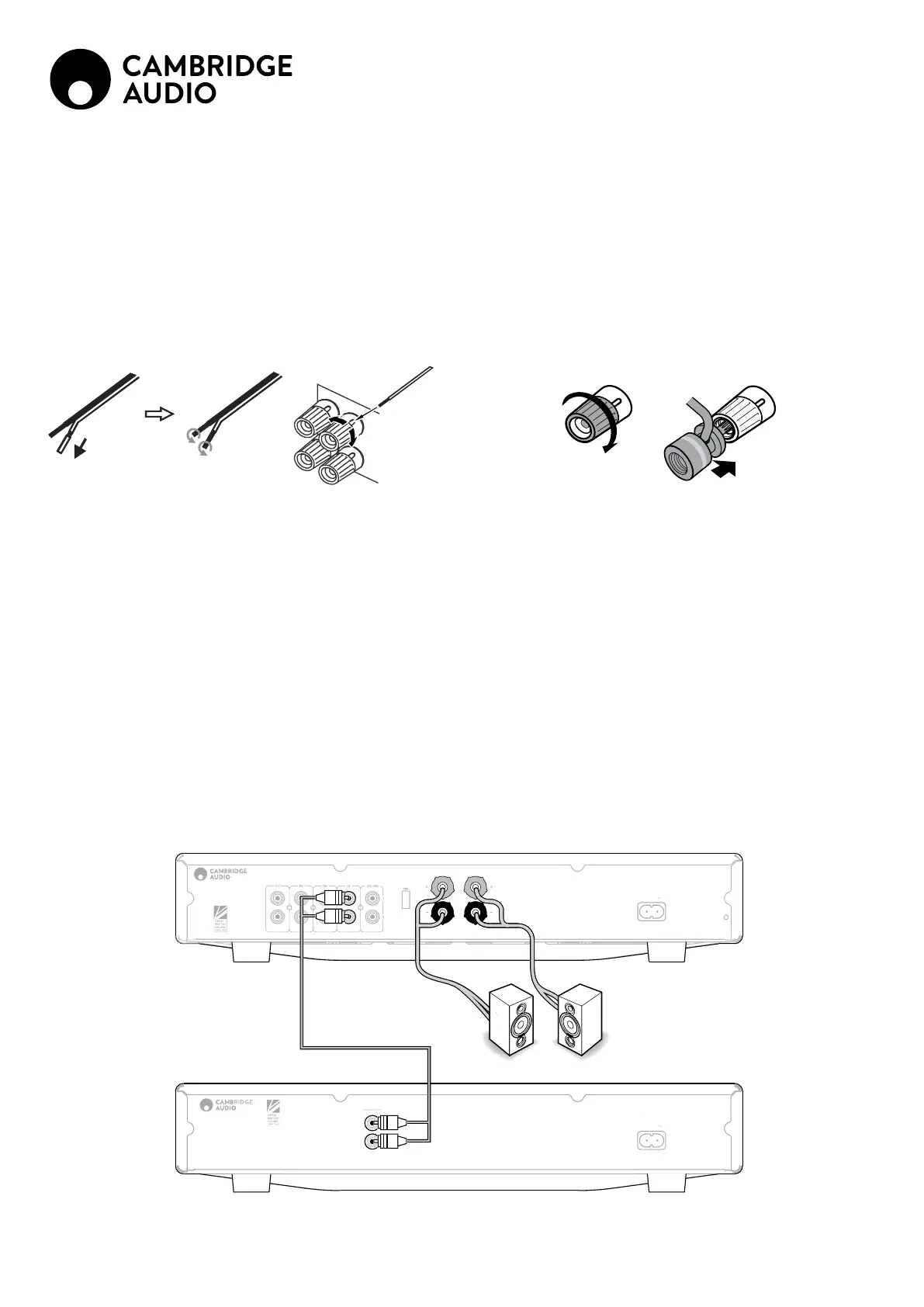

The diagram below shows the basic connection of your amplier to a CD player and
a pair of loudspeakers.
