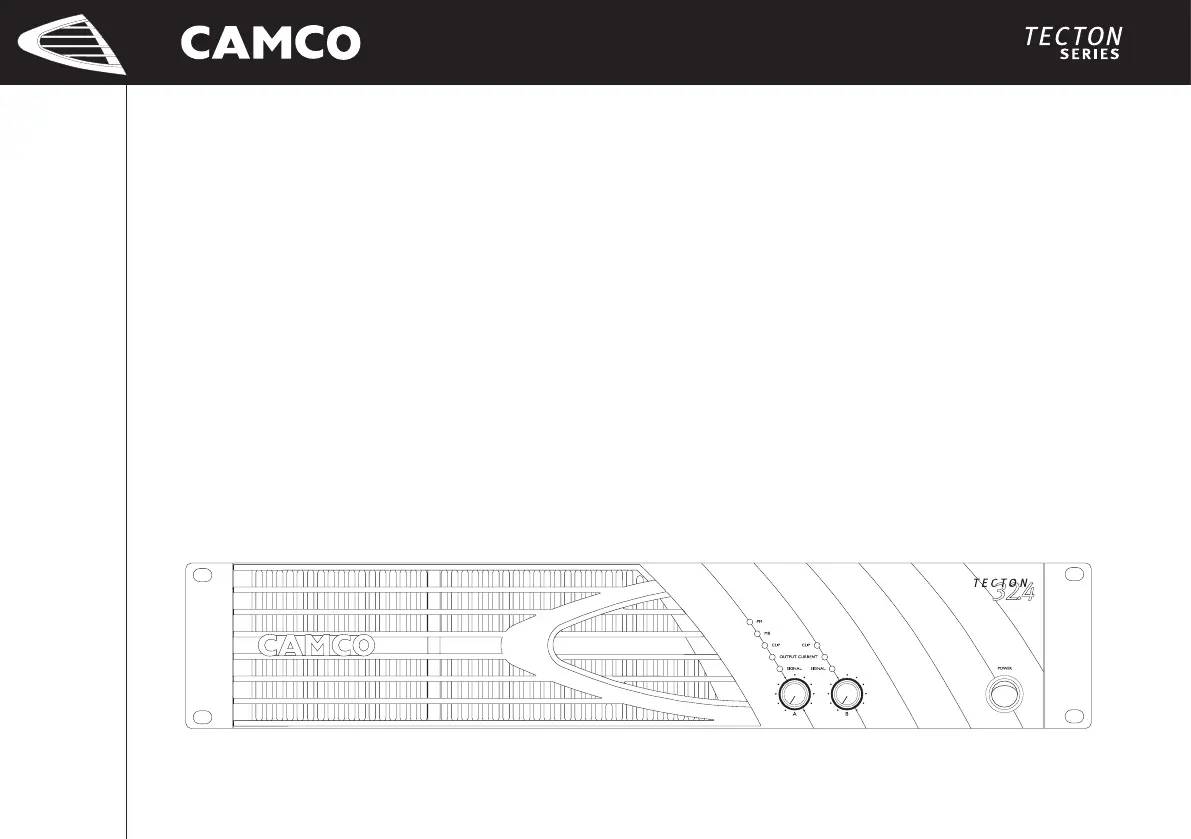

1.3 The Amplier
The TECTON is a Class-H power amplier with a power output of:
TECTON 38.4 1900 W per channel @ 4 Ω
3800 W in Mono-Bridge @ 8 Ω
3800 W in Parallel-Mono @ 2 Ω
TECTON 32.4 1600 W per channel @ 4 Ω
3200 W in Mono-Bridge @ 8 Ω
3200 W in Parallel-Mono @ 2 Ω
TECTON 24.4 1200 W per channel @ 4 Ω
2400 W in Mono-Bridge @ 8 Ω
2400 W in Parallel-Mono @ 2 Ω
TECTON 28.2 1420 W per channel @ 2 Ω
2840 W in Mono-Bridge @ 4 Ω
2840 W in Parallel-Mono @ 1 Ω
TECTON 22.2 1140 W per channel @ 2 Ω
2280 W in Mono-Bridge @ 4 Ω
2280 W in Parallel-Mono @ 1 Ω
TECTON 14.2 730 W per channel @ 2 Ω
1460 W in Mono-Bridge @ 4 Ω
1460 W in Parallel-Mono @ 1 Ω
TECTON ampliers are tted with Switched Mode Power Supplies (SMPS), which
signicantly reduces the weight and size (only 2U) of the amplier. Using SMPS,
the 2 symmetrical supply voltages (1 symmetrical supply voltage for TECTON
22.2 and TECTON 14.2) of the power amplier are more stable than the power
supplies used in conventional ampliers.
The TECTON has been designed as an intelligent and powerful product for
performing specialised tasks within a complex audio system. Users can adapt
the power amp to meet their specic audio requirements before use. Controls
mounted on the front and the rear of the TECTON allow access to the functio-
nality.
Since some of the externally mounted controls have multiple functions, it is
important that users should familiarise themselves thoroughly with the entire
range of controls.
If you have any questions regarding features and/or functions of your TECTON,
CAMCO will be pleased to provide you with further information. Alternatively,
contact your dealer or distributor.
