Camco Vortex 6 - Mounting the Amplifier

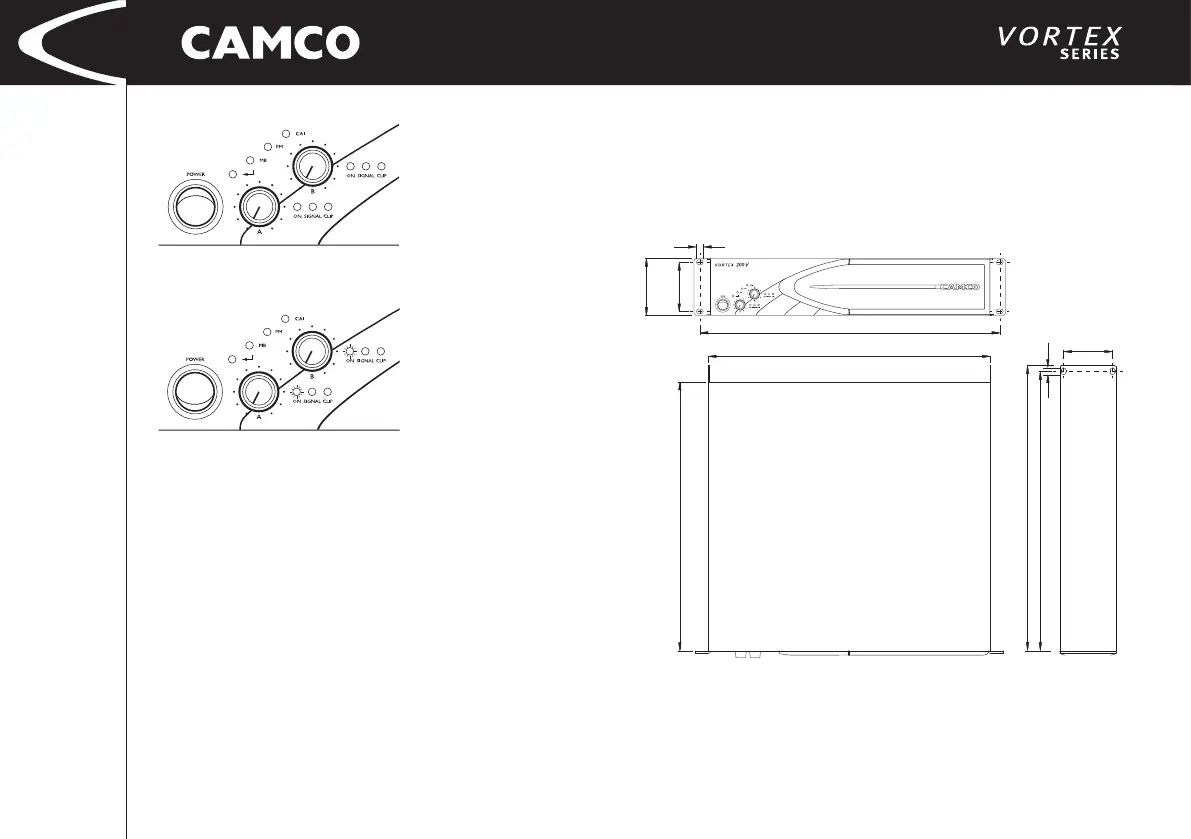

437,0 mm 446,0 mm 422,0 mm
76,2 mm
10,5 mm
442,0 mm
76,2 mm 88,9 mm
465,0 mm
10,5 mm
3 INSTALLATION
USER MANUAL
VORTEX 6, 4, 2.6 and 200V
P.12
USER MANUAL
VORTEX 6, 4, 2.6 and 200V
P.13
Amplier switched off
Amplier switched on (On LED is lighting up)
3.3 Mounting
Use four screws and washers when mounting the amplier to the front rack rails.
For mobile use, the amplier should also be secured using the 19” mounting
elements on the rear panel.
