8 MEASURMENTS
USER MANUAL
VORTEX 6, 4, 2.6 and 200V
P.32
USER MANUAL
VORTEX 6, 4, 2.6 and 200V
P.33

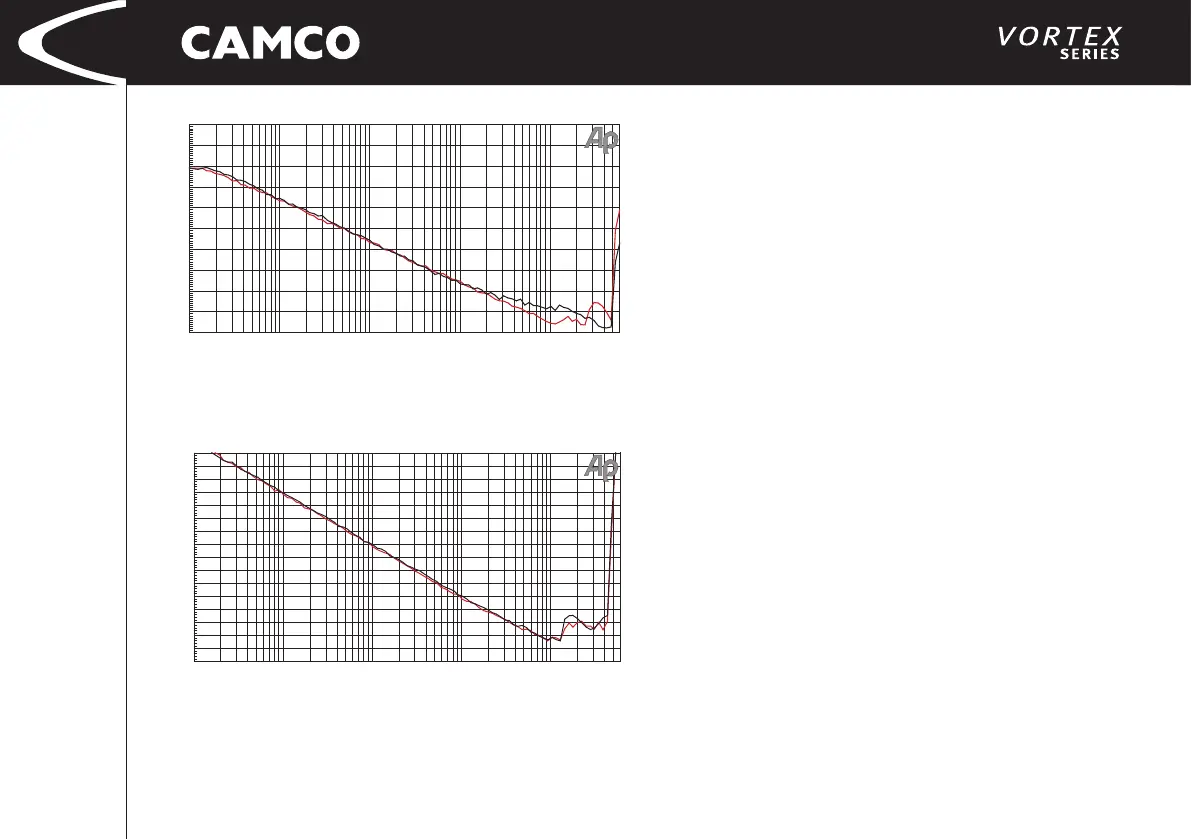

Figure 8.9
CCIF difference frequency method (10,5 kHz and 11,5 kHz) vs. input level
@ 4 Ω (Ch1, Ch2) (Measurements of a typical performance of a VORTEX 6)
Figure 8.10
SMPTE intermodulation distortion (60 Hz and 7 kHz) @ 4 Ω vs. input level
(Ch1, Ch2) (Measurements of a typical performance of a VORTEX 6)
