CAME AX5024

800
300
880
100
123
1100
1180
100
123
600
AX3024
AX5024
1
8
5
4
2
6
AX3024
AX5024
3
10
8
9
11
12
9
7
2
5
4
6
7
1
13
13
13
14
p. 4 - Manual FA01165 -EN - 05/2018 - © CAME S.p.A. - Translated original instructions

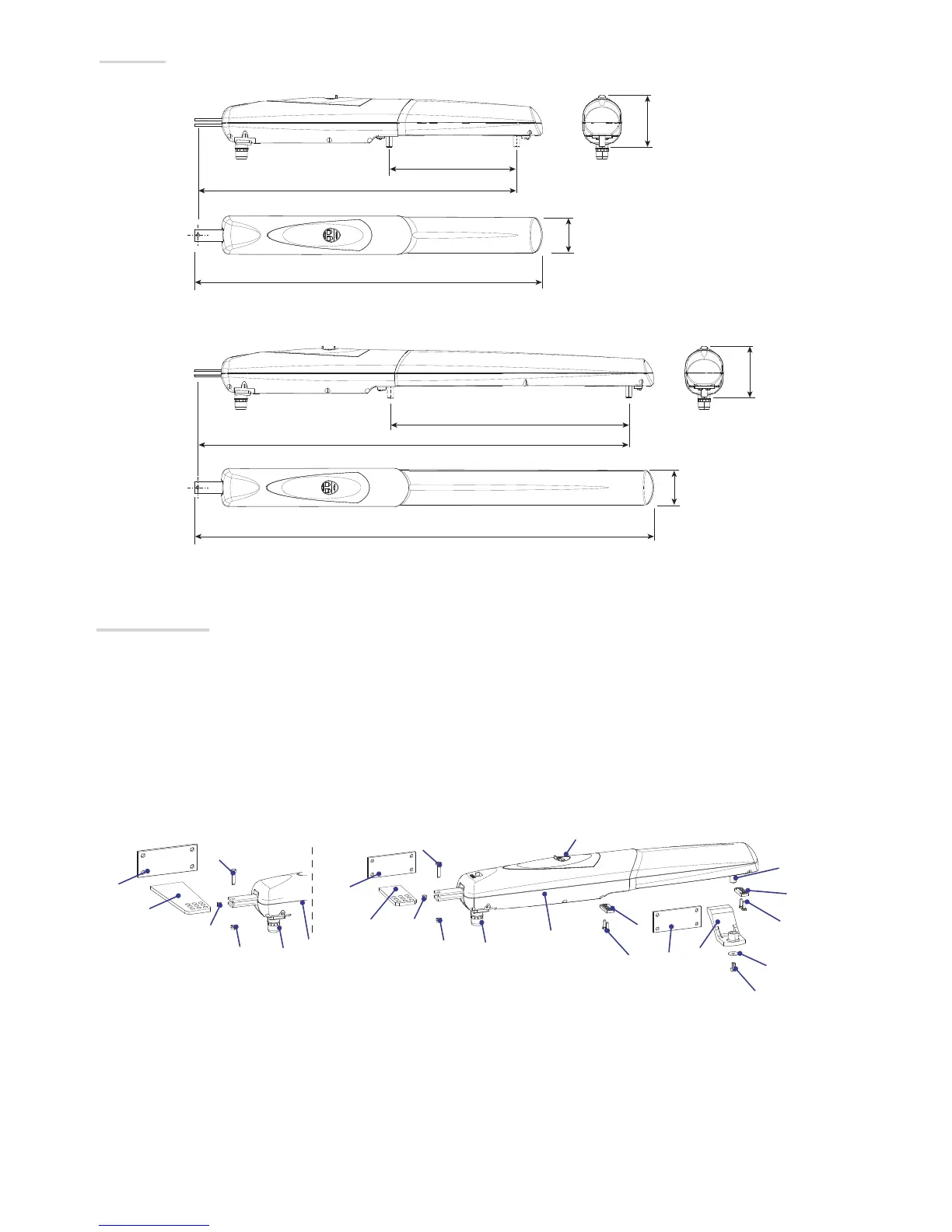

Dimensions
(mm)
Description of parts
1. O
perator
2. Pi
laster bracket
3. G
ate bracket
4.
M8x35 UNI5737 screw for securing pillar bracket
5. B
ushing
6.
M8 UNI5588 nut for securing pillar bracket
7. S
heath holder
8. M
echanical stop
9.
M6X20 UNI5739 screws for mechanical stop
10.
Endless screw pin
11.
Ø8x24 UNI6593 washer
12.
Gate bracket screw for securing to M8x10 UNI5739 pin
13. S
ecuring bracket
14.
Small release door
