CAME FTL Series User Manual

UNI 6593
Ø 14
UNI 5739
M10x14
Ø 12
UNI 6593
Ø 6
UNI 5739
M6x10
Ø 10
UNI 7474
M8
UNI 5931
M8 x 80
❻
❼
❽
❾
p. 11 - Manual FA00995-EN - 01/2018 - © CAME S.p.A. -
Translation of the original instructions

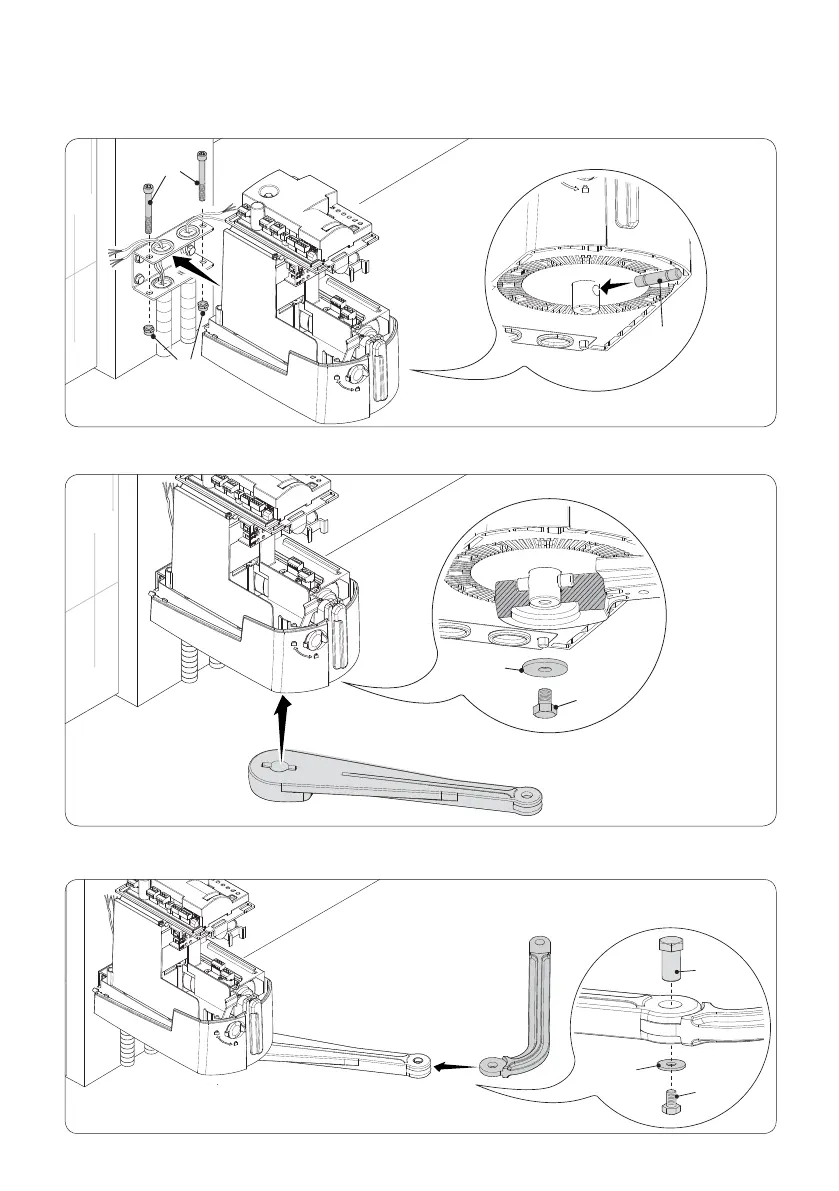

Fasten the driven-arm to the transmission arm by using the pin, the bolt and the washer.
Fasten the transmission arm to the shaft using the slow shaft washer and the screw.
Fit the gearmotor into the gate-post brace and tighten the nuts and bolts.
Fit the plug into the gearmotor's drive-shaft hole.
