For the system to work properly, before fitting any snap-in card (e.g. the AF R800), you MUST CUT OFF
THE MAIN POWER SUPPLY and remove any batteries.

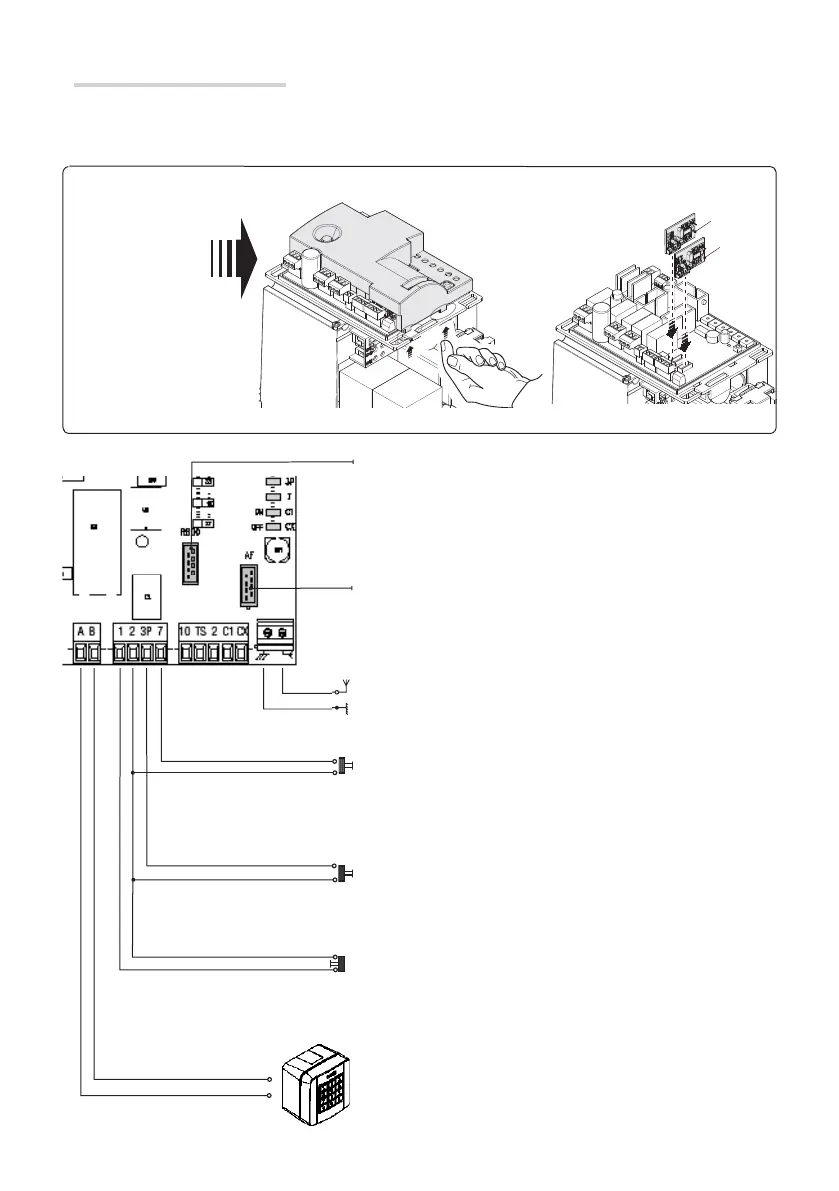

Command and control devices
Keypad selector.
Connector for the R800 card (the R800 card is for using the
keypad selector)
OPEN-CLOSE-INVERT function (step-step) from control
device (NO contact). Alternatively, from functions
programming you can activate the OPEN-STOP-CLOSE-
STOP command.
STOP STOP(N.C. contact). For stopping the gate while
excluding automatic closing. To resume movement press the
control button or use another control device.
If unused, it should be deactivated during programming.
Connector for AF card (AF868 or AF43S) for remote control.
PARTIAL/PEDESTRIAN OPENING feature activated from
control device (contact NO)
Antenna RG58 cable for remote control
