UNI 5931
M8x20
UNI 5931
M8x20
p. 28 - Manual FA00995-EN - 01/2018 - © CAME S.p.A. -
Translation of the original instructions
When closing.
Close the leaf. Fit the second stop against the opposite side of the arm and fasten it with the bolt.

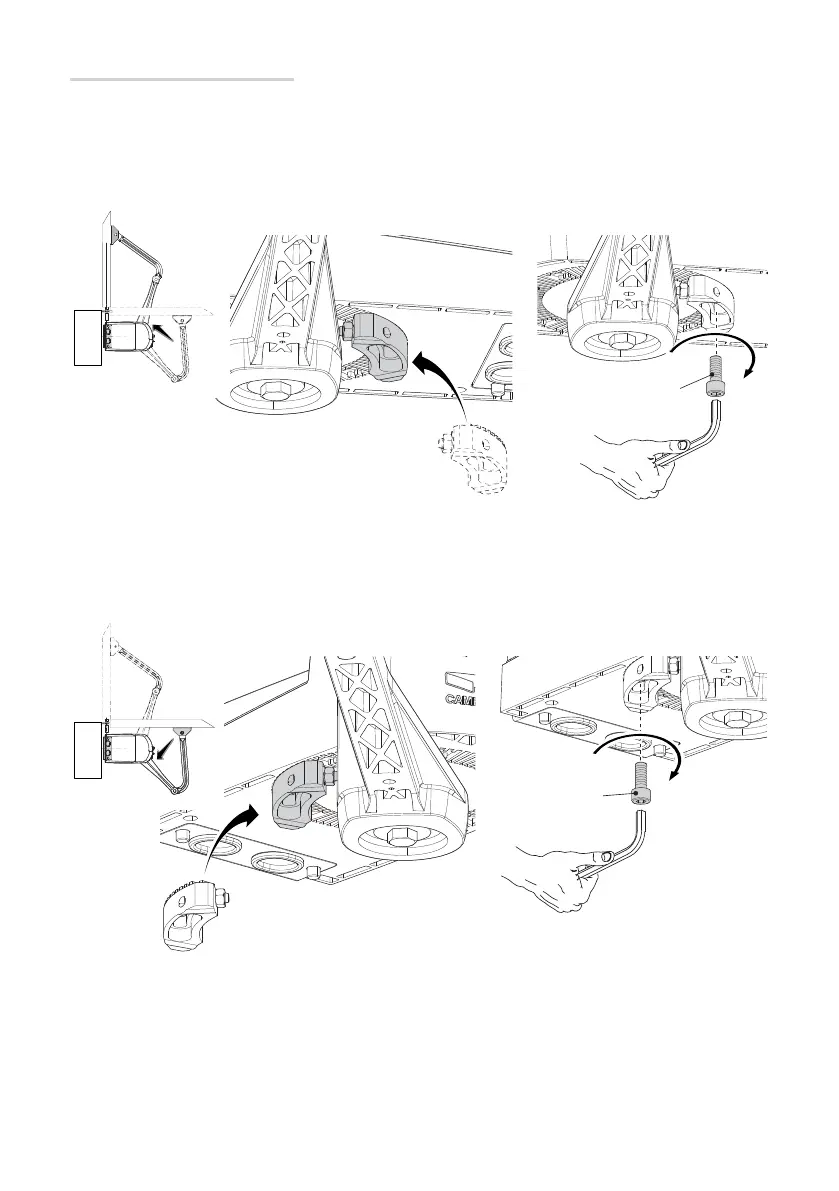

Fastening the mechanical stops
Release the gearmotor.
When opening.
Entirely open the gate leaf. Fit the stop under the casing, against the transmission arm and fasten it with the
bolt.
