UNI 6955
3,9 x 13
C max
310 max
A
B
120 min
27,5
p. 27 - Manual FA00995-EN - 01/2018 - © CAME S.p.A. -
Translation of the original instructions
⚠
Warning! If no end stops are fitted, you must fasten the stops.
Leaf opening arc (°) A B C max
90 140 420 60
110 140 420 60

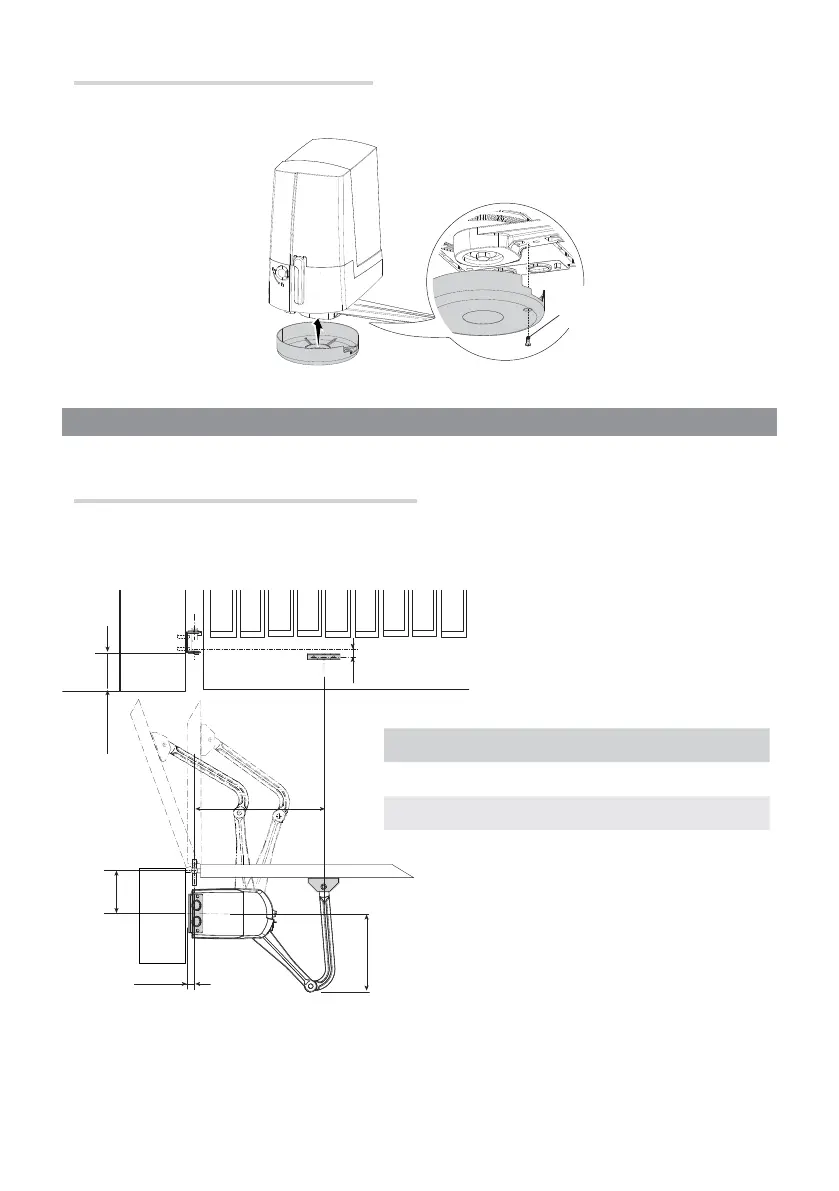

Fastening the braces and applicative dimensions
Establish where you will fit the gate brace and measure where the gate-post brace will fit. Make sure to respect
the quotas shown in the drawing and table.
INSTALLING AND CONNECTIONS FOR OUTER OPENING
Following, are the only things that change compared to a standard installation:
Fastening the transmission arm protection
Fit the protection under the operator and fasten it to the transmission arm using the screw.
