CX/OFF
1 PWR
C1/ON PRG
7
3P
UNI 6955
3,9 x 9,5
p. 26 - Manual FA00995-EN - 01/2018 - © CAME S.p.A. -
Translation of the original instructions

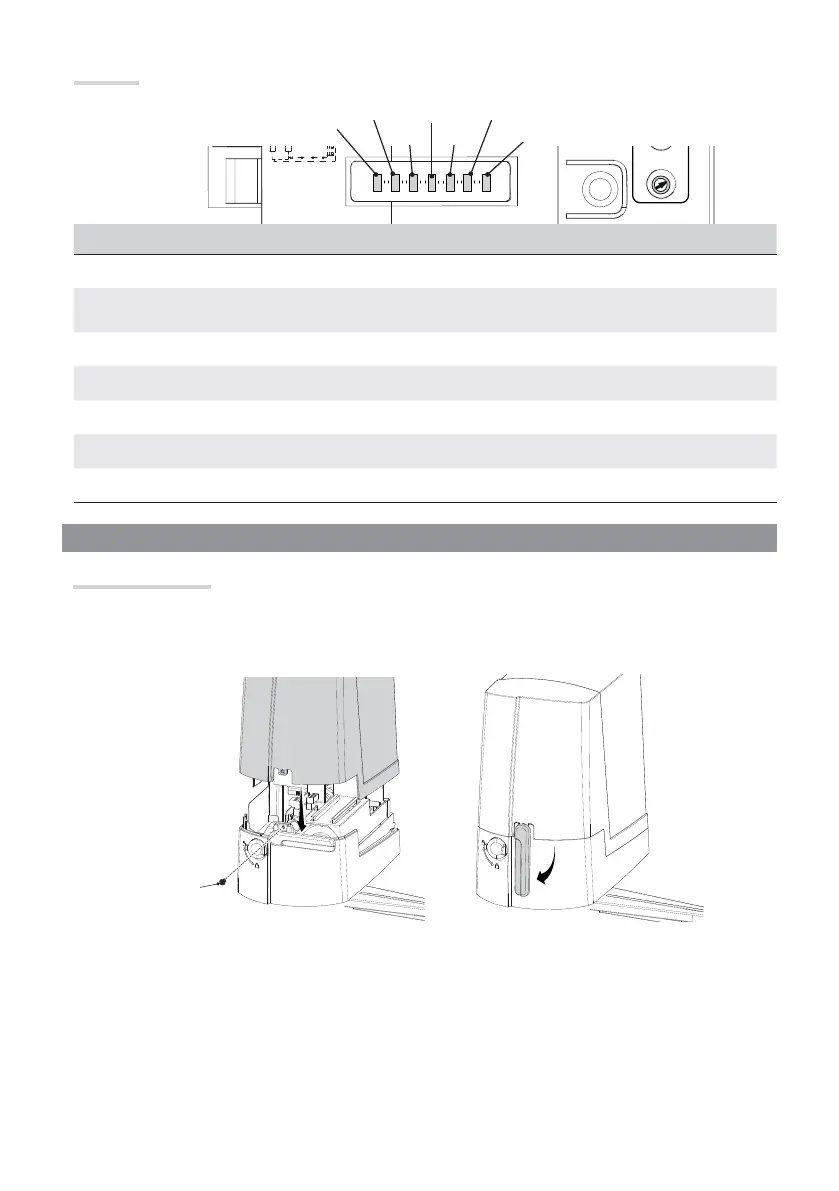

LEDs Description
PWR (Green)
It warns about the voltage running through the control control board.
PROG (Red)
It warns about the functions' programming phases, the automatic closing waiting time and of any
errors/malfunctions. .
1 (Yellow)
It warns that contact 1-2 (NC) is open (STOP button).
3P (Yellow)
It warns that contact 2-3P (NO) is closed (partial opening button).
7 (Yellow)
It warns that contact 2-7 (NO) is closed (command button).
C1/ON (Yellow)
It warns that contact 2-C1 (NC) is open (photocells) / Function enabled.
CX/OFF (Yellow)
It warns that contact 2-CX (NC) is open (photocells) / Function disabled.
Fastening the cover
Once the electrical connections and set up are done, fit the cover and fasten it using the supplied screws, then
reposition the release lever.
Alert LED
FINAL OPERATIONS
