CAME RBE4230 - Peripheral Connections; Transponder Connection; Keypad Connection

Page 7 - Manual FA01357-EN - 07/2019 - © CAME S.p.A. - The contents of this manual may be changed, at any time, and without notice. - Translation of the original instructions

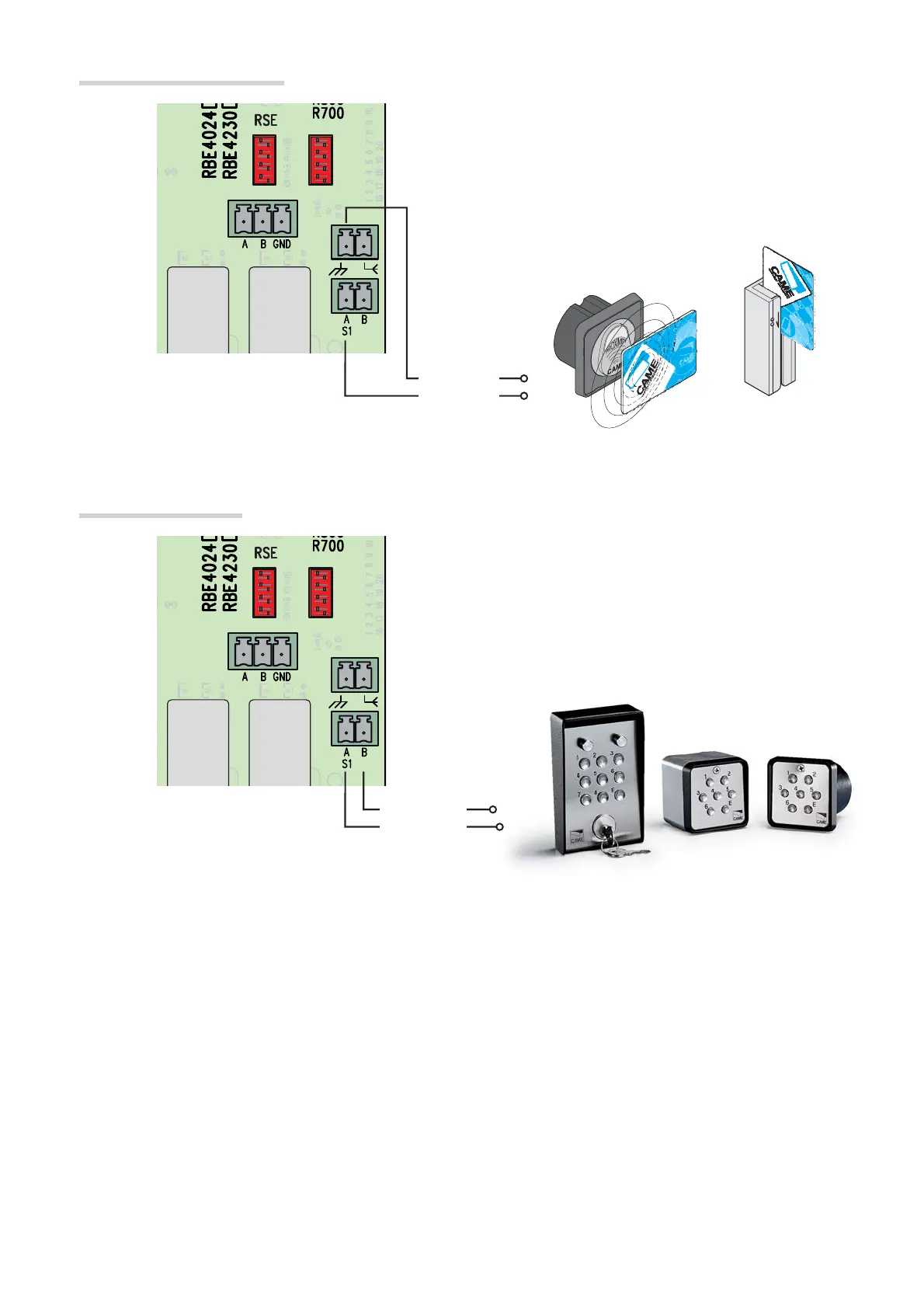

Keypad connection
Transponder connection
Fit the R800 card.
Connect the preferred keypad, while respecting the color code.
 Five keypads connected in parallel, maximum.
Fit the R700 card.
Connect the transponder sensor or the preferred card reader,
while respecting the color code.
 Two transponders connected in parallel, maximum.
Red
Blue
Black
White
