PROGRAMMING
F 2 OUT1 command mode
F 3 OUT2 command mode
F 4 OUT3 command mode
F 5 OUT4 command mode
F 6 OUT1 command duration
F 7 OUT2 command duration
F 8 OUT3 command duration
F 9 OUT4 command duration
F 10 CRP address
F 11 RS485 serial-bus speed
F 12 Set clock
F 13 Store in Memory Roll
F 14 Copy from Memory Roll
F 15 Rolling Code store mode
F 16 PIN
U 1 Store Users
U 2 Delete Users
U 3 Delete all users
U 4 Code Decoding
A 4 Reset
H 1 Firmware version
Menu map

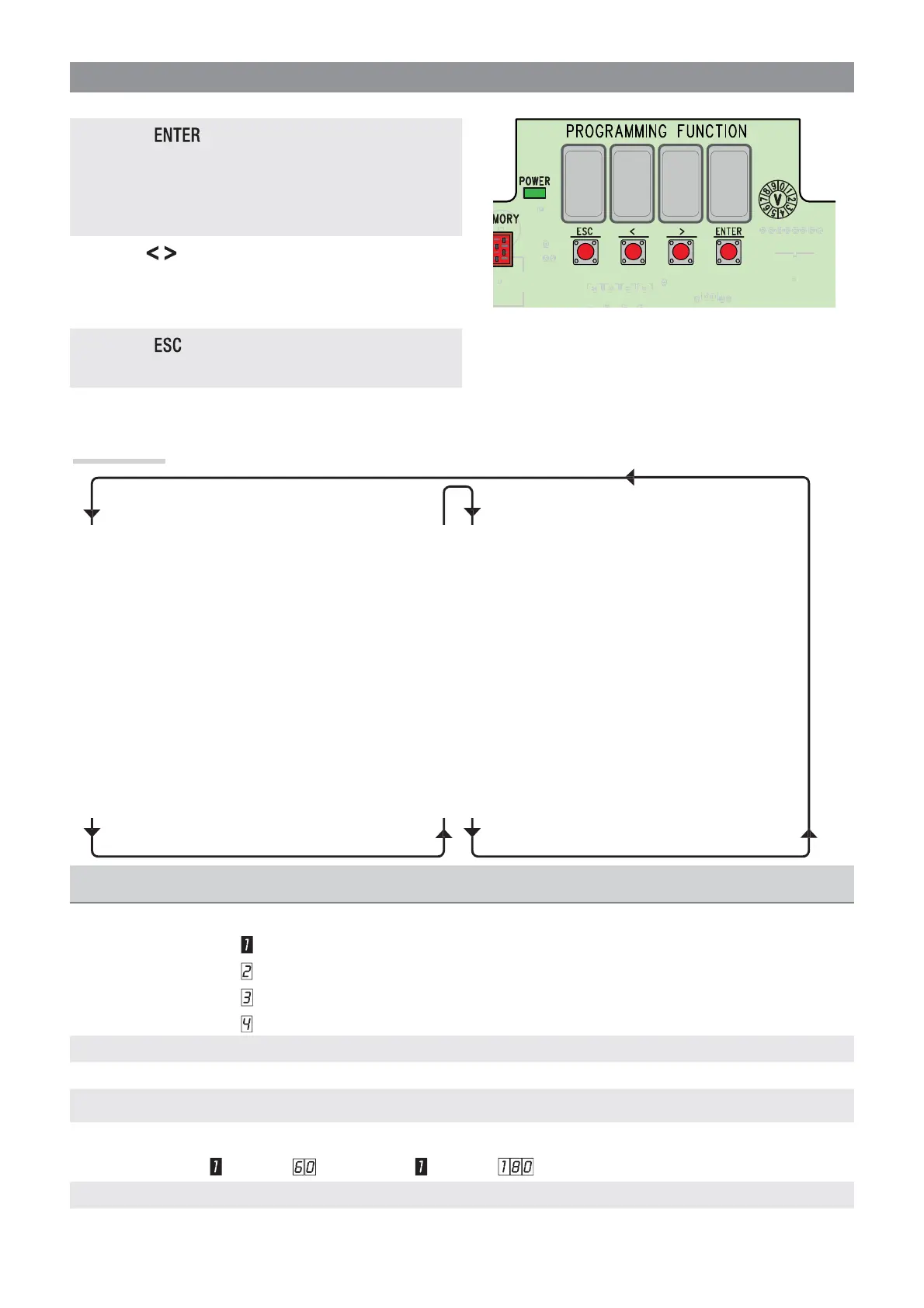

Function Descripton ( the default values appear with a black backdrop )
F 2
OUT1 command mode. To choose the output's command mode.
[
] Maintained Action Mode.
[
] Timer Mode 1 <−> 60 seconds.
[
] Timer Mode 1 <−> 180 minutes.
[
] Step-by-Step Mode.
F 3 OUT2 command mode. See [ F 2 ].
F 4 OUT3 command mode. See [ F 2 ].
F 5 OUT4 command mode. See [ F 2 ].
F 6
OUT1 command duration. To set the duration of the timer command, if it is set.
[
…<−>… ] Seconds / [ …<−>… ] Minutes
F 7 OUT2 command duration. See [ F 6 ].
F 8 OUT3 command duration. See [ F 6 ].
The key is for
• entering the programming
• entering single menus
• confirming/saving the values you have set
The keys
are for
• moving from one item to another
• increasing or decreasing values
The key is
for exiting the menus without saving
any changes
