Cameo DROP B4 - DMX DELAY AND STANDALONE MODES; DMX DELAY SETUP AND GROUPING; STANDALONE STATIC MODE

9
DMX
DEUTSCHFRANCAIS
ESPAÑOL
ENGLISH
ITALIANO POLSKI
DMX Address
001
Mode
Auto
Mode
Static
Mode
Color Macro
Mode
User Color
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Settings
System Info
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Settings
System Info
DMX Mode
3 CH
4 CH
6 CH
7 CH
13CH01
13CH02
20 CH
Static
Dimmer
Strobe
Red
Green
Blue
White
Amber
UV
Color x
Dimmer
Strobe
Red
Green
Blue
White
Amber
UV
DMX Address
001 - 510
Fixture Status
Stand Alone
Static
Color Macro
User Color
Auto
Color Macro
Color O
Red
Amber
Yellow W
Yellow
Green
Turquoise
Cyan
Blue
Lavender
Mauve
Magenta
Pink
Warm White
White
Cold White
Stand Alone
Static
Color Macro
User Color
Auto
User Color
Color 1
|
Color 8
Stand Alone
Static
Color Macro
User Color
Auto
Program x
Dimmer
Speed
Auto
Program 1
|
Program 6
Stand Alone
Static
Color Macro
User Color
Auto
-------- Menu --------
DMX Address
DMX Mode
DMX Delay
Stand Alone
Settings
System Info
DMX Delay ------
Group 0
by DMX? No/Yes
Delay 0.0s
------
DMX Delay ------
Group 0
by DMX? No
Delay 0.0s
------
DMX Delay ------
Group 0
by DMX? No
Delay 0.0s - 2.0s
------
By DMX? -------
--------
Warning! Delay
is controllable
by DMX now!
-------- Menu --------
DMX Address
DMX Mode
DMX Delay
Stand Alone
Settings
System Info
DMX Delay ------
Group 0
by DMX? Yes
Delay 0.0s
------
DMX Delay ------
Group 0
by DMX? Yes
------
-------- Menu --------
DMX Address
DMX Mode
DMX Delay
Stand Alone
Settings
System Info
-------- Menu --------
DMX Address
DMX Mode
DMX Delay
Stand Alone
Settings
System Info
-------- Menu --------
DMX Address
DMX Mode
DMX Delay
Stand Alone
Settings
System Info
-------- Menu --------
DMX Address
DMX Mode
DMX Delay
Stand Alone
Settings
System Info
-------- Menu --------
DMX Address
DMX Mode
DMX Delay
Stand Alone
Settings
System Info

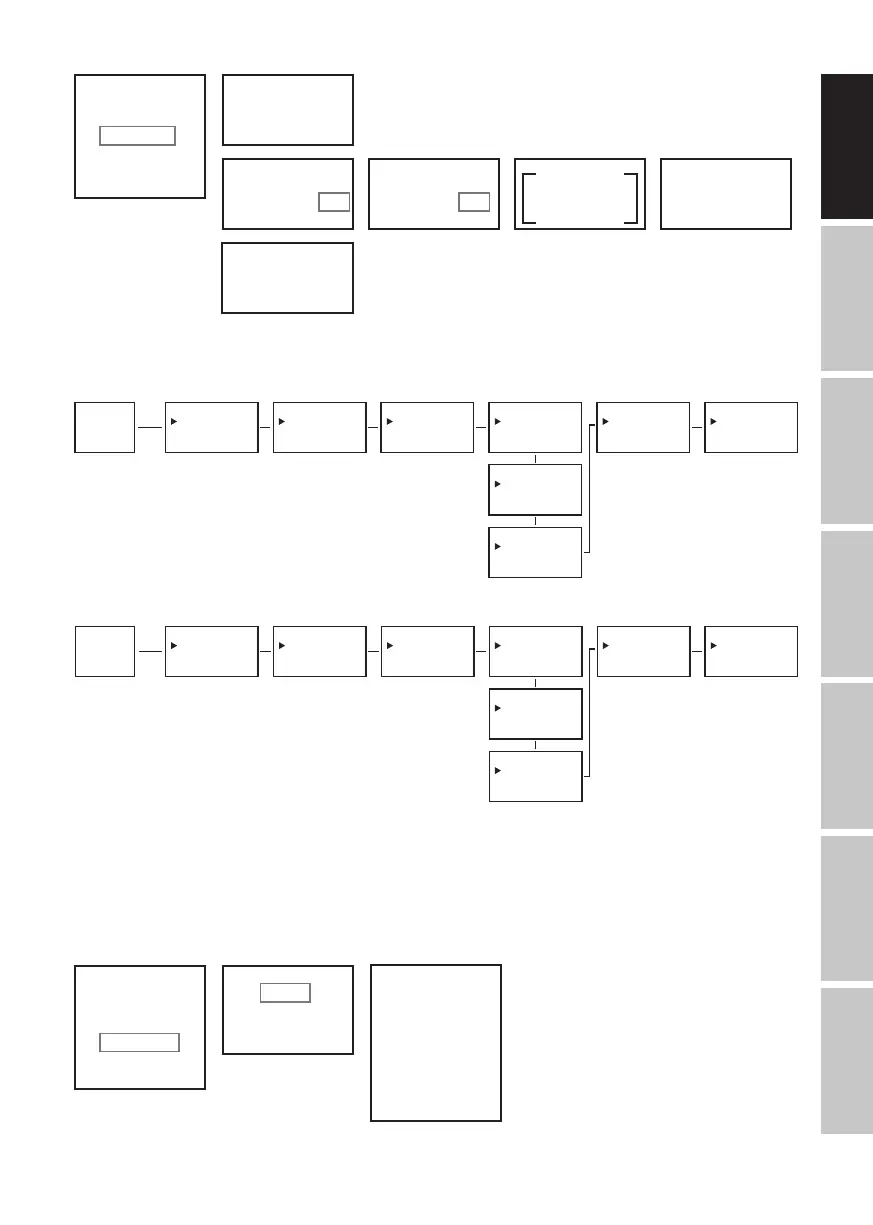

Assign the spotlights to the desired groups (maximum group number depends on the activated DMX operating mode). Multiple spotlights
may be assigned to one group. The group number is also the factor by which the set delay time is multiplied (see setup example).
Delay ----------
Group 0
by DMX? No
Delay 0.0s
---------
Delay ----------
Group 1
by DMX? No
Delay 1.5s
---------
Delay ----------
Group 2
by DMX? No
Delay 1.5s
---------
Delay ----------
Group 3
by DMX? No
Delay 1.5s
---------
Delay ----------
Group 3
by DMX? No
Delay 1.5s
---------
Delay ----------
Group 3
by DMX? No
Delay 1.5s
---------
Delay ----------
Group 4
by DMX? No
Delay 1.5s
---------
Delay ----------
Group 5
by DMX? No
Delay 1.5s
---------
Scheinwerfer(gruppe) 0
kein Delay
Scheinwerfer(gruppe) 1
1,5s Delay
Scheinwerfer(gruppe) 2
3s Delay
Scheinwerfer(gruppe) 3
4,5s Delay
Scheinwerfer(gruppe) 4
6s Delay
Scheinwerfer(gruppe) 5
7,5s Delay
DMX
Controller
Delay ----------
Group 0
by DMX? Yes
---------
Delay ----------
Group 1
by DMX? Yes
---------
Delay ----------
Group 2
by DMX? Yes
---------
Delay ----------
Group 3
by DMX? Yes
---------
Delay ----------
Group 3
by DMX? Yes
---------
Delay ----------
Group 3
by DMX? Yes
---------
Delay ----------
Group 4
by DMX? Yes
---------
Delay ----------
Group 5
by DMX? Yes
---------
Scheinwerfer(gruppe) 0
kein Delay
Scheinwerfer(gruppe) 1
0,5s Delay
Scheinwerfer(gruppe) 2
1s Delay
Scheinwerfer(gruppe) 3
1,5s Delay
Scheinwerfer(gruppe) 4
2s Delay
Scheinwerfer(gruppe) 5
2,5s Delay
DMX
Controller
DMX Delay
0.5s
Delay ----------
Group 0
by DMX? No
Delay 0.0s
---------
Delay ----------
Group 1
by DMX? No
Delay 1.5s
---------
Delay ----------
Group 2
by DMX? No
Delay 1.5s
---------
Delay ----------
Group 3
by DMX? No
Delay 1.5s
---------
Delay ----------
Group 3
by DMX? No
Delay 1.5s
---------
Delay ----------
Group 3
by DMX? No
Delay 1.5s
---------
Delay ----------
Group 4
by DMX? No
Delay 1.5s
---------
Delay ----------
Group 5
by DMX? No
Delay 1.5s
---------
Scheinwerfer(gruppe) 0
kein Delay
Scheinwerfer(gruppe) 1
1,5s Delay
Scheinwerfer(gruppe) 2
3s Delay
Scheinwerfer(gruppe) 3
4,5s Delay
Scheinwerfer(gruppe) 4
6s Delay
Scheinwerfer(gruppe) 5
7,5s Delay
DMX
Controller
Delay ----------
Group 0
by DMX? Yes
---------
Delay ----------
Group 1
by DMX? Yes
---------
Delay ----------
Group 2
by DMX? Yes
---------
Delay ----------
Group 3
by DMX? Yes
---------
Delay ----------
Group 3
by DMX? Yes
---------
Delay ----------
Group 3
by DMX? Yes
---------
Delay ----------
Group 4
by DMX? Yes
---------
Delay ----------
Group 5
by DMX? Yes
---------
Scheinwerfer(gruppe) 0
kein Delay
Scheinwerfer(gruppe) 1
0,5s Delay
Scheinwerfer(gruppe) 2
1s Delay
Scheinwerfer(gruppe) 3
1,5s Delay
Scheinwerfer(gruppe) 4
2s Delay
Scheinwerfer(gruppe) 5
2,5s Delay
DMX
Controller
DMX Delay
0.5s
STANDALONE MODE STATIC
The standalone mode Static allows the Dimmer, Strobe, R, G, B, W, A and UV values to be set directly on the device with values between 000
and 255, in a similar way to with a DMX controller. In this way, an individual scene can be created without an additional DMX controller.
Starting from main display 1, press MENU to enter the main menu. Now use the controls UP and DOWN to select the menu item Stand
Alone and confirm with ENTER. Again use UP and DOWN to select the standalone mode Static and confirm with ENTER. Using UP and
DOWN, now select the menu item that you wish to edit and confirm with ENTER. You can use UP and DOWN to configure the desired value
between 000 and 255. The strobe effect values correspond to those in channel 2 of the DMX table 4CH and channel 3 of tables 13CH1 and
20CH. Confirm with ENTER.
