Cameron ORBIT GP-19 - Groove Numbers for Ring Type Joint (RG;RTJ) Flanges

10
Valve Number of Fastener Length of Studs Number of Fastener Length of Studs Number of Fastener Length of Studs
Size Fasteners Diameter RF RTJ Fasteners Diameter RF RTJ Fasteners Diameter RF RTJ
in. Per Valve in. in. in. Per Valve in. in. in. Per Valve in. in. in.
1 8 3/4 5 5 8 7/8 5 5 - - - -
1 1/2 8 1 5 1/2 5 1/2 8 1 5 1/2 5 1/2 - - - -
2 16 7/8 5 3/4 5 3/4 16 7/8 5 3/4 5 3/4 16 1 7 7
3 x 2 x 3 16 7/8 5 3/4 5 3/4 16 1 1/8 7 7 16 1 1/4 9 9 1/4
3 16 7/8 5 3/4 5 3/4 16 1 1/8 7 7 16 1 1/4 9 9 1/4
4 x 3 x 4 16 1 1/8 6 3/4 6 3/4 16 1 1/4 7 3/4 7 3/4 16 1 1/2 10 1/4 10 3/4
4 16 1 1/8 6 3/4 6 3/4 16 1 1/4 7 3/4 7 3/4 16 1 1/2 10 1/4 10 3/4
6 x 4 x 6 24 1 1/8 7 1/2 7 1/2 24 1 3/8 10 1/4 10 1/2 16 2 13 3/4 14 1/2
6 24 1 1/8 7 1/2 7 1/2 24 1 3/8 10 1/4 10 1/2 16 2 13 3/4 14 1/2
8 x 6 x 8 24 1 3/8 8 3/4 8 3/4 24 1 5/8 11 1/2 12 3/4 24 2 15 1/4 16
8 24 1 3/8 8 3/4 8 3/4 24 1 5/8 11 1/2 12 3/4 24 2 15 1/4 16
10 x 8 x 10 - - - - 24 1 7/8 13 1/4 13 1/2 24 2 1/2 19 1/2 20 1/2
10 32 1 3/8 9 1/4 9 1/4 24 1 7/8 13 1/4 13 1/2 - - - -
12 x 10 x 12 - - - - 32 2 14 3/4 15 1/4 - - - -
12 40 1 3/8 10 10 32 2 14 3/4 15 1/4 - - - -
14 x 12 x 14 40 1 1/2 10 3/4 11 - - - - - - - -
16 x 12 x 16 - - - - 32 2 1/2 17 1/2 18 1/2 - - - -
16 x 14 x 16 40 1 5/8 11 1/4 11 1/2 - - - - - - - -
ASME/ANSI CLASS 900 CLASS 1500 CLASS 2500
RG/RTJ GROOVE NUMBERS
Size in. ASME/ANSI Class Groove Numbers
1 600 R16
1 1/2 600, 900 & 1500 R20
2 600 R23
2 900 & 1500 R24
2 2500 R26
3 600 & 900 R31
3 1500 R35
3 2500 R32
4 600 & 900 R37
4 1500 R39
4 2500 R38
6 600 & 900 R45
6 1500 R46
6 2500 R47
8 600 & 900 R49
8 1500 R50
8 2500 R51
10 600 & 900 R53
10 1500 R54
12 600 & 900 R57
12 1500 R58
14 600 R61
16 600 R65
18 600 R69
20 600 R73

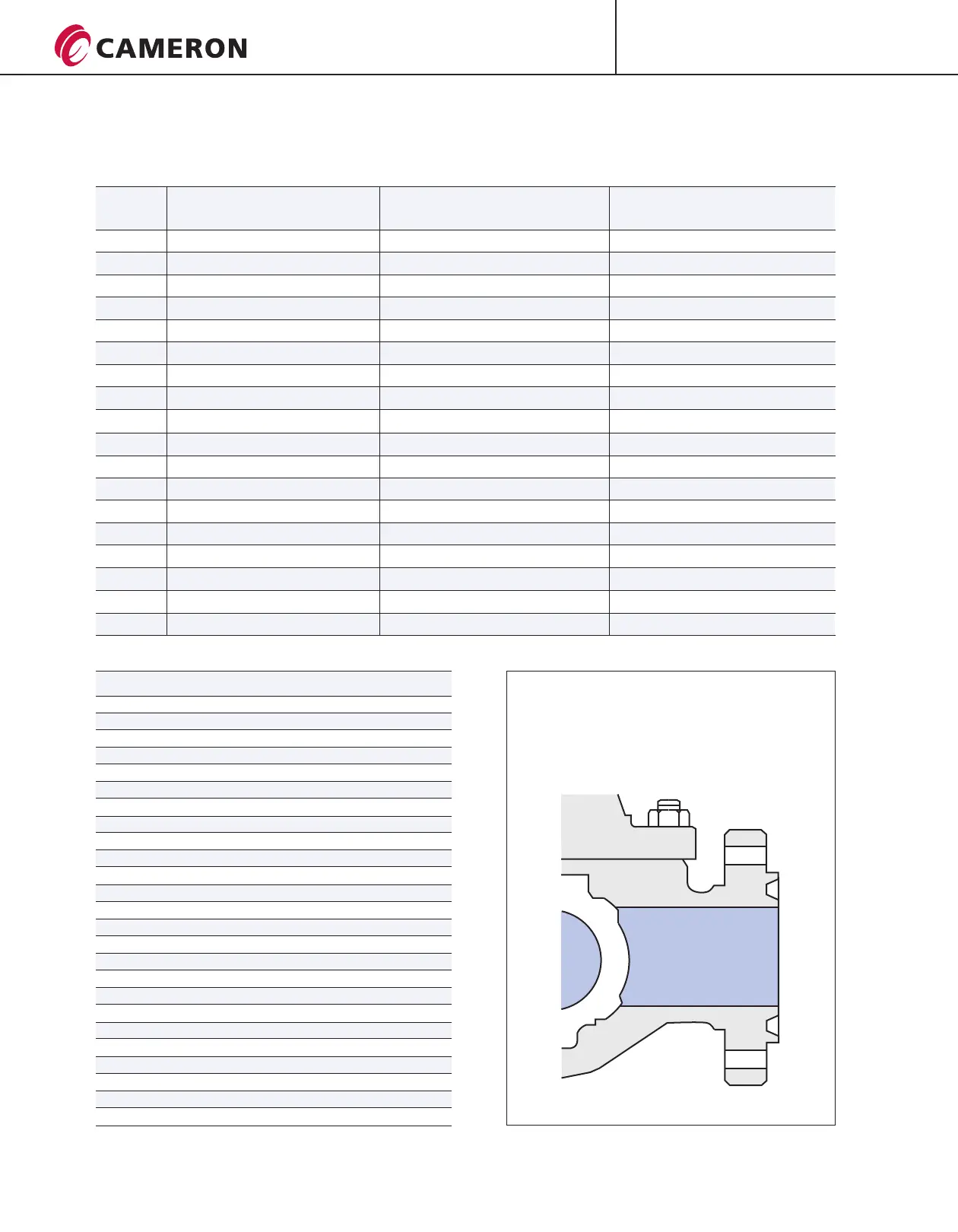

TYPICAL RING TYPE
GROOVED FLANGED
P R O C E S S V A L V E S
INSTALLATION, OPERATION AND MAINTENANCE
END FLANGE BOLTING DIMENSION (CONTINUED FROM PREVIOUS PAGE)
CT-ORB-IOM/6
05/08 ION-3M
®
ORBIT
