Cameron ORBIT GP-6 - Lubrication and Actuator Fluid Management; Valve Lube Point Configurations

11

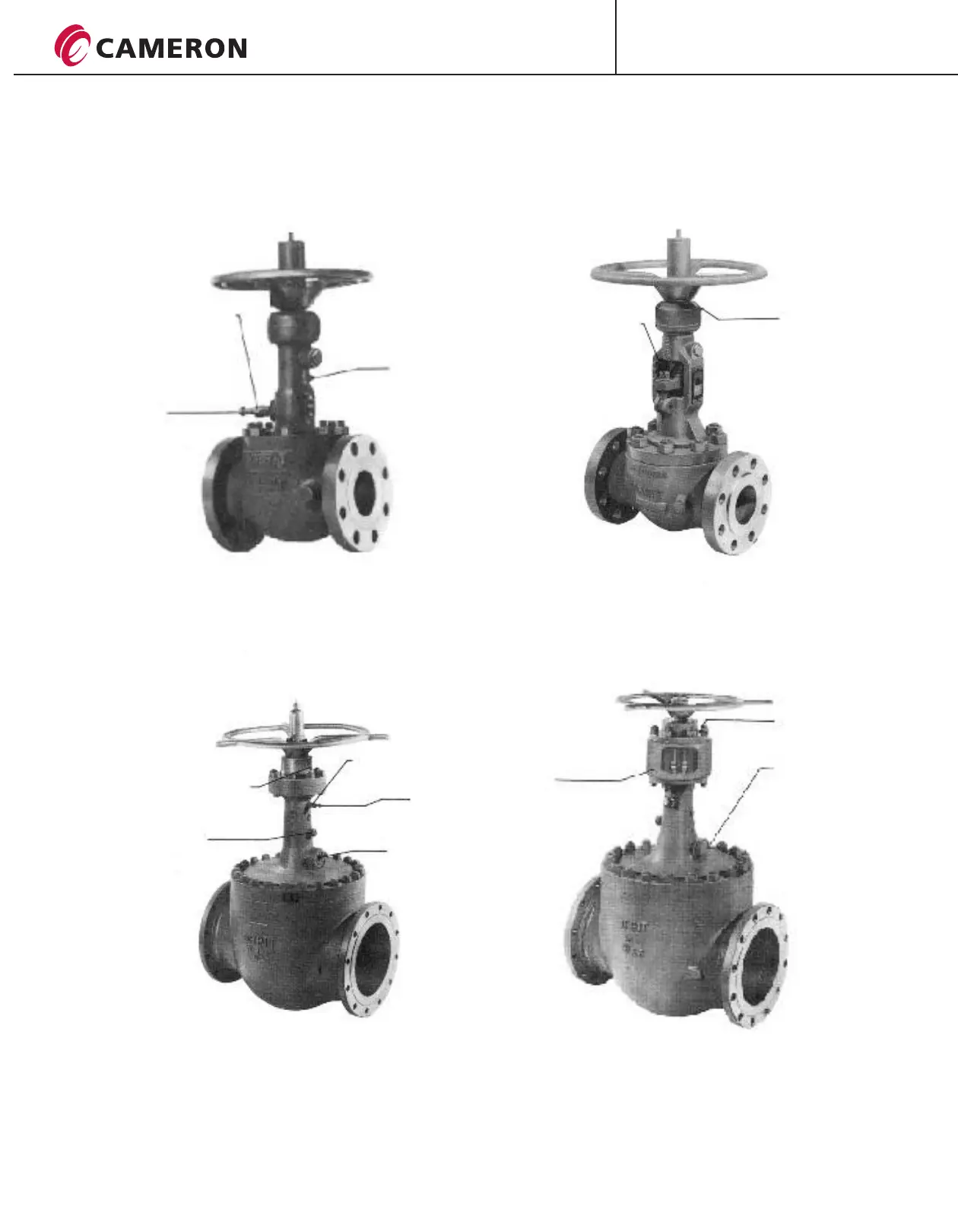

VALVES WITH TWO LUBE POINTS
SMALL BORE STANDARD SMALL BORE O.S.&Y.
*Personal injury and/or damage to property may result. Consult your ORBIT Representative for additonal information.
LARGE BORE STANDARD LARGE BORE O.S.&Y.
P R O C E S S V A L V E S
INSTALLATION, OPERATION AND MAINTENANCE
VALVES WITH ONE LUBE POINT
CT-ORB-IOM/6
05/08 ION-3M
®
ORBIT
PACKING
ADJUSTMENT BOLTS
DO NOT REMOVE
WHEN VALVE IS UNDER
PRESSURE
PACKING FITTING
NEVER REMOVE *
PACKING FITTING
NEVER REMOVE *
STEM GUIDE
* DO NOT RE-
MOVE WHEN
PRESSURIZED
STEM GUIDE
* DO NOT RE-
MOVE WHEN
PRESSURIZED
COVER
REMOVE FOR
PACKING
ADJUSTMENT*
PACKING
ADJUSTMENT
SCREW
PACKING
ADJUSTMENT
SCREW
LUBE POINT
LUBE POINT
UPPER LUBE POINT
UPPER
LUBE POINT
LOWER LUBE
FITTING
