11
TC-003001-10/ Rev 2
Minimum Disc/Pipe
Clearance X
ØD
30°

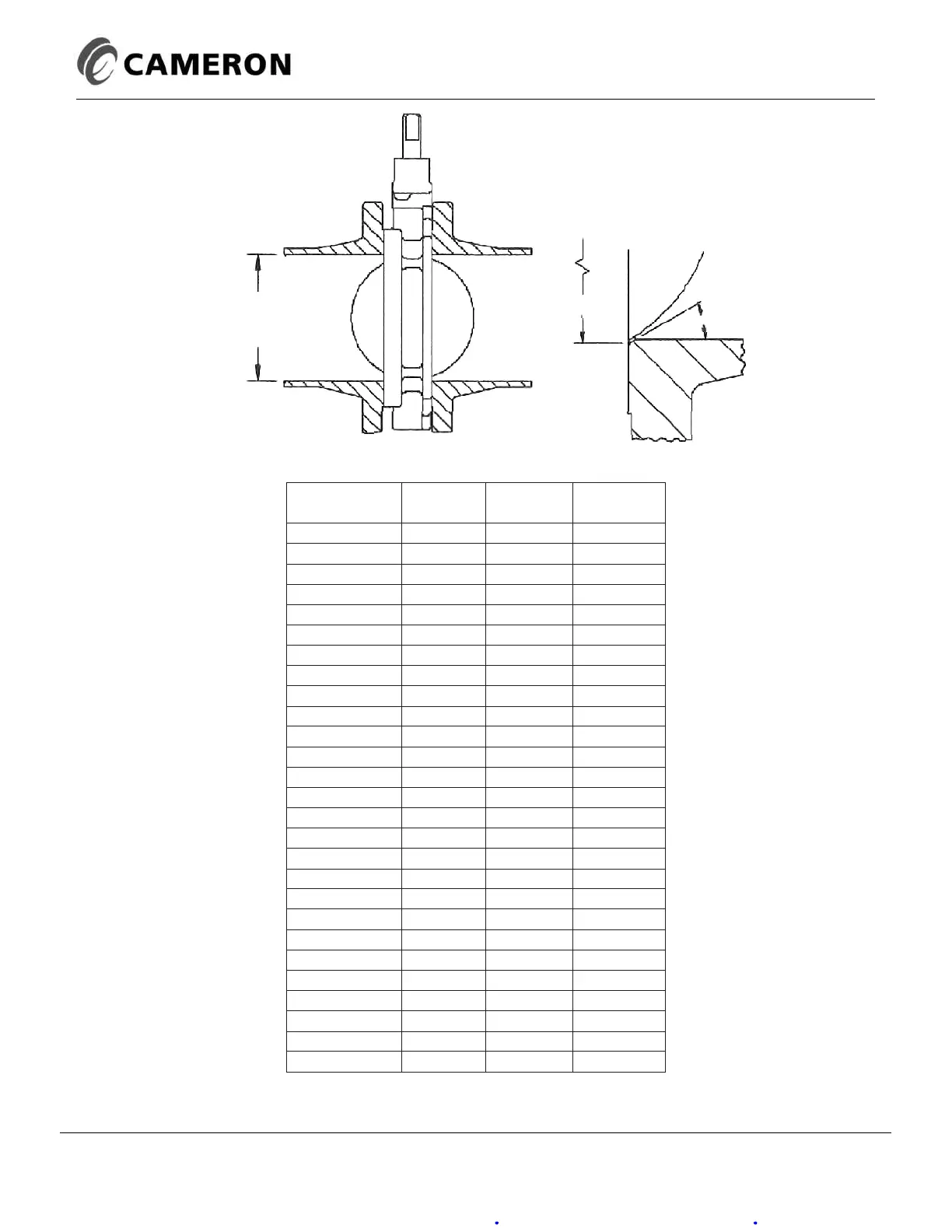

Figure 15
Table 7
Valve Size and
Class
Schedule
40
Schedule
80
Minimum
Pipe I.D.
2 1/2" - 150 X X 1.69
2 1/2" - 300 X X 1.69
3" - 150 X X 2.63
3" - 300 X X 2.63
4" - 150 X X 3.65
4" - 300 X X 3.65
5" - 150 X X 4.61
5" - 300 X X 4.61
6" - 150 X 5.83
6" - 300 X 5.83
8" - 150 X 7.87
8" - 300 X X 7.65
10" - 150 X 9.85
10" - 300 X X 9.60
12" - 150 X 11.8
12" - 300 X 11.63
14" - 150 X 12.55
14" - 300 X X 12.4
16" - 150 X 14.45
16" - 300 X X 14.23
18" - 150 X 16.45
18" - 300 X X 16.05
20" - 150 X 18.12
20" - 300 X X 17.82
24" - 150 X 21.71
24" - 300 X X 21.5
36" - 150 X 34.12
