Cameron WKM MB - Bill of Materials

3
TC-003001-10/ Rev 2
BILL OF MATERIALS
Item Description Item Description
1 Body 16 Stem Pins
2
SeatRetainer 17 Disc Spacer
3
Seat Retainer O-ring 18 Stem Key (8" - 24")
4
Stem/Disc Spring 19 Stem Retainer Pins
7
Stem Bearing 20 Packing Spacer
8
Nameplate 21 Gland Ring
9
GlandRetainer 22 Seat
10
Gland Retainer Stud 23 Packing Set
11
Gland Retainer Nut 25 Bottom Cover*
13
Stem 26 BottomCover Gasket*
14
Disc 27 Bottom Cover Screw*
15
Lower Stem*
*(10" 300 and larger and 12” 150 and larger) see Figure 3
Table 1
-
Cameron Valves' WKM 2 1/2"
-
24" Class 150 and 300 DynaCentric Wafer Valve Components

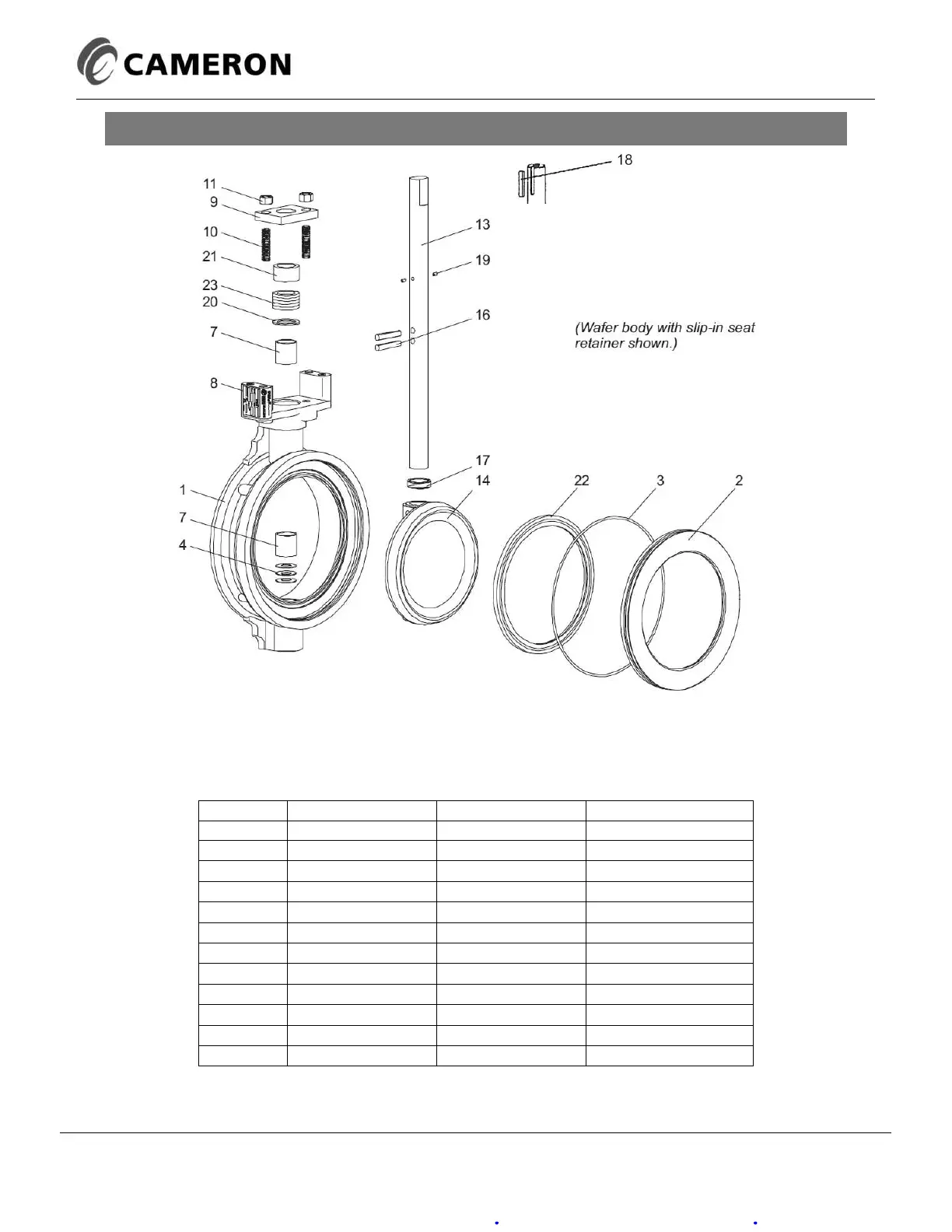

Figure 1 - Cameron Valves' WKM 2 1/2" - 24" Class
150 and 300 DynaCentric Wafer Valve Components
