Item Description Item Description
1 Body 16 Stem Pins
2
SeatRetainer 17 Disc Spacer
3a
Seat Retainer Screw 18 Stem Key (8" - 36")
4
Stem/Disc Spring 19 Stem Retainer Pins
7
Stem Bearing 20 Packing Spacer
8
Nameplate 21 Gland Ring
9
GlandRetainer 22 Seat
10
Gland Retainer Stud 23 Packing Set
11
Gland Retainer Nut 25 Bottom Cover*
13
Stem 26 BottomCover Gasket*
14
Disc 27 Bottom Cover Screw*
15
Lower Stem*

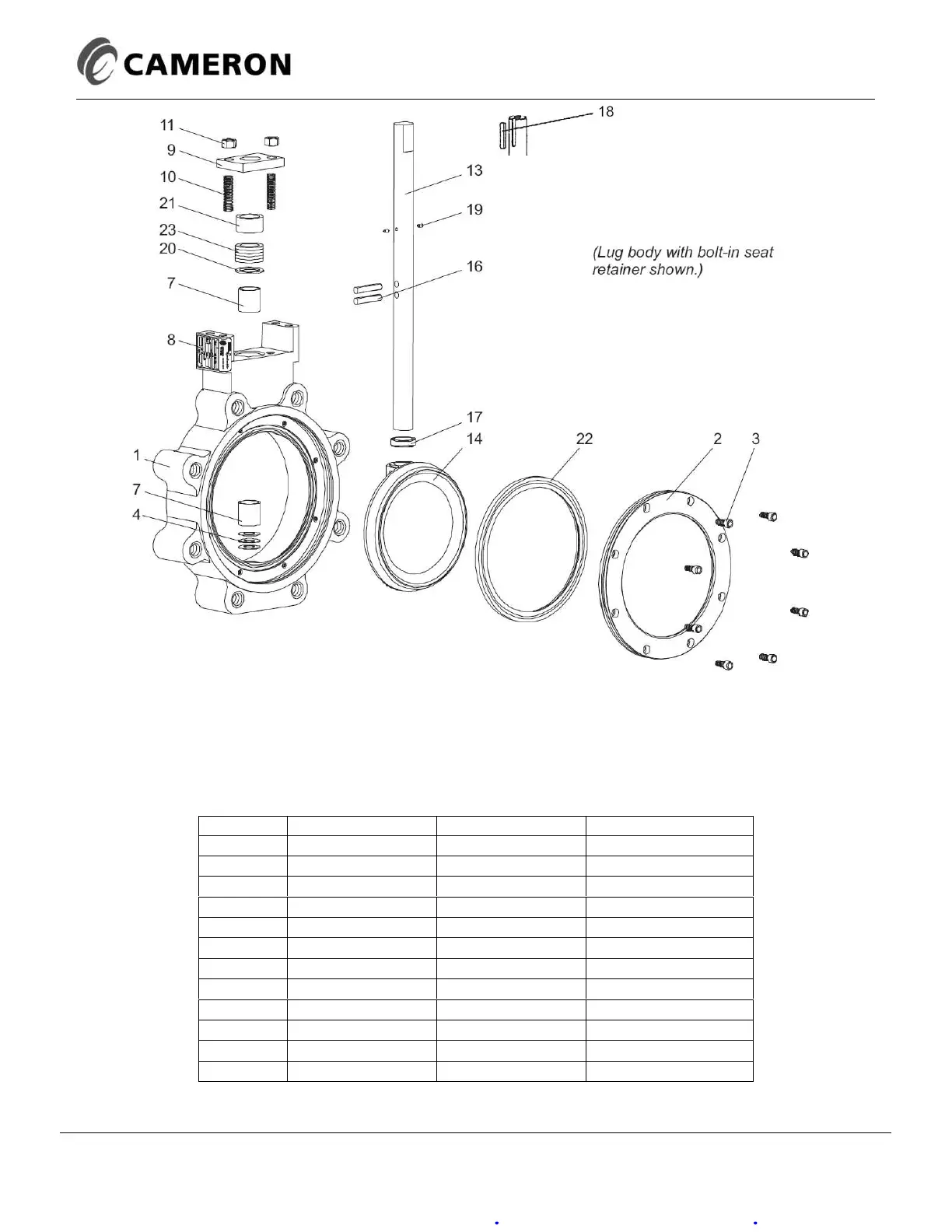

Figure 2 - Cameron Valves' WKM 2 1/2" - 36" Class
150 and 300 DynaCentric Lug Valve Components
Table 2 - Cameron Valves' WKM 2 1/2" - 36" Class 150 and 300 DynaCentric Lug Valve Components
*(10" 300 and larger and 12” 150 and larger)
see Figure 3
