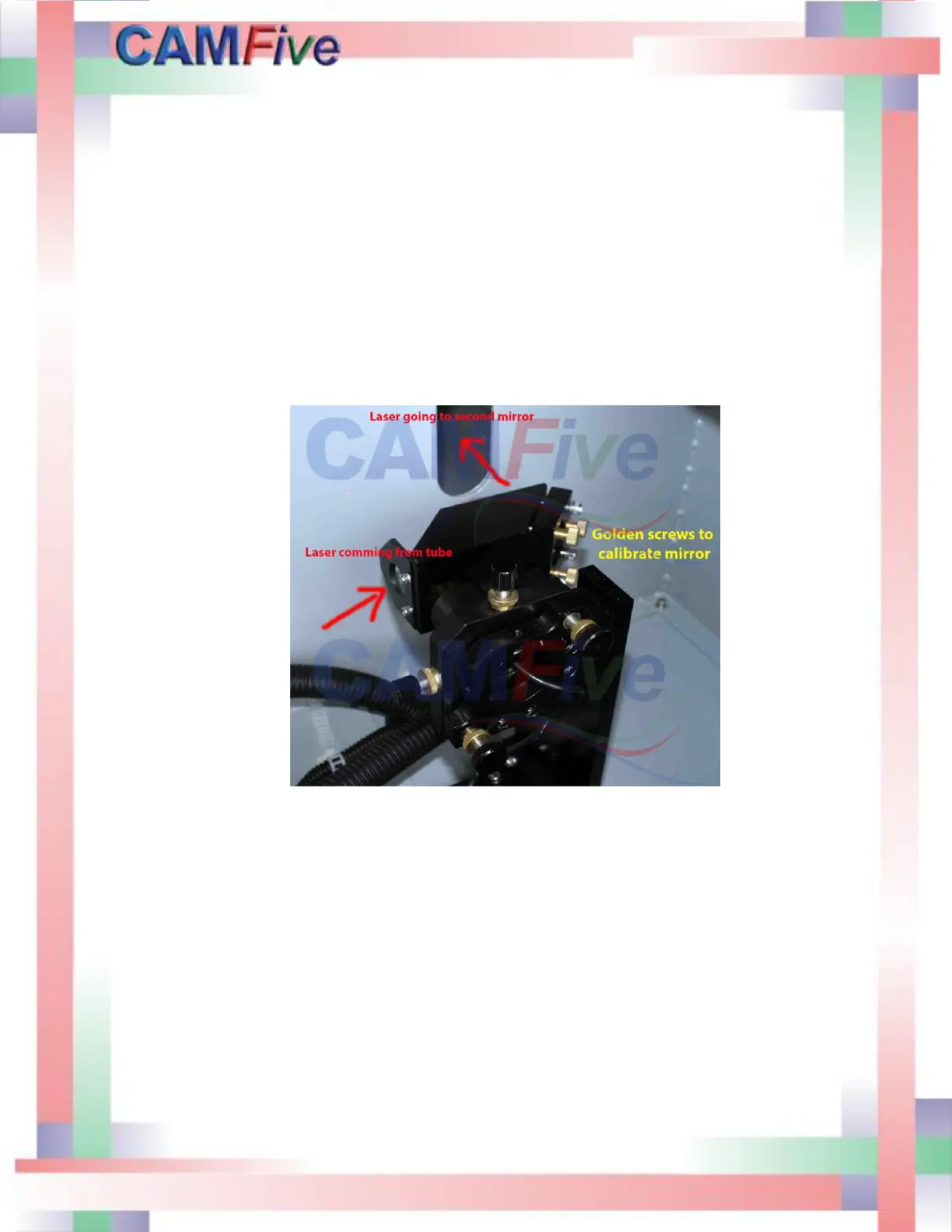

8. Once the tube has been aligned we will proceed to calibrate the first mirror. Put a piece
of tape on the second mirror ring (on the rail). By using the left and right arrows set the
laser pen in the center of the work area. Then, use the up/down arrows to move the X
rail close to the back of the cabinet about 8” away from the back of the cabinet. Press
the pulse key to see where the laser beam hits the tape. The top adjustment allows you
to move the mirror up and down in an angle the same effect does for the bottom one.
The center adjustment allows you to move left and right. Slightly move one of them to
see the direction the laser beam moves. Send another pulse to verify. Center the hole
like the first ring. Move the x Rail towards the front of the cabinet set another piece of
tape and send another pulse. Compensate as required to center the laser beam.
