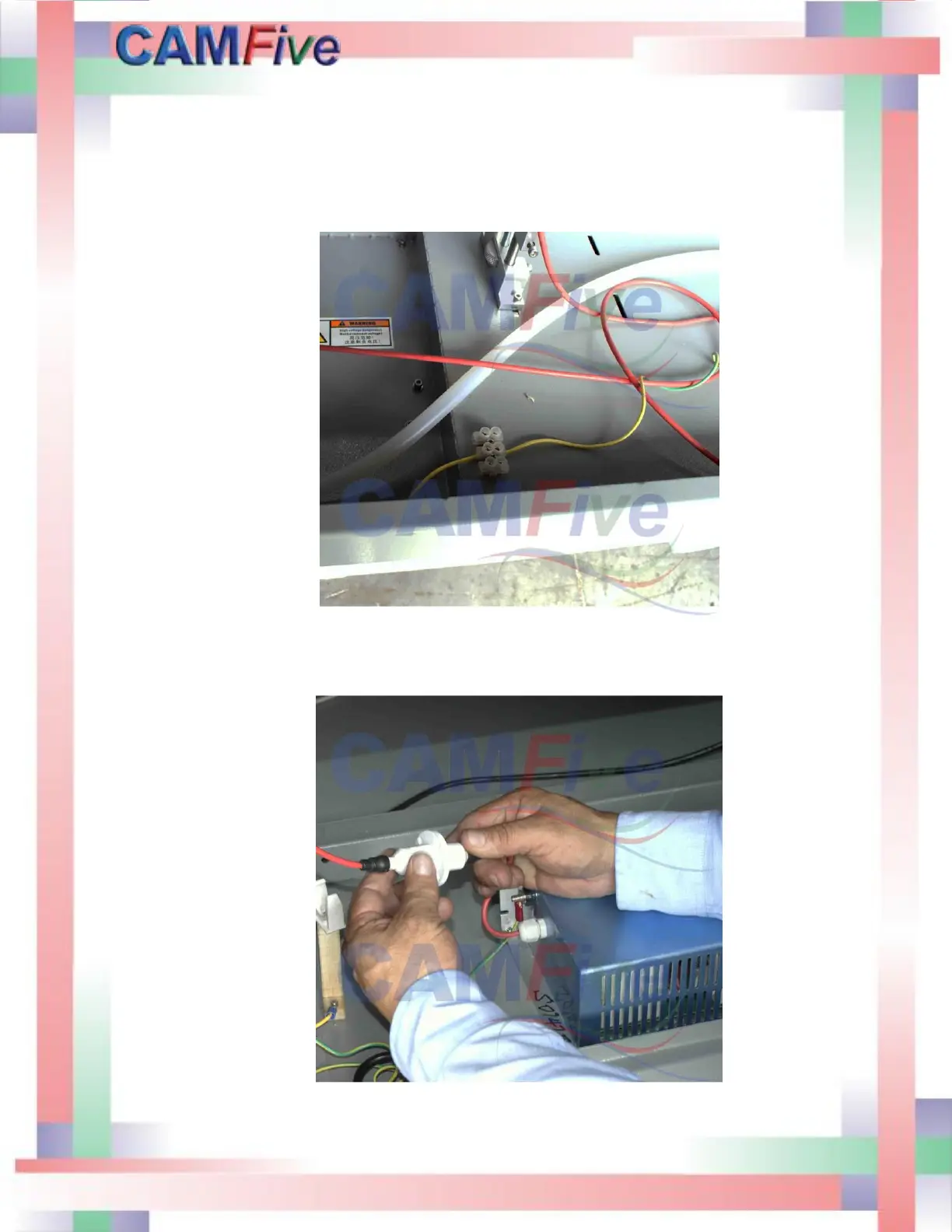

5. Connecting the laser tube to the power supply.
a. Connect the Cathode wire (yellow/green) to the contact bar as shown in the picture
below.
b. Connect the Anode (red wire) to the power supply.
