CALIBRATION
7. The first step is to set the max power on the control panel to 30% output power. This is
done by pressing the max power key pad and setting the percentage by using the left or
right arrows. Once is reached press Enter. Start the process by putting a piece of clear
tape (scotch tape) on the first mirror ring and pressing the pulse key pad on the control

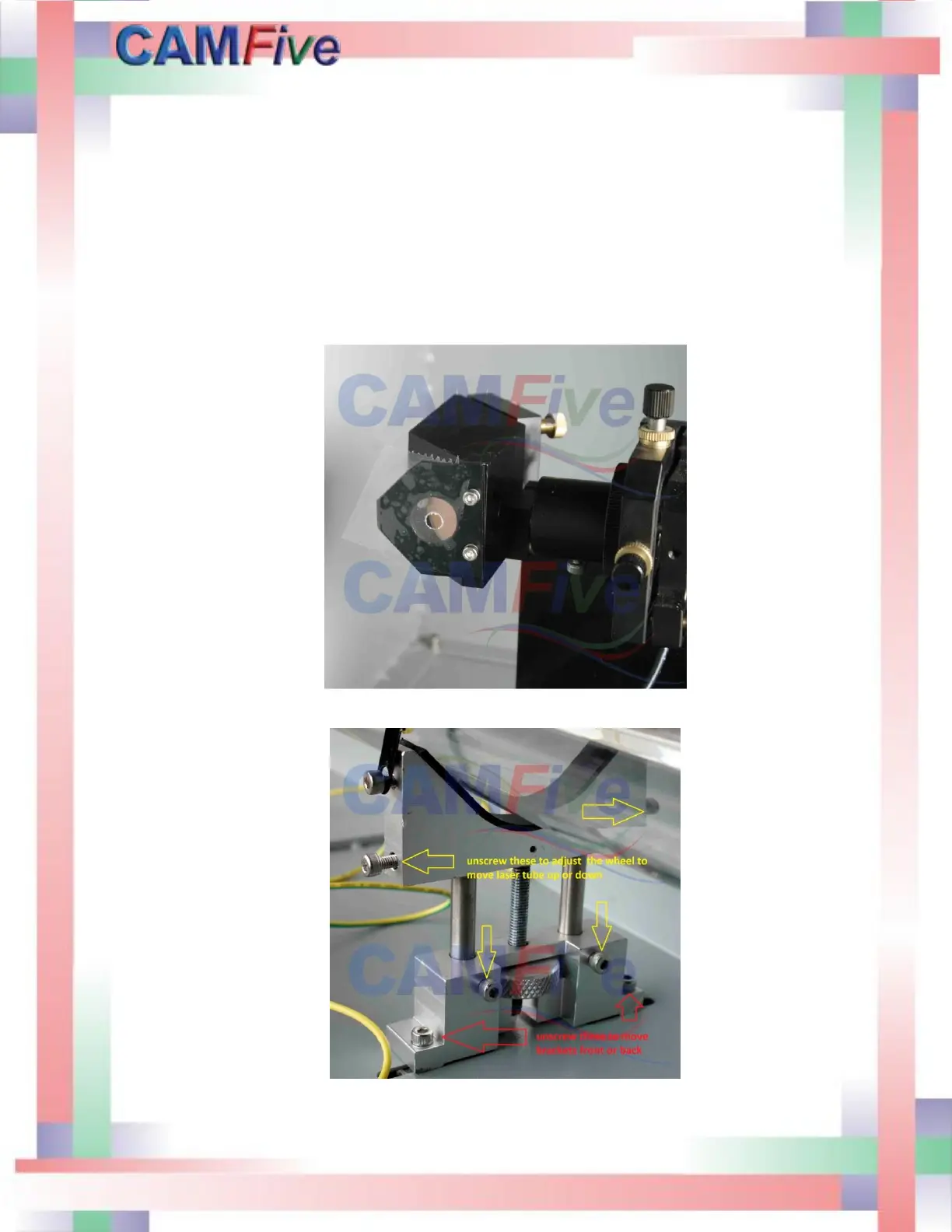

panel. The picture below shows how it has to look once the laser tube has been aligned
by using the bracket adjustments. The thumb knob allows you to move the tube up or
down and the screws on the side to move it back and forth.
The adjustments are described in the picture below.
