5

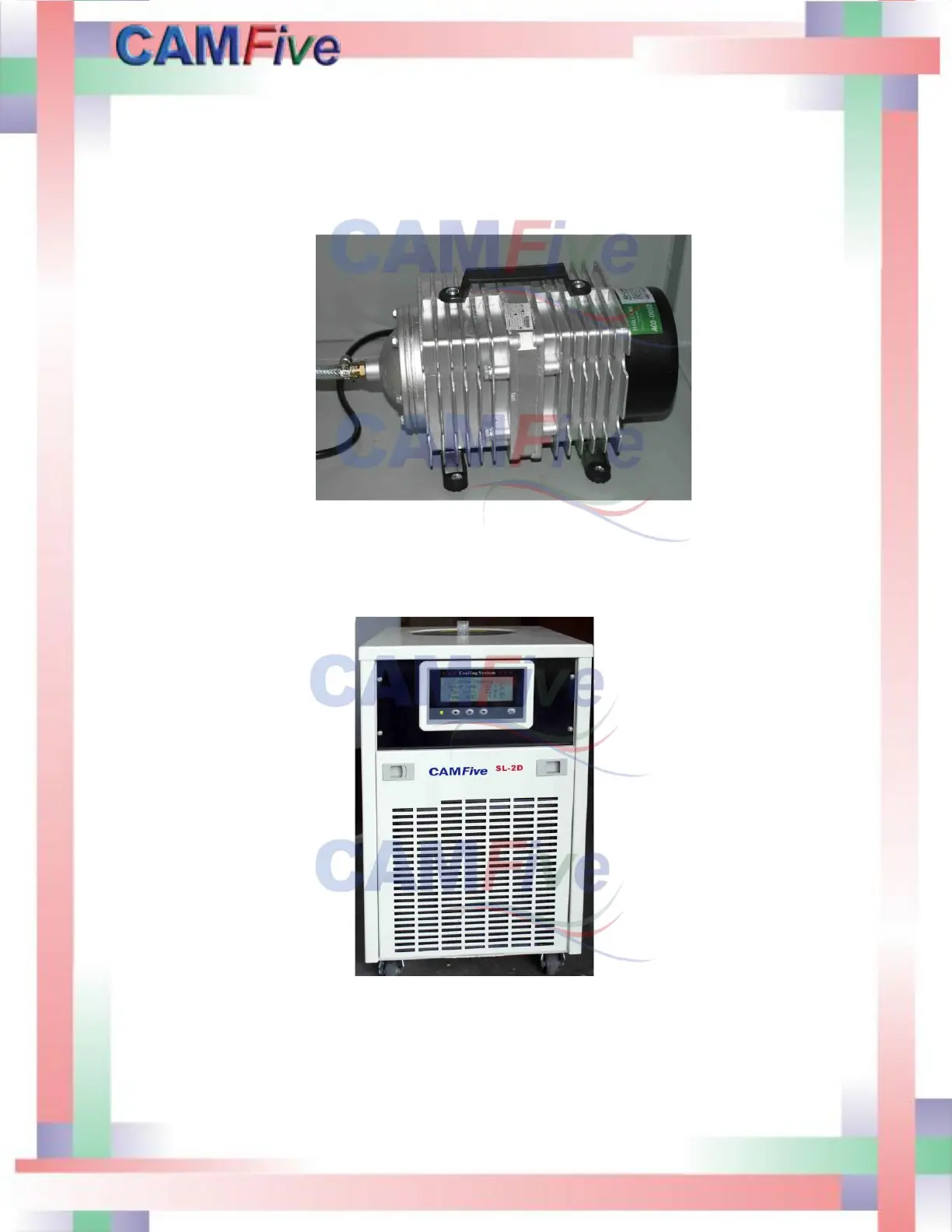

The air assist compressor will be installed outside the laser cabinet. A power strip attached to
the cabinet is also provided to power the air compressor and the water chiller.
The external water chiller is shown below.
The Chiller comes with two hoses that will be connected to the main assembly for
continuous water circulation to keep the laser tube at optimum working temperature. Regularly
about 18 °C to 25 °C depending on the environment temperature. Distilled water will be
required (1.5 gallons).
