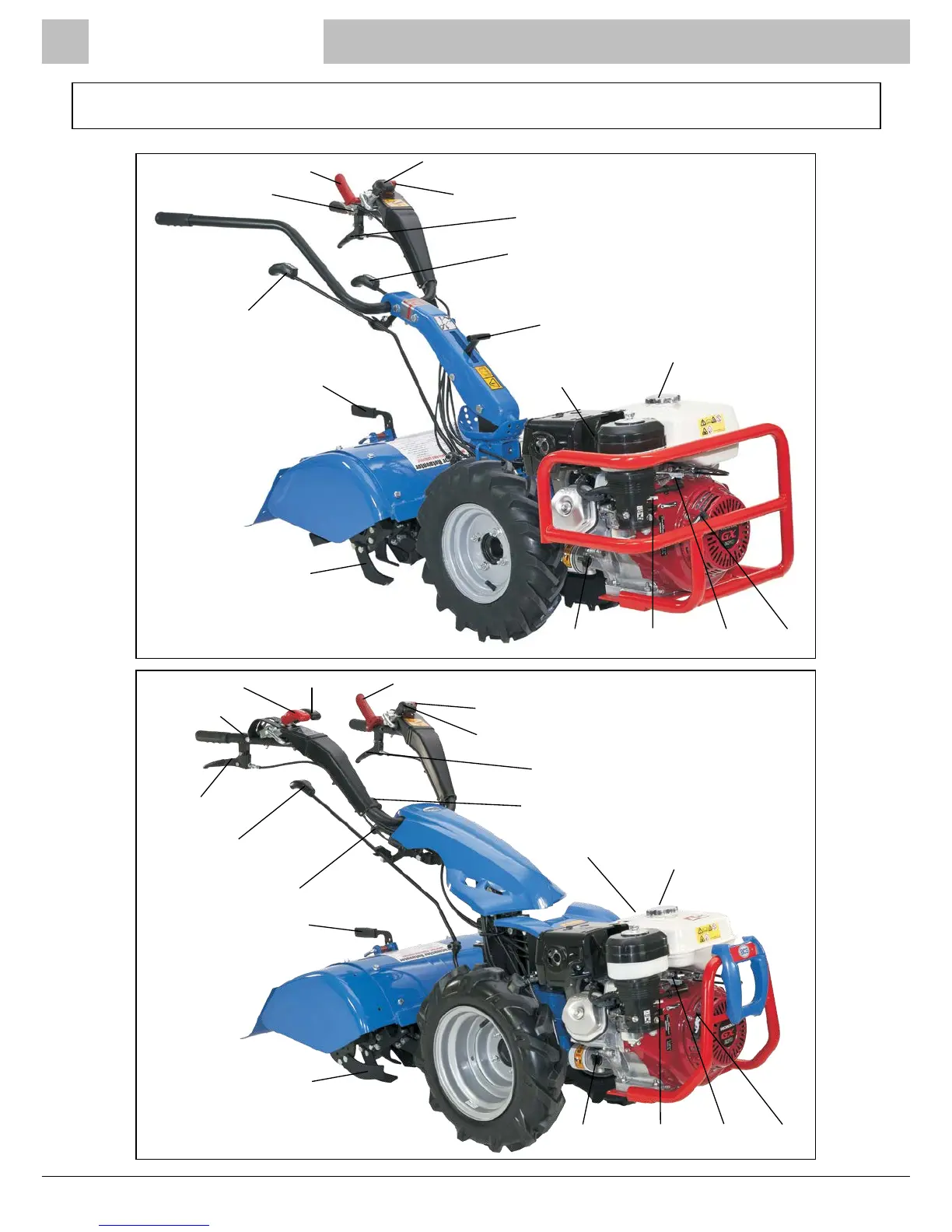

Machine Overview Diagram
Throttle lever
OPC lever
Parking brake lever
Engine stop lever
Clutch lever
Wheel speed lever
Handlebar adjuster
Digging knives
engagement lever
Gearbox oil level
Petrol cap
Engine oil
level
Choke
lever
Fuel
tap
Recoil
starter
Depth adjuster
Digging knives
C6 & C8
Throttle lever
OPC lever
Parking brake lever
Engine stop lever
Clutch lever
Wheel speed lever
Digging knives
engagement lever
Gearbox oil level
Petrol cap
Engine oil
level
Choke
lever
Fuel
tap
Recoil
starter
Depth adjuster
Digging knives
C10P
Handlebar adjuster
Steering column
unlocking lever
Forward/reverse
lever
Differential lever
