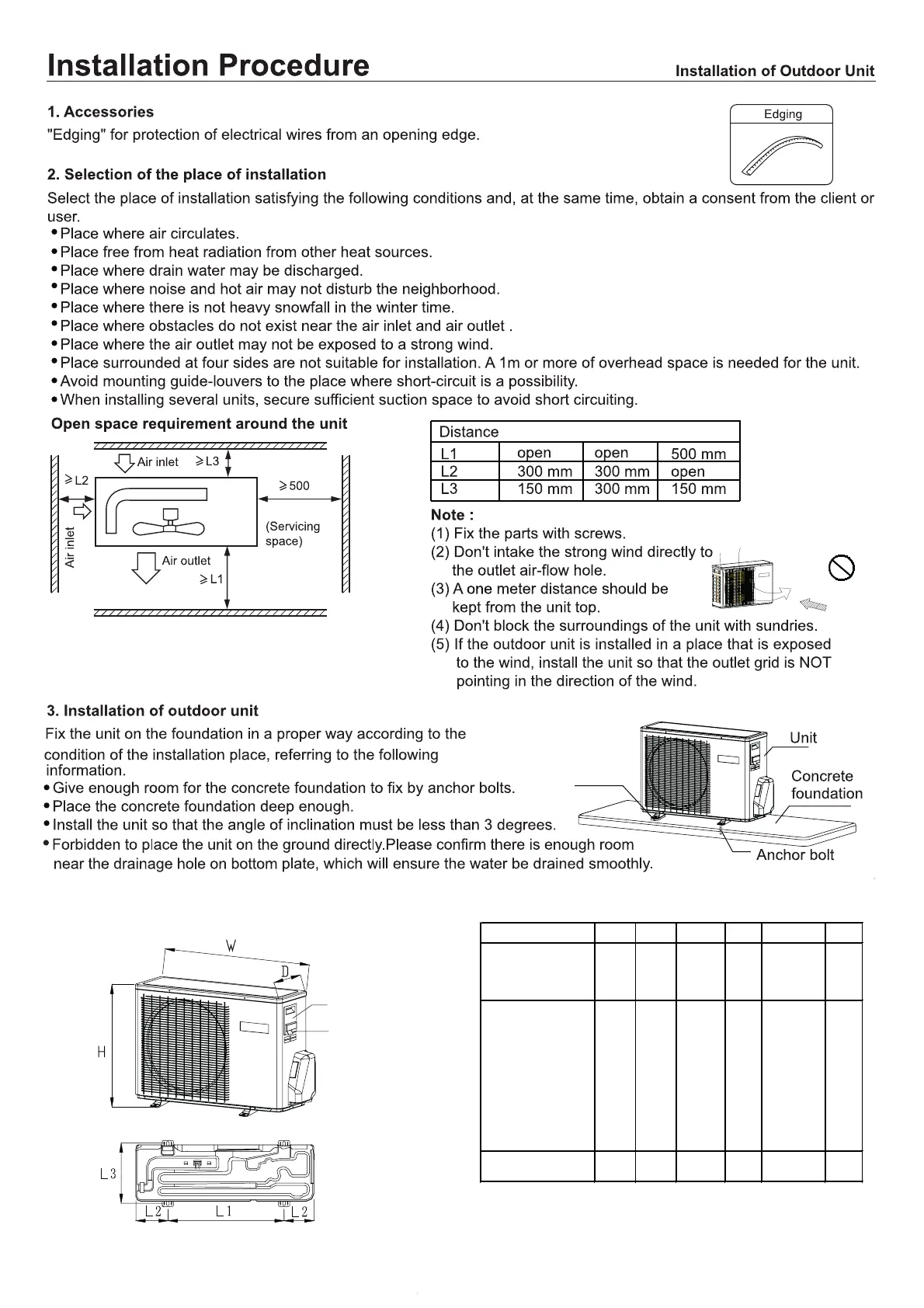

Candy CY-09FAOUT - Installation Procedure Steps; Air Tightness Test Procedure

NO
Wind direction
Air outlet
Model W D H L1 L2 L3
CY-09TA OUT
700 245 543.8 440 120/140 269
CY-12TA OUT
CY-18TA OUT
CY-24TA OUT
CY-09FAOUT
CY-12FAOUT
800 275 553 510 130/160 313
CY-2T14AOUT
CY-2T18AOUT
CY-2M14AOUT
CY-2M18AOUT
CY-18FAOUT
820 338 614 590 114.2 324
4.Installation dimension(Unit:mm)
Power Wiring Terminal
Power Wiring
Distribution Hole
Cushion rubber
21
