FITZROY & CANTERBURY INBUILT INSTALLATION INSTRUCTIONS

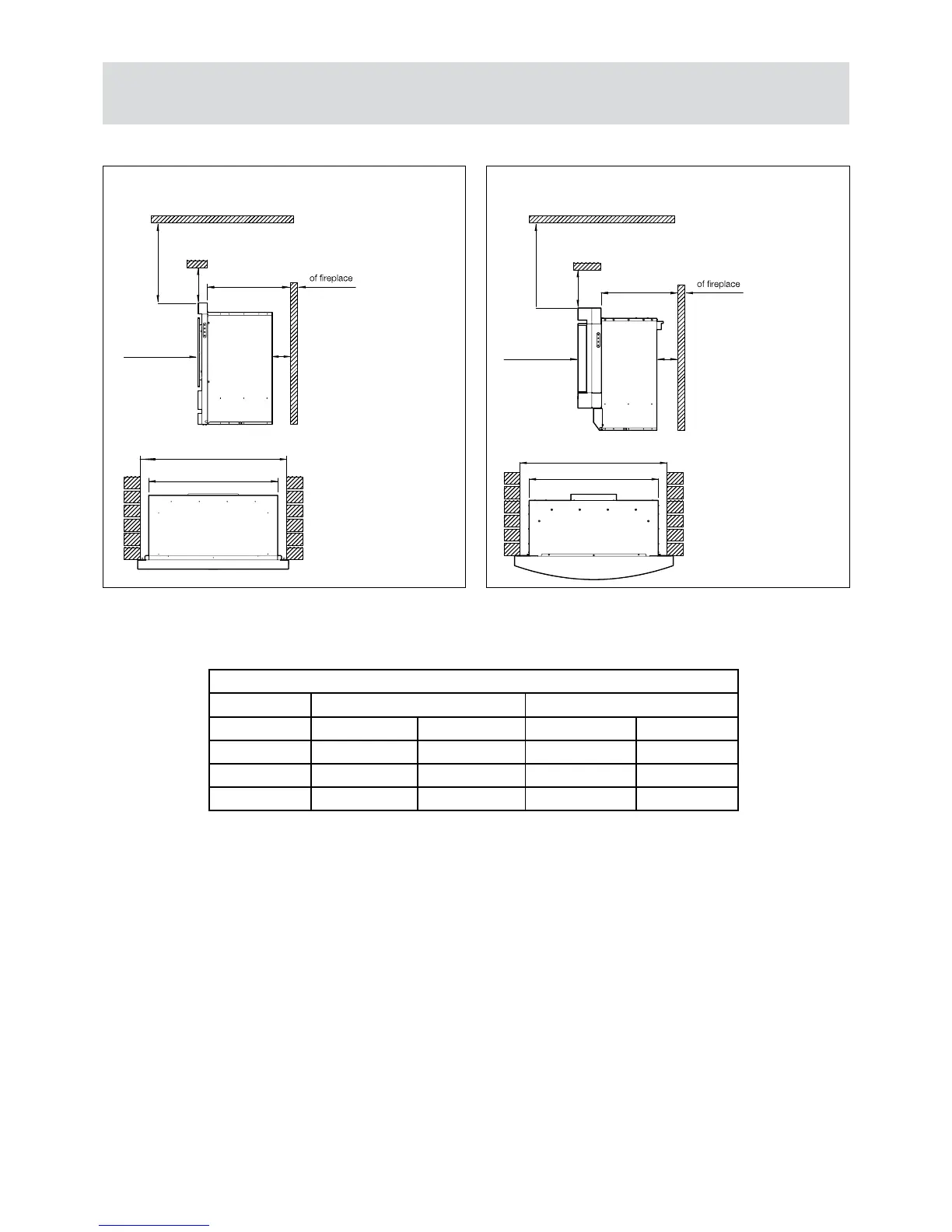

FIG 5 FITZIB-SMENB/FITZIB-SMEXB/FITZIB-SMEXP FIG 6 CANTIB-SDEEB
690 mm
808 mm
Ceiling
Mantle 300 mm min clearance
50 mm 347 mm 8 mm
651 mm 600 mm
405 mm min
900 mm min
clearance
1000 mm min clearance
50 mm
clearance
Rear wall
700 – 780 mm
298 mm850 mm
690 mm
700 – 790 mm
34 mm125 mm
655 mm
600 mm
Ceiling
Mantle 300 mm min clearance
900 mm min
clearance
Rear wall
380 mm
1000 mm min clearance
50 mm
clearance
For installations in
non combustible
enclosures.
For installations in
non combustible
enclosures.
Mock Fireplace Opening (Combustible materials)*
Fitzroy Inbuilt Canterbury Inbuilt
Max Min Max Min
Height 650 mm 630 mm 654 mm 630 mm
Width 780 mm 731 mm 790 mm 731 mm
Depth 600 mm 520 mm** 550 mm 470 mm**
*If you have larger opening than the maximum height indicated, a surround kit is recommended. **Includes 50mm clearance between flue spigot and rear wall
