Cannondale Jekyll - DROPOUT; Component Identification and Assembly

11
126560.PDF
DROPOUT
1
5
5
4
4
2
3
Before attachment, inspect the bearings to make sure they are in good condition.
Check the seat stay If the bearings are damaged, remove them and replace them with new ones.
Always insert small end of pivot spacers into the bearings. The at side of the spacers face out.
Always insert a 5mm hex key completely into the axle bolts to prevent damage when turning the bolt.
Always tighten with a torque wrench to the specied torque.

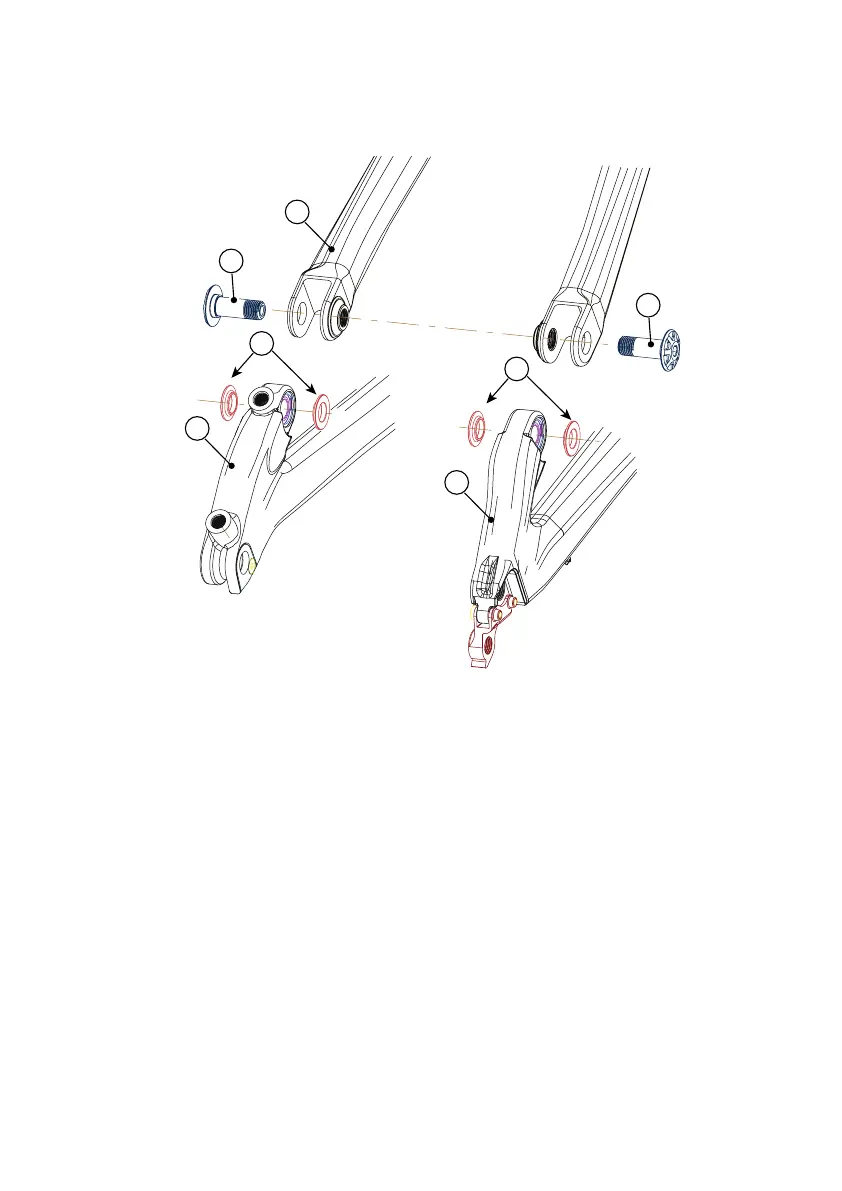

Identication
1. Seat Stay
2. Left Dropout
3. Right Dropout
4. Pivot Spacers
5. Pivot Axle Bolts
