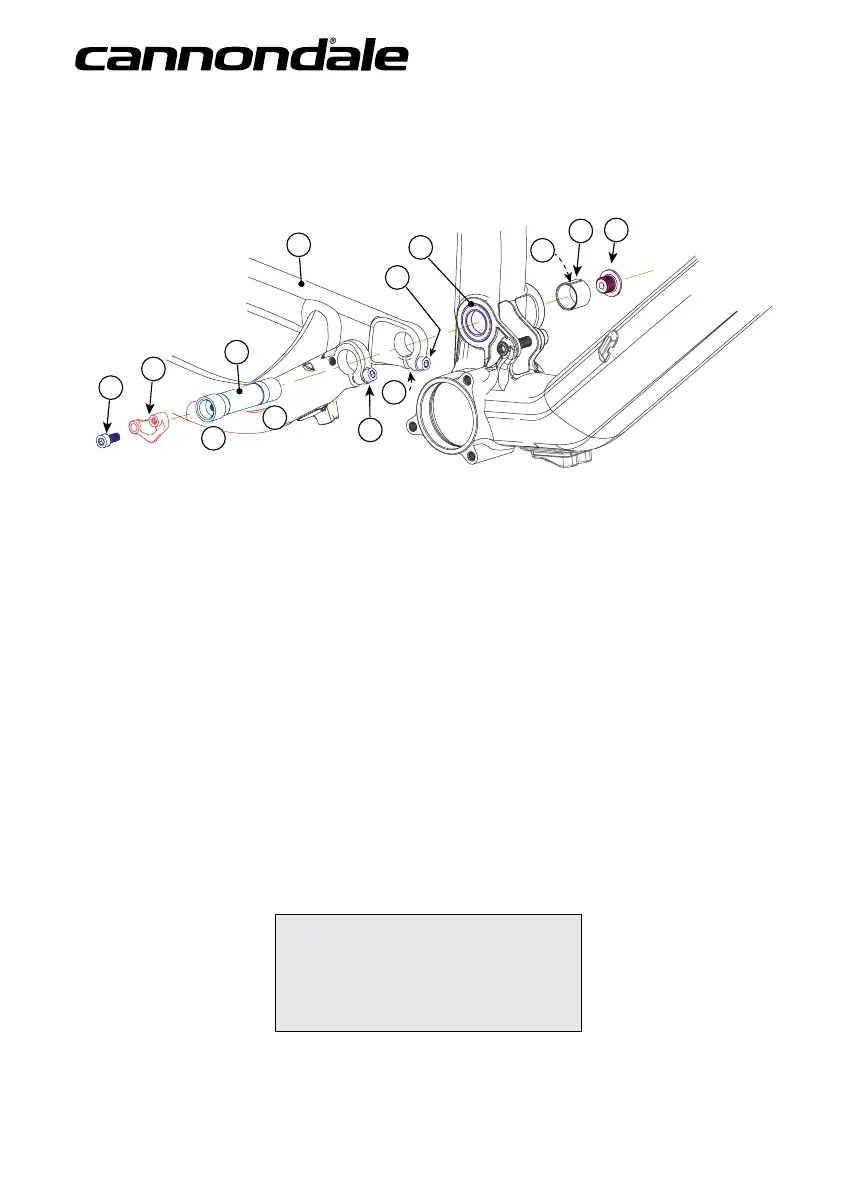

Cannondale Jekyll - MAIN PIVOT; Component Identification and Assembly

10
MAIN PIVOT
M5X20
1
6
4
a
8
M5X20
5
a
5
2
3
c
d
M5X12
7
Always loosen the pinch bolts rst.
Before assembly, inspect all bearings for good condition. Replace if necessary.
Always clean and apply Loctite 242 (blue) to the pinch bolt threads.
Always tighten with a torque wrench to 5 Nm, 44 InLbs.
NOTICE
Incorrect installation shims can result in play in the
linkage and accelerate wear or damage.
Do not over-tighten the pinch bolts.
Identication
1. Main Pivot Axle 8. Pinch bolts
2. FD Adapter (S3) 9. Main Pivot Screw
3. FD mount bolt a. gap
4. Main Shim b. bearing inner race
5. Pinch bolts c. large end
6. Bearing (61802-2RS, 15X24X5) d. small end
7. Chainstay
