Cannondale Jekyll - GEOMETRY; SPECIFICATION; Bicycle Geometry Data

12
Please note that the specications and information in this manual are subject to change for product improvement.
For the latest product information, go to http://www.cannondale.com/tech_center/

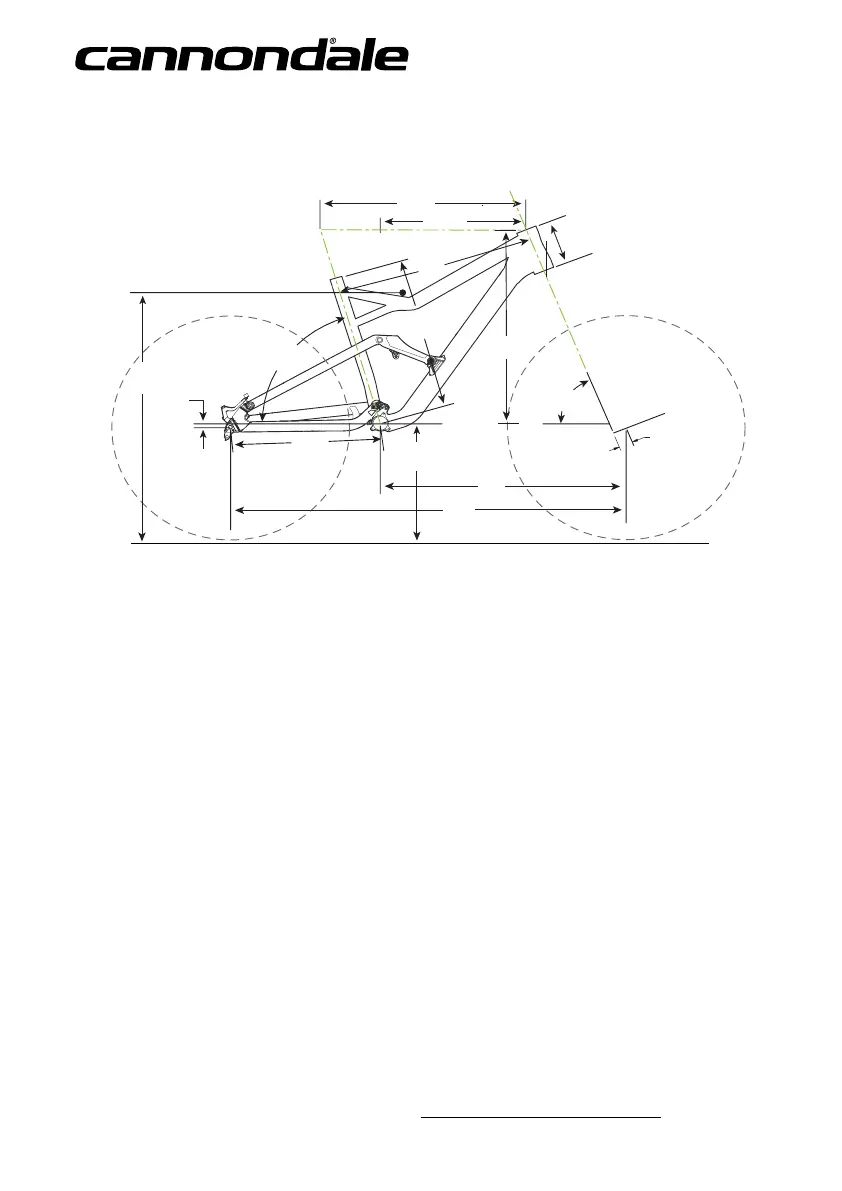

GEOMETRY /SPECIFICATION
A
B
K
REACH
STACK
H
I
J
F
L
M
F
G
E
C
Geometry
JEKYLL SCARLETT
SMALL MEDIUM LARGE XLARGE PETITE SMALL MEDIUM
A Seat Tube Length (cm/in) 43.2/17.0 45.7/18.0 48.3/19.0 50.8/20.0 40.7/16.0 43.2/17.0 45.7/18.0
B Top Tube Horizontal (cm/in) 55.6/21.9 58.8/23.1 61.4/24.2 64.2/25.3 54.0/21.3 55.6/21.9 57.2/22.5
C Top Tube Actual (cm/in) 53.4/21.0 56.4/22.2 59.1/23.3 61.8/24.3 52.1/20.5 53.4/21.0 54.9/21.6
D Head Tube Angle 67.7° 67.8° 67.9° 68.0° 67.6° 67.7° 67.8°
E Seat Tube Angle Eective 73.6°
* *
73.5° 73.7° 73.6°
*
F Standover (cm/in) 75.2/29.6 75.3/29.6 76.4/30.1 77.7/30.6 71.8/28.3 72.4/28.5 73.0/28.7
G Head Tube Length - (cm/in) 13.4/5.3
* *
16.0/6.3 13.4/5.3
* *
H Wheelbase (cm/in) 110.0/43.3 113.1/44.5 115.5/45.5 118.4/46.6 108.6/42.8 110.0/43.3 113.1/44.5
I Front Center (cm/in) 67.2/26.5 70.3/27.7 72.7/28.6 75.6/29.8 65.8/25.9 67.2/26.5 70.3/27.7
J Chain Stay Length (cm/in) 42.8/16.9
* * *
42.8/16.9
* *
K Bottom Bracket Drop (cm/in) 1.2/0.5
* * *
1.2/0.5
* *
L Bottom Bracket Height (cm/in) 35.0/13.8
* * *
35.0/13.8
* *
M Fork Rake (cm/in) 4.0/1.6
* * *
4.0/1.6
* *
N Trail (cm/in) 9.5/3.8 9.5/3.8 9.4/3.7 9.3/3.7 9.6/3.8 9.5/3.8 9.5/3.8
STACK (cm) 584.755 585.257 585.757 609.806 584.252 584.755 585.257
REACH (cm) 384.365 415.788 441.268 461.837 369.014 384.365 415.788
