Cannondale PROPHET - Bb Fd Cable Guide; Chainstay Protector; Housing Guides & Cable Stops

120017.PDF
11
housing guides and
cable stops

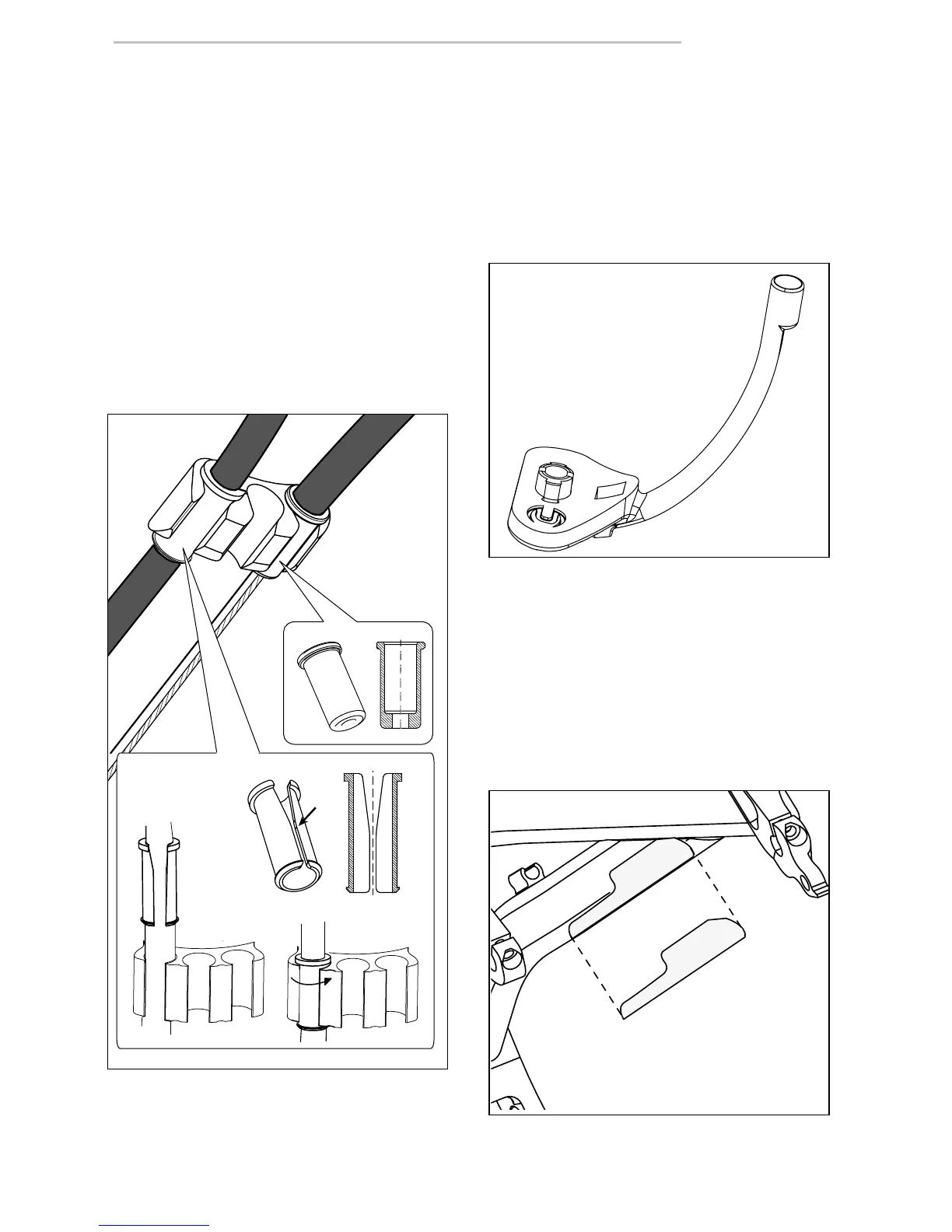

Lines and cables on your bike are routed
through frame guides using cable stops (1)
and /or cable thru guides (2).
Periodically, you should check to make sure
the stops and guides are in good condition
and seated properly in the frame guides.
For stops, make sure the stop is seated
securely in the frame guide and the housing
is fixed within the stop.
(a)
1
2
Cannondale
Kit # KF014/
(2 PK)
Cannondale
Kit # KF086/
(10 PK)
bottom bracket
front derailleur
cable guide
This snap in front derailleur cable guide is
mounted on the lower bottom bracket shell.
Cannondale
Kit # KF085/
chainstay protector
An adhesive chainstay protector is located
on the underside of the right chainstay. This
guard protects the chainstay from damage
caused by the chain. Check the condition
of the right chainstay protector periodically
and replace it when it is worn or missing.
Cannondale
Kit # KF078/
