Cannondale PROPHET - Hot Box Pivot

120017.PDF
7
Swingarm
T
O
R
S
I
O
N
LATERAL
VE
RT
ICAL
LATERAL
LATERA
L
3
1
2

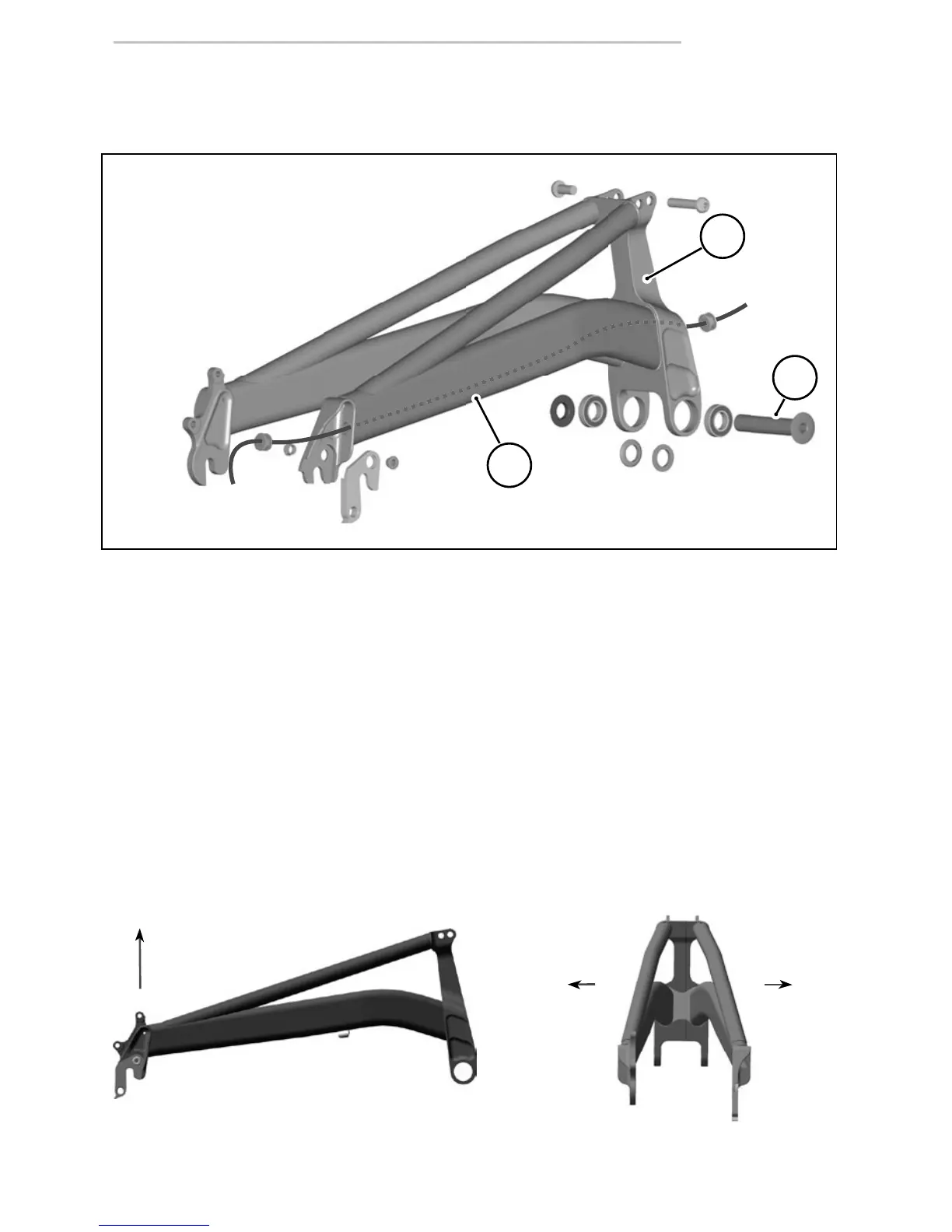

1. Chainstays - The custom-formed and tapered chainstays are
optomized for lateral stiffness. Tuned for vertical compliance, they
distribute stress evenly under extreme landing loads.
2. Hot Box Pivot - Constructed as a welded, Hollow-Core swingarm pivot. It
is designed for maximum stiffness and minimum lateral flex. It’s CNC -
forged hollow core provides a tremedous stiffness-to-weight ratio, boosting
stifness by up to 30% which prevents wagging and increases pedal efficiency.
The rear derailleur cable is routed internally through the Hot box and
within the chainstays, delivering a clean look and no ghost shifting.
3. Pivot Assembly - This assembly features a precision pivot
shaft and renewable sealed cartridge bearings.
VE
RT
ICAL
LATERAL
LATERAL
