Cannondale PROPHET - 12 mm Thru Axle & Derailleur Hanger; TIGHTENING ORDER = ABCD

18

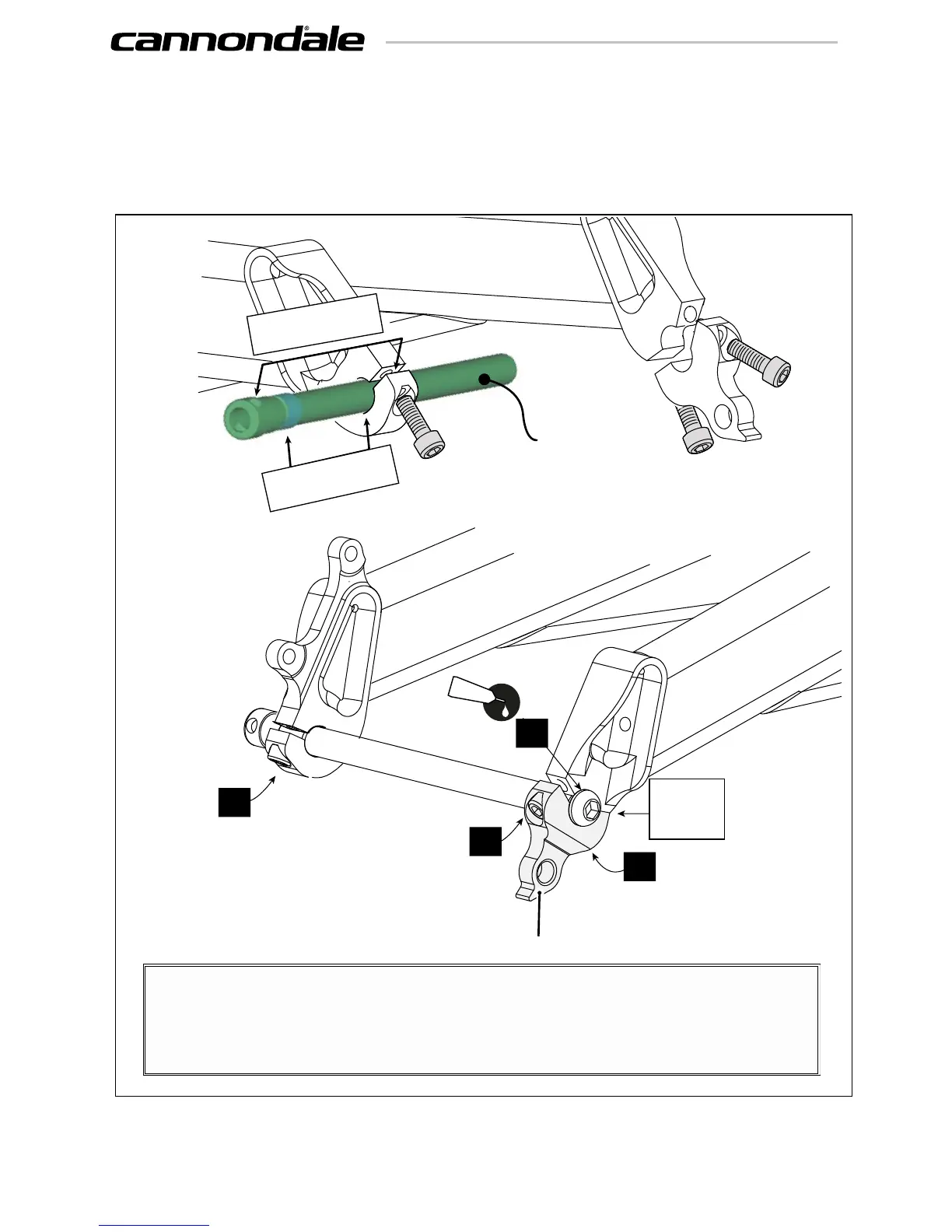

12 mm Thru Axle & Derailleur Hanger
Replacement kits are available for 12 mm Thru Axle type derailleur hangers. When install-
ing replacements, be sure to throughly clean and inspect all other parts. Do not install a
replacement hanger onto a damaged dropout.
2 = 5.0 N•m (44.2 In•Lbs), Loctite™242
3 = 12.0 N•m (106.0 In•Lbs)
C
A
D
B
2
2
1
2
3
Cannondale
Kit # KF077/
Cannondale
Kit # KF076/
262
NO
GAP
Be sure to follow the tightening order shown here; bring each fastener to final
torque before moving to the next.
TIGHTENING ORDER = ABCD
ALIGN OVAL
ALIGN
