Canon imageCLASS MF267dw - Removing the Contact Image Sensor (SADF Model)

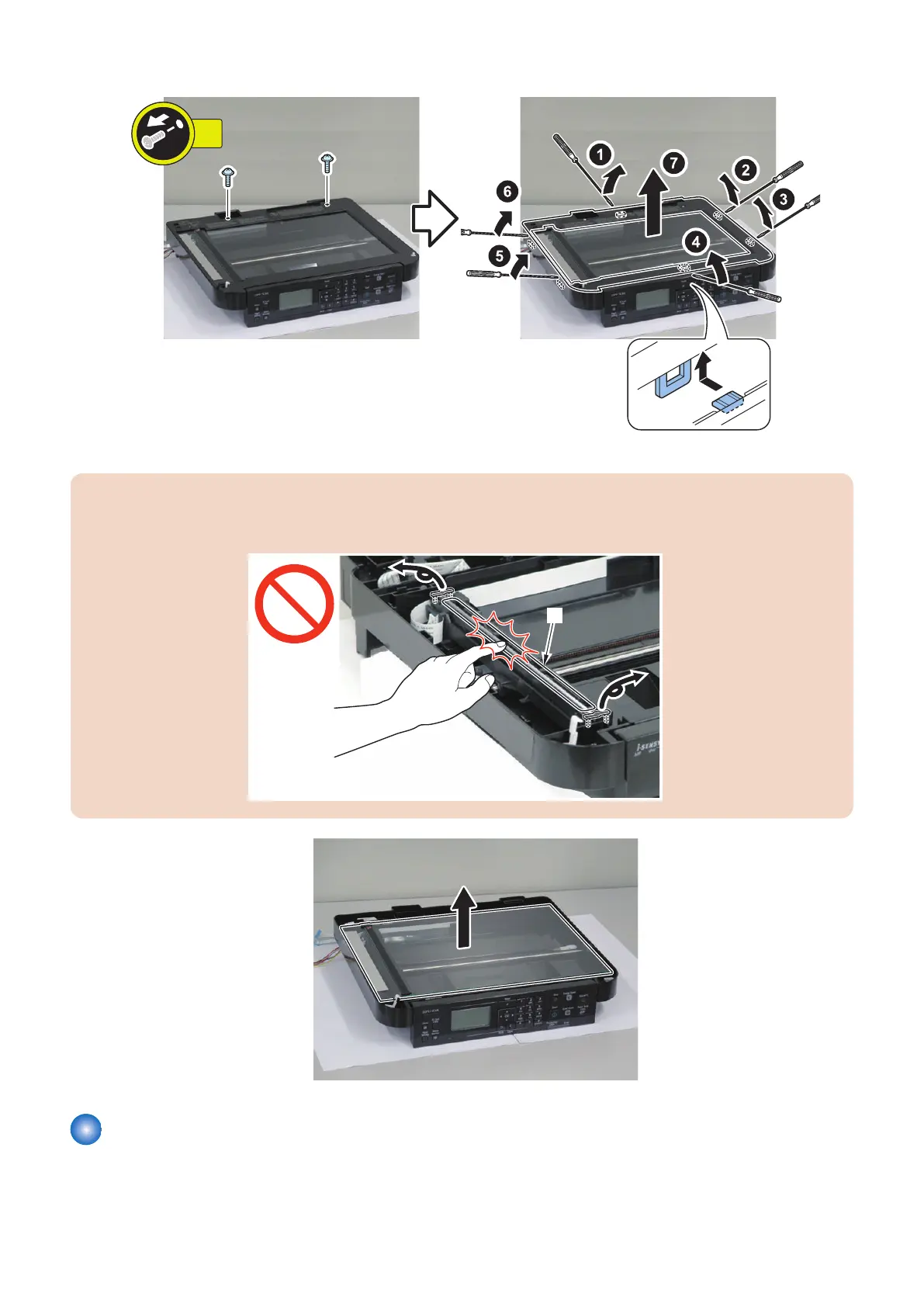

5.
2x
6.
CAUTION:
• Do not lose the 2 spacers of the Contact Image Sensor Unit.
• Do not touch the document reading part [A] of the Contact Image Sensor Unit.
[A]
Removing the Contact Image Sensor (SADF Model)
■ Preparation
1. “Removing the Cartridge” on page 77
4. Parts Replacement and Cleaning
148
