Parts Configuration

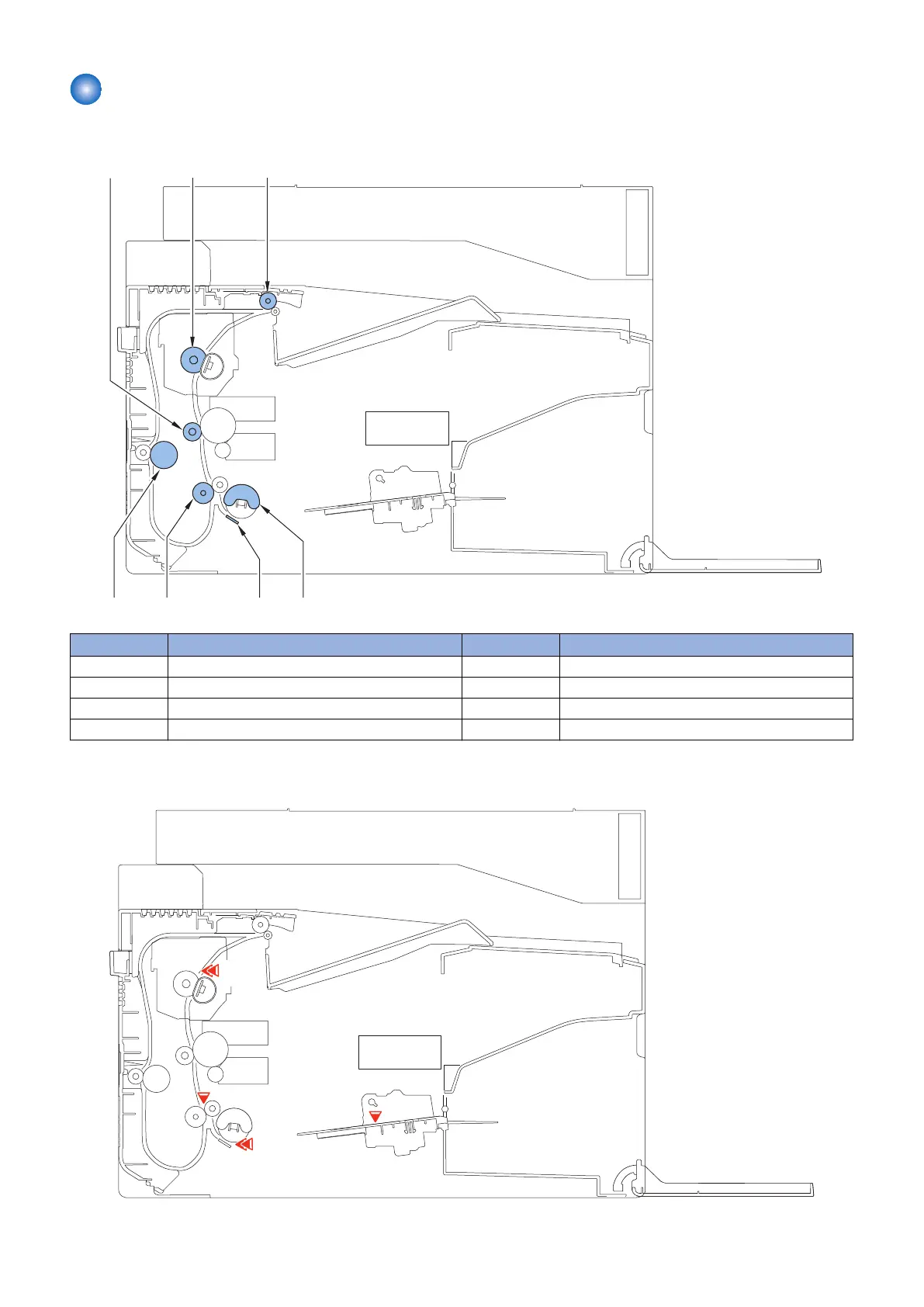

■ Layout Drawing of Rollers
[6][7] [4]
[3][1]
[5]
[2]
No. Name No. Name
[1] Transfer Roller [5] Separation Pad
[2] Pressure Roller [6] Feed Roller
[3] Delivery Roller [7] Duplex Roller
[4] Pickup Roller
■ Sensors Layout Drawing
PS2
PS1
PS3
PS5
PS4
PS10
